If you’ve ever tried to design a part that needs two materials or colors, you’ve probably come across both two shot injection molding and overmolding. At first glance, they sound almost the same—both let you combine different plastics into a single part. But the way they’re made, the cost structure, and the situations where each process makes sense are very different.
This confusion is common among engineers and sourcing teams. Choosing the wrong process can leave you with parts that cost too much, take too long to produce, or don’t perform as expected. That’s why it’s worth taking a closer look.
In this article, you’ll see exactly how two shot molding and overmolding differ, what each one does best, and how to decide which process is the right fit for your project.
What Is Two Shot Injection Molding?
Two shot injection molding—sometimes called 2K molding or dual-shot molding—is a process where two different plastics are injected into the same mold during one production cycle. Instead of molding one part, removing it, and then adding a second material later, both shots happen in a continuous sequence on the same machine.
The result is a single part with two integrated materials. You see this every day: a toothbrush handle with a rigid core and soft grip, an automotive button with icons molded in a contrasting color, or a medical housing with a built-in seal.
What makes two shot molding stand out is efficiency. Because both shots are completed in one cycle, you avoid secondary steps like manual assembly or adhesive bonding. That not only reduces labor but also improves precision and consistency across high-volume production.
How the Mold Handles the Transfer
The “hand-off” between the first and second shot is critical, and there are two main ways manufacturers achieve it:
- Rotating or sliding cores – The mold itself rotates or shifts the first shot into position for the second injection. This is fast and highly repeatable, making it ideal for large production runs. The trade-off is a higher upfront tooling cost, since these molds are more complex.
- Robotic transfer – A robotic arm physically moves the first shot into another cavity for the second injection. It’s slower, but more flexible for unusual part designs or smaller volumes. It also avoids the need for an expensive rotary mold.
In short, rotary molds deliver speed and efficiency at scale, while robotic transfer offers flexibility for niche or lower-volume projects. Choosing between them is one of the first big cost decisions you’ll make when planning a two shot molding project.
What Is Overmolding?
Overmolding is also a multi-material molding process, but the workflow is different from two shot molding. Instead of injecting both materials in one cycle, you start by molding a base part first. That part is then placed into another mold—sometimes manually, sometimes with automation—where the second material is injected around or on top of it.
The outcome looks similar: two materials combined in one part. For example, you might see a screwdriver handle with a rigid plastic core and a soft elastomer grip, or a consumer product with a secondary layer for color or texture.
The big difference is that overmolding is essentially a two-step process. That makes it slower than two shot molding, but it also makes it more flexible and less expensive to get started.
Why Overmolding Is Common in Low-Volume or Prototyping
- Lower tooling cost – You don’t need a specialized rotary mold or dual-shot machine. Standard injection molding equipment with a second tool is enough.
- More design flexibility – You can test different material combinations or design tweaks without re-engineering a complex two shot mold.
- Good for validation – If you’re still in the prototype or pilot run stage, overmolding lets you validate your design and performance before scaling up.
In short, overmolding gives you a practical way to combine materials when your volumes are small, your design is still evolving, or you’re not ready to commit to the higher investment of two shot molding.
Key Differences Between Two Shot Molding and Overmolding
On the surface, both processes deliver the same outcome: a part with two integrated materials. But the way you get there, the cost, precision, and the scalability are quite different.
Here’s a side-by-side comparison:
| Aspect | Two Shot Injection Molding | Overmolding |
| Process | Two materials injected sequentially in one mold and one machine cycle | Base part molded first, then placed into another mold for second injection |
| Mold/Equipment | Requires specialized rotary/transfer mold and dual-shot machine | Uses standard molding machines with multiple tools; no rotary mold needed |
| Cycle Efficiency | High – both shots done in a single automated cycle | Lower – two separate cycles, plus handling or transfer time |
| Upfront Cost | High – complex tooling design and build | Medium – separate but simpler tools |
| Unit Cost (Low Volume) | Expensive, tooling cost hard to absorb | Lower, more practical for prototypes and pilot runs |
| Unit Cost (High Volume) | Drops significantly with scale; highly cost-efficient | Higher due to extra labor/time, less competitive for mass production |
| Material Bonding | Stronger adhesion (materials bond while still warm/clean) | Weaker or more variable adhesion; depends on surface prep and cycle timing |
| Precision & Consistency | Excellent – tight tolerances and repeatability | Good but less consistent; more room for misalignment during transfer |
How to Decide Which Process Fits Your Project
Choose Two Shot Molding if…
- You expect high production volumes (hundreds of thousands or millions).
- You need tight tolerances and strong chemical bonds between materials.
- You want to eliminate assembly steps and maximize efficiency at scale.
Choose Overmolding if…
- You’re working on a prototype or small batch and need flexibility.
- Your design may still change, and you don’t want to commit to a complex mold.
- You want to test material combinations before scaling up.
In short, two shot molding is about efficiency and consistency at scale, while overmolding is about flexibility and lower initial investment. Knowing where your project sits on that spectrum is the key to making the right choice.
Advantages of Two Shot Molding
If your project is headed for large-scale production, two shot molding can give you clear advantages that go beyond aesthetics. It’s not just about making a part look good—it’s about reducing complexity, improving performance, and scaling efficiently.
1. Higher Efficiency at Scale
Because both shots are molded in one cycle, you eliminate secondary steps like manual assembly, adhesive bonding, or secondary molding runs. That means faster cycles and fewer operators needed. For products in the automotive industry, like dashboard switches or climate control knobs, this efficiency translates directly into lower cost per unit when you’re making millions of parts.
2. Stronger Material Bonding
Two shot molding creates a cleaner and stronger bond between materials because the second material is injected while the first shot is still warm and uncontaminated. This results in more reliable adhesion than you often get with overmolding. In medical device housings, for example, built-in elastomer seals stay intact under repeated sterilization cycles—a level of performance you can’t risk compromising.
3. Design Freedom and Multi-Functionality
This process lets you integrate hard and soft plastics, multiple colors, or even transparent and opaque sections into a single component. That’s why it’s so common in consumer electronics: think of a game controller with a rigid core, soft grips, and embedded buttons—all produced in one tool. The design possibilities go far beyond what traditional single-shot molding allows.
4. Consistency Across Production Runs
With a fully automated cycle and a single mold, parts stay within tight tolerances. You don’t deal with misalignment issues that can happen in manual or semi-automated overmolding. For industries where every millimeter matters, like medical instruments or precision electronic devices, that consistency is non-negotiable.
In short, two shot molding delivers speed, bonding strength, and design flexibility in one process. If your goal is to combine performance with efficiency at high volumes, this is the process that pays off.
Advantages of Overmolding
Overmolding may not match two shot molding in speed or bonding strength, but it has strengths of its own—especially when you’re working with smaller volumes or still refining your design.
1. Lower Upfront Investment
Overmolding doesn’t require a complex rotary mold or dual-shot machine. You can start with a standard injection molding setup and a second, simpler tool. That makes it far more cost-friendly at the beginning. If you’re producing a few thousand prototypes or market test units, overmolding helps you move forward without committing to six-figure tooling.
2. Greater Flexibility in Materials
Because the base part and the overmolded layer are molded separately, you’re not as limited by chemical compatibility. You can pair materials that might not bond perfectly in a two shot process, relying on surface prep or mechanical grip instead. This opens up more experimentation—something valuable in consumer product design, where you may want to test different looks and textures.
3. Ideal for Prototyping and Design Validation
Two shot molding locks you into a specific mold design. Overmolding, by contrast, lets you tweak your base part, try different overmolded features, or adjust the secondary material without overhauling the whole mold. This is why many companies use overmolding during the R&D phase—it allows faster design cycles and lower-risk iteration before investing in a high-end two shot mold.
4. Better Fit for Low-Volume Production
If your product isn’t expected to scale into hundreds of thousands of units, overmolding may remain the smarter choice. Think of specialty medical devices or low-volume industrial components, where performance matters but demand doesn’t justify a big tooling budget.
In short, overmolding is the more flexible, lower-risk option. It gives you room to experiment, validate your design, and deliver smaller runs without locking yourself into a high-cost mold too early.
Limitations of Each Process
Neither two shot molding nor overmolding is perfect. Each has clear trade-offs you need to evaluate before committing to a project.
Two Shot Molding Limitations
- High tooling cost – Rotary molds and dual-shot machines are expensive, often requiring a six-figure investment. For small or mid-volume projects, the cost is hard to justify.
- Longer development time – Designing and validating a two shot mold takes longer than a conventional tool. If you’re racing against a product launch deadline, that extra time can be a bottleneck.
- Material restrictions – Not every resin combination works. If the two plastics don’t chemically bond, you’ll need added features for mechanical interlock. Overlooking this often leads to poor adhesion.
- Failure example: We’ve seen consumer electronics housings where the soft elastomer grip separated after just weeks of use because the resin pairing wasn’t properly tested for compatibility.
Overmolding Limitations
- Slower cycle times – Because it’s a two-step process, overmolding naturally takes longer. Each part requires a transfer (manual or automated), which adds labor and reduces throughput.
- Bonding reliability – Adhesion can be weaker compared to two shot molding since the base part may cool, oxidize, or pick up contaminants before the second injection.
- Higher per-unit cost at scale – Overmolding works for small runs, but once you scale up, the labor and time make it less competitive than two shot molding.
- Failure example: In one automotive project, poor part alignment during the second molding step led to slight offsets in button geometry. Those fractions of a millimeter caused functional issues when the parts were assembled into dashboards.
In short, two shot molding is limited by its upfront cost and design complexity, while overmolding is limited by cycle time and bonding reliability. Knowing these pitfalls—and planning around them—helps you avoid costly surprises later.
How to Choose the Right Process for Your Project
The real question isn’t whether two shot molding or overmolding is “better.” It’s which one fits the stage and scale of your project. If you’re still in the early design phase, overmolding usually makes more sense. It’s faster to tool, easier to modify, and lets you experiment with different material combinations before you lock in an expensive two shot mold. Many teams we’ve worked with use overmolding for prototypes or pilot runs under 20,000 units—it gives them flexibility without tying up too much budget.
Two shot molding, on the other hand, shines once your design is stable and your production volumes climb. The upfront tooling is heavier, but the payback comes when you’re making hundreds of thousands—or even millions—of parts. In those situations, the stronger bonding, tighter tolerances, and elimination of secondary assembly steps save far more money than the mold costs. This is why you’ll see two shot molding everywhere in automotive interiors and medical housings, where consistency and scale are critical.
So, here’s the way to think about it: if you’re validating a new design or producing specialty parts in small batches, stick with overmolding. If you’re scaling up a product line and need efficiency and repeatability, invest in two shot molding. The right answer depends on where you are in your product journey.
Industry Use Cases
Automotive: High-Volume with No Room for Error
In the automotive world, scale is everything. A dashboard switch or climate control knob may be produced in the millions, and each one has to perform flawlessly for years. Two shot molding is the go-to here because it locks in icons, grips, and functional details in one automated cycle. The upfront tooling is steep, but the payback is undeniable when you eliminate assembly steps and guarantee consistency across massive production runs.
Consumer Electronics: Speed and Flexibility First
Electronics move fast. A startup releasing a new wearable can’t always commit to a six-figure two shot mold before they know the design will stick. Overmolding gives them the breathing room to experiment—different elastomer grips, surface finishes, or color accents—without tying up too much budget. If the product scales and demand grows, that’s when it makes sense to shift into two shot molding to bring unit costs down.

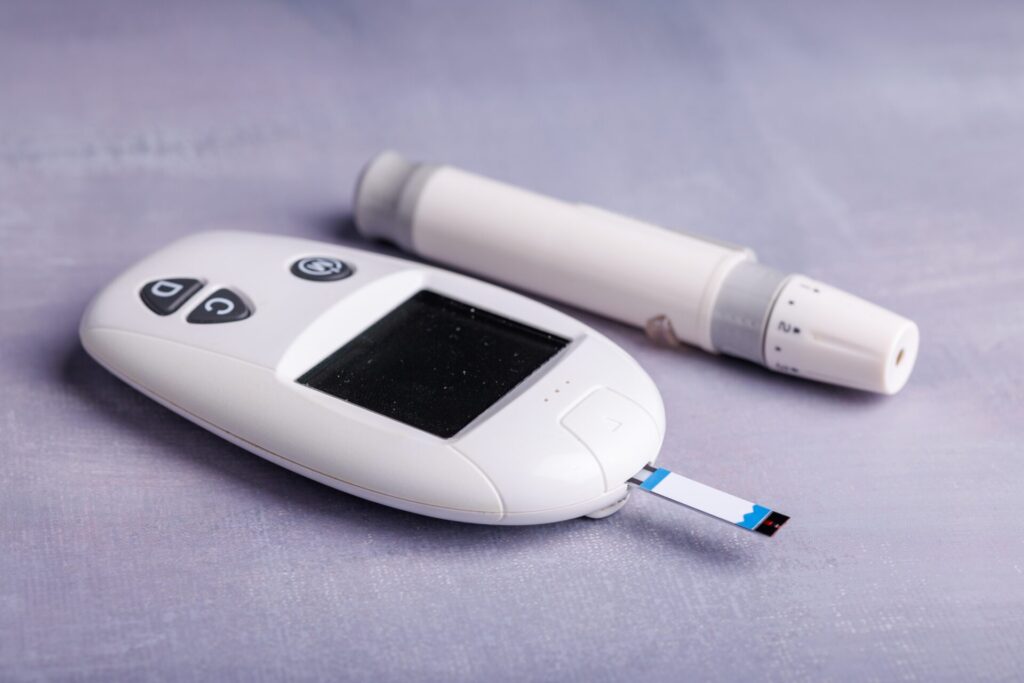

Medical Devices: Balancing Reliability with Volume
Medical applications highlight the trade-offs clearly. A handheld diagnostic tool might rely on two shot molding to integrate a soft elastomer seal directly into the housing—ensuring watertight integrity without secondary assembly. But low-volume surgical instruments often stick with overmolding, since the ability to tweak designs or use specialty materials matters more than shaving seconds off the cycle time. In this industry, the right process depends on whether reliability, flexibility, or compliance is the primary driver.
Conclusion
Two shot injection molding and overmolding often get compared as if one is better than the other. The truth is, it depends on what your project needs. If you’re chasing high-volume efficiency and long-term consistency, two shot molding usually delivers the best return. If you’re working on smaller batches, prototypes, or evolving designs, overmolding gives you the flexibility to move forward without heavy upfront investment.
If you’re weighing these two processes for your next part, don’t leave it to guesswork. Reach out to us for a design evaluation or project review—we’ll help you choose the process that saves you cost, time, and frustration in the long run.
FAQ
Is two shot molding more expensive than overmolding?
Yes, two shot molding is generally more expensive upfront than overmolding. The reason is tooling. A two shot mold is more complex and requires a specialized machine, so the initial investment can be two to three times higher than a standard mold. That’s why it’s hard to justify if you only need a small batch.
But the picture changes at scale. Once you’re producing hundreds of thousands of parts, two shot molding often becomes more cost-efficient per unit because you eliminate secondary steps like manual assembly or adhesive bonding. Overmolding stays cheaper at the beginning, but its per-part cost is higher over long production runs.
Can the same materials be used in both processes?
Yes — in many cases, the same materials can be used in both two shot molding and overmolding, but the way they bond makes a difference.
In two shot molding, the two plastics need to be chemically compatible, because the second material is injected immediately after the first while it’s still warm and clean. This allows them to fuse at the molecular level. Common pairings like PC + TPE or PP + TPE are often chosen for this reason.
In overmolding, the requirements are looser. Since the second shot happens in a separate cycle, you can sometimes combine materials that don’t naturally bond well, relying instead on mechanical interlocks or surface treatments to hold them together.
In short, you can use the same material pairs in both processes, but two shot molding demands stronger compatibility, while overmolding gives you a bit more flexibility.
Which process is better for prototyping?
For prototyping, overmolding is usually the better choice.
Here’s why: two shot molding requires a specialized mold and machine setup, which means a higher upfront investment and longer lead time. That cost is difficult to justify when you’re only producing a handful of parts to validate a design. Overmolding, on the other hand, can be done with standard injection molding equipment and simpler tooling. It allows you to test different material combinations, make design tweaks, and iterate quickly without committing to a complex two shot mold.
In short:
- Overmolding → flexible, lower-cost, faster for prototypes and small batches.
- Two shot molding → best reserved for when your design is finalized and you’re moving toward high-volume production.
How do I know if my product design is suitable for two shot molding?
You’ll usually know a product is a good fit for two shot molding once a few things line up.
First, your design has to be stable. If you’re still making big changes to the geometry, the investment in a complex two shot tool will feel like a gamble. But once your part is finalized and you’re confident it won’t need major revisions, the process starts to make sense.
Volume is another signal. Two shot molding carries a heavier tooling cost, so it only pays off when you plan to run large quantities. If you’re aiming for hundreds of thousands of units, the efficiency you gain in each cycle quickly outweighs the upfront expense. Smaller batches, on the other hand, often lean toward overmolding.
Materials also tell part of the story. Some plastics bond chemically when molded together, while others don’t. If your design depends on two materials working as one—say, a rigid body with a soft-touch grip—two shot molding is at its best. If bonding is questionable, you’ll need to rethink either the material choice or the process.
In short, two shot molding is suitable when your design is locked in, your volumes are high, and your materials are meant to work together. That’s when the higher initial investment turns into long-term savings and better-performing parts.
