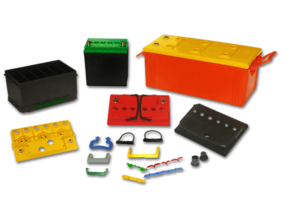

Battery Plastics
Advantages
What are our advantages in the Energy industry?
20 + Years Experience
TDL mould has been manufacturing plastic tools for automotive, medical device, and electronics for over 20 years.
Advanced Equipment
TDL factory is equipped with advanced mold manufacturing equipment and precision measuring instruments CMM.
On-Time Delivery
TDL schedule every mold projects manufacturing process very well, can guarantee on-time delivery for each production.
Professional Team
TDL mold design & engineering team has 34 skilled engineers to provide technical support for plastic mold making and plastic processing.
One-Stop Solution
TDL offers a one stop solution to meet customers all demands about plastic mould and customized plastic products manufacturing.
Good After-sales Service
TDL is responsible for quality of each mold, will sign mold quality warranty with customers for every tools.
Choose us for injection molding and get up to 100% mould cost refund!
What other services do we offer for the Energy industry?
Product Design
Our comprehensive product design services ensure that we work with our clients from the beginning stages to make improvements on all technical drawings, including 2D and 3D files, to ensure the best possible outcome for each project.
Mold Design
Our expert team utilizes state-of-the-art technology and innovative strategies to deliver top-quality mold designs that are optimized for efficient and effective production.
Rapid Prototyping
TDL utilizes rapid prototyping technologies such as 3D printing and CNC machining to create fast and accurate concept models, functional prototypes, and production-ready parts. Our team can work with a range of CAD files and produce parts in a variety of materials to suit your project needs.
3D Printing
TDL uses cutting-edge 3D printing technologies to create high-quality, low-volume plastic parts for prototyping and production. Our printers can produce complex geometries, intricate details, and custom textures and finishes. We can work with a variety of 3D file formats and offer a range of materials to choose from.
How do we control the quality of mold manufacturing
Quality is important to TDL mold manufacturing, it is also non-negotiable for clients.
TDL relies on high-quality plastic molds and injection molding products to obtain a very good reputation, trust and long-term cooperation with clients.
Incoming Material Inspection
All raw materials are verified for conformity upon receipt. Our Quality Control team inspect dimensions, hardness to ensure molds’ long service life.
Manufacturing Inspection
In the manufacturing process, measurement of each mold parts and the electrodes is essential. Only when the dimension of each part is confirmed will it enter the next step. The advantage of doing this is to spot any possible errors in advance, avoiding waste of time and money.
Finished Products and Shipment Inspection
Finished parts undergo final inspection by our Quality System Manager or shipping personnel prior to any shipment. All parts are visually inspected and are carefully packaged and compactly packaged to ensure their safe arrival to our customers at minimum cost.
Customer Complain Handling
Once our sales reps receive your complaints, our team of engineers will conduct a meeting for a solution within 48 hours.
FAQ's
Plastic molds are commonly used in the manufacturing of various components for solar energy systems due to their flexibility, cost-effectiveness, and ability to produce complex shapes. Some of the components that are made using plastic molds in solar energy systems include:

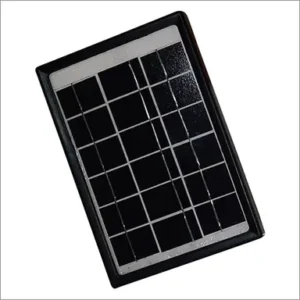

- Solar Panel Frames:
Image courtesy: https://www.tradeindia.com/products/3w-plastic-frame-solar-panel-c7844540.html
Solar panel frames provide structural support and protection for the solar panels. Plastic molds are used to create these frames using materials such as reinforced plastics or composites. These frames need to be designed for strength, durability, and resistance to UV radiation and weathering. The flexibility of plastic molds allows for intricate designs and easy integration of features like mounting holes and attachment points.

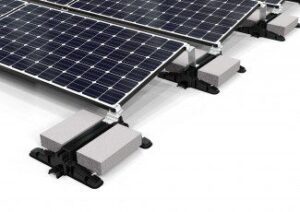

- Mounting and Racking Systems:
Image courtesy: https://preformed.com/au/solar/utility-scale/roof-mounts/power-max
Plastic molds are employed to manufacture mounting clips, brackets, and rails that hold solar panels securely in place on various surfaces. These components are designed to withstand mechanical stress, temperature fluctuations, and exposure to environmental elements. Plastic materials chosen for these components are often engineered to have high tensile strength and resistance to corrosion.

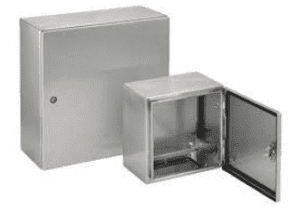

- Enclosures and Junction Boxes:
Image courtesy: https://www.coastpneumatics.com/wp-content/uploads/2020/06/hoffman-wp-03.pdf
Enclosures and junction boxes house sensitive electrical components and wiring connections within a solar energy system. Plastic molds enable the production of custom-designed enclosures with features like cable entry points, snap-fit lids, and seals to protect against moisture and dust. Plastic enclosures offer electrical insulation and are lightweight compared to metal alternatives.

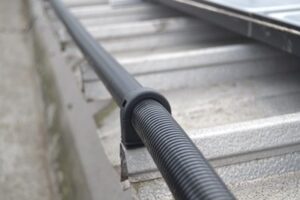

- Cable Management and Conduit Components:
Image courtesy: https://solarbuildermag.com/featured/conduit-tubing-solar-commercial-installation/
Plastic molds are used to create cable clips, clamps, and conduits that organize and protect wiring and cables within a solar installation. These components are designed to secure and route cables while preventing chafing and damage. Plastic cable management solutions are non-conductive, which enhances safety in electrical installations.

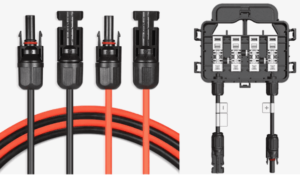

- Connection and Wiring Accessories:
Image courtesy: https://ae-solar.com/solar-panel-wiring-basics/
Connectors, plugs, and wiring accessories are crucial for establishing reliable electrical connections between solar panels, inverters, and other system components. Plastic molds allow for the creation of intricate connector designs with precision, ensuring secure connections while accommodating different cable sizes and configurations.

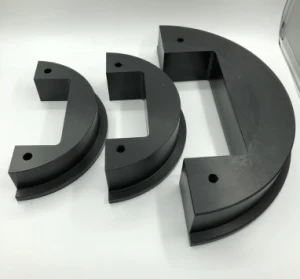

- Solar Tracker Parts:
Image courtesy: https://hongyueplasitc.en.made-in-china.com/product/EOrGsiSJXHWK/China-New-Arrival-Single-Axis-Solar-Tracking-System-Upe-Solar-Tracker-Plastic-Bearing-Solar-Tracker.html
In solar tracking systems, plastic molds can be used to manufacture components such as gear mechanisms, bearings, and housings. These parts enable solar panels to follow the sun's movement throughout the day, maximizing energy capture. Plastic materials with good mechanical properties are chosen to ensure the durability and smooth operation of these tracking systems.
- Reflectors and Concentrators:
In concentrated solar power (CSP) systems, plastic molds can produce reflective components that focus sunlight onto a receiver to generate heat. These components require precise shaping and reflective coatings. Plastic molds allow for the creation of complex curved shapes that optimize sunlight concentration.

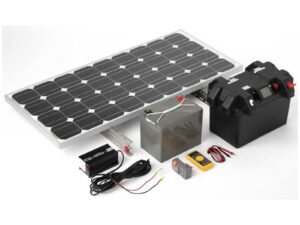

- Lightweight Solar Components:
Image courtesy: https://www.livfast.in/components-of-residential-solar-energy-system/
Portable solar chargers, lanterns, and other lightweight solar devices benefit from plastic molds, as they allow for compact and ergonomic designs. These molds facilitate the production of aesthetically pleasing and functional components that are easy to carry and use.

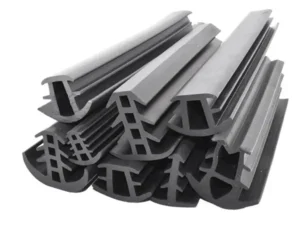

- Seals and Gaskets:
Image courtesy: https://www.shidarubber.com/solar-panel-seam-gaskets-solar-panels-ul-94-flame-resistant-epdm-rubber-gaskets-from-china-manufacturers/
Plastic molds are used to manufacture seals and gaskets that provide watertight and airtight seals in solar panel junction boxes and enclosures. These components prevent moisture infiltration and protect the internal components from environmental factors.
- Cooling and Ventilation Components:
Image courtesy: https://storables.com/articles/14-amazing-solar-attic-fan-for-2023/
Plastic molds can create ventilation grilles, ducts, and cooling channels for solar installations that require temperature management. These components aid in heat dissipation and airflow, preventing overheating and ensuring optimal system performance.
In all these applications, selecting the appropriate plastic material is essential to meet the specific requirements of each component, including mechanical strength, thermal resistance, UV stability, and environmental compatibility. The versatility of plastic molds contributes to the efficient and cost-effective manufacturing of a wide range of components used in solar energy systems.
Plastic molds play a significant role in enhancing the efficiency and durability of solar panels by enabling the production of components that are specifically designed to meet the requirements of modern solar energy systems. Here's how plastic molds contribute to these aspects:
Efficiency:
- Customized Designs:
Plastic molds allow for intricate and tailored designs that can be optimized for the specific solar panel model and installation scenario. For instance, solar panel frames created using plastic molds can be precisely shaped to accommodate the size and shape of the panel, maximizing the panel's exposure to sunlight.
- Weight Reduction:
Plastic components are inherently lighter than metals, making them ideal for reducing the overall weight of solar panels. This weight reduction simplifies transportation and installation, cutting down on labor and costs. Lighter solar panels are also easier to mount on various surfaces and structures.
- Solar Tracking Systems:
Plastic molds enable the creation of components required for solar tracking systems, which improve energy efficiency by ensuring panels are always facing the sun. Precision-engineered plastic components in tracking mechanisms offer low friction, reducing wear and tear and improving the accuracy of tracking.
- Optical Components:
Concentrated solar power (CSP) systems use optical components to concentrate sunlight onto a focal point. Plastic molds allow for intricate shapes and designs that optimize light concentration. These components contribute to higher energy conversion efficiency by maximizing the amount of sunlight focused onto the receiver.
- Integrated Features:
Plastic molds facilitate the integration of features like cable management systems, junction boxes, and connectors directly into solar panel components. This integration enhances efficiency by reducing energy losses due to poor connections, minimizing shading, and ensuring optimal wiring layouts.
Durability:
- Corrosion Resistance:
Unlike metals, plastic components are resistant to corrosion. This makes them highly suitable for outdoor solar installations exposed to rain, humidity, and other environmental elements. Corrosion-resistant plastic components have a longer lifespan, reducing the need for frequent maintenance and replacements.
- UV Stability:
Solar panels are exposed to intense UV radiation over their lifetime. Plastics can be formulated to have excellent UV stability, protecting components from degradation, discoloration, and cracking caused by prolonged exposure to sunlight. This extends the life of the panels and ensures consistent performance.
- Weather Resistance:
Plastic components are designed to withstand a wide range of weather conditions, including extreme temperatures, from freezing cold to scorching heat. Unlike some metals that may expand or contract significantly under temperature fluctuations, plastics maintain their structural integrity.
- Impact Resistance:
Some plastic materials are engineered to have high impact resistance, making them capable of absorbing shocks and impacts without damage. Frames, enclosures, and protective covers made from impact-resistant plastics shield the delicate components of solar panels from potential harm, extending their lifespan.
- Longevity:
Quality plastic components, created using precision molds and well-chosen materials, can offer a service life that rivals or surpasses traditional metal components. With proper engineering and material selection, plastic components can withstand years of exposure to outdoor conditions.
- Sealing and Insulation:
Plastic enclosures and junction boxes provide effective sealing and insulation for sensitive electronics and wiring. This prevents moisture infiltration, dust accumulation, and the potential for electrical shorts. Effective sealing prolongs the life of the components and ensures consistent electrical performance.
In conclusion, plastic molds enhance solar panel efficiency by enabling customized designs, weight reduction, integration of features, and optimization of optical components. They contribute to durability through corrosion resistance, UV stability, weather resistance, impact resistance, and the ability to provide effective sealing and insulation. These combined advantages result in longer-lasting, high-performance solar panels that can endure a variety of environmental challenges.

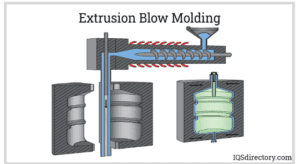

Image courtesy: https://www.xometry.com/resources/injection-molding/plastic-injection-molding-materials/
Plastic molds used for manufacturing solar energy components are typically made from materials that offer a balance of durability, heat resistance, and dimensional stability. These materials should be able to withstand the high temperatures and pressures involved in the injection molding process while maintaining the required precision and quality for producing solar energy components. Some commonly used materials for plastic molds in the solar energy industry include:
- Polyethylene (PE):
- Description: Polyethylene is a versatile thermoplastic known for its simple molecular structure. It comes in different forms, including high-density polyethylene (HDPE) and low-density polyethylene (LDPE), with varying mechanical properties.
- Characteristics:
- HDPE is strong, rigid, and resistant to chemicals and moisture.
- LDPE is more flexible and has good impact resistance.
- Applications in Solar Components:
- HDPE is used for frames, enclosures, and structural components due to its durability and resistance to UV radiation and weathering.
- LDPE is suitable for cable management systems, grommets, and flexible components.
- Polypropylene (PP):
- Description: Polypropylene is a widely used thermoplastic characterized by its high tensile strength and resistance to acids and bases.
- Characteristics:
- PP has excellent chemical resistance and a relatively low density.
- It maintains its mechanical properties at higher temperatures compared to PE.
- Applications in Solar Components:
- PP is used for creating junction boxes, enclosures, and brackets in solar systems due to its toughness and ability to withstand outdoor conditions.
- Polyvinyl Chloride (PVC):
- Description: Polyvinyl chloride is a synthetic thermoplastic polymer with a versatile range of applications.
- Characteristics:
- PVC offers excellent electrical insulation properties and is self-extinguishing.
- It can be formulated with UV stabilizers to resist degradation from sunlight.
- Applications in Solar Components:
- PVC is used for cable insulation, conduit systems, and outdoor enclosures due to its flame resistance and weather resistance.
- It's suitable for both rigid and flexible components.
- Polycarbonate (PC):
- Description: Polycarbonate is a transparent thermoplastic known for its high impact resistance and optical clarity.
- Characteristics:
- PC offers exceptional mechanical strength and can withstand a wide temperature range.
- It is highly resistant to UV radiation and maintains its transparency over time.
- Applications in Solar Components:
- PC is used for creating transparent protective covers, lenses, and light-guiding components that require both visibility and protection.
- Polymethyl Methacrylate (PMMA, Acrylic):
- Description: Polymethyl methacrylate is a transparent thermoplastic known for its optical clarity and weather resistance.
- Characteristics:
- PMMA offers excellent light transmission and can be UV stabilized.
- It has a good balance of mechanical properties and can be easily molded.
- Applications in Solar Components:
- PMMA is used for lenses, light-guiding components, and transparent enclosures where optical clarity and weather resistance are essential.
- Polyamide (PA, Nylon):
- Description: Polyamide is a versatile thermoplastic known for its high tensile strength and durability.
- Characteristics:
- PA offers good impact resistance, chemical resistance, and dimensional stability.
- It is available in various grades with different properties.
- Applications in Solar Components:
- PA is used for creating cable clips, brackets, and connectors that require strength and durability.
- It can withstand mechanical stress and exposure to environmental elements.
- Acrylonitrile Butadiene Styrene (ABS):
- Description: ABS is a popular thermoplastic known for its balanced combination of strength, impact resistance, and affordability.
- Characteristics:
- ABS offers good mechanical properties and can be easily molded and extruded.
- It has moderate chemical resistance and can withstand moderate temperatures.
- Applications in Solar Components:
- ABS is used for creating durable enclosures, frames, and brackets due to its toughness and ability to withstand outdoor conditions.
- Polysulfone (PSU) and Polyethersulfone (PESU):
- Description: PSU and PESU are high-performance thermoplastics known for their excellent thermal stability and resistance to chemicals.
- Characteristics:
- PSU and PESU offer high-temperature resistance and maintain their mechanical properties at elevated temperatures.
- They have good dimensional stability and low creep.
- Applications in Solar Components:
- PSU and PESU are used for components that require resistance to high temperatures, such as connectors, insulators, and enclosures near heat sources within solar systems.
- Polymethylpentene (PMP):
- Description: PMP is a transparent thermoplastic that offers a unique combination of properties, including low density and excellent electrical insulation.
- Characteristics:
- PMP has good chemical resistance and can maintain its properties in a wide temperature range.
- It has low moisture absorption and good dimensional stability.
- Applications in Solar Components:
- PMP is used for creating transparent enclosures, light covers, and lenses in solar panels and lighting systems.
- Polycarbonate (PC) Blends:
- Description: PC blends are formulated by combining polycarbonate with other polymers to achieve specific properties.
- Characteristics:
- PC blends offer a balance of properties, combining the impact resistance of PC with the characteristics of the other polymer.
- These blends can be tailored for enhanced toughness, chemical resistance, or flame retardancy.
- Applications in Solar Components:
- PC blends are used for creating components that require a combination of mechanical strength and other specific properties, such as flame-resistant enclosures.
- Epoxy Resins:
- Description: Epoxy resins are thermosetting polymers known for their excellent adhesion, chemical resistance, and electrical insulation properties.
- Characteristics:
- Epoxy resins undergo a curing process, resulting in strong and durable components.
- They have high thermal stability and good dielectric properties.
- Applications in Solar Components:
- Epoxy resins are used for encapsulating solar cells, creating protective coatings, and ensuring electrical insulation in critical areas of solar panels and electrical systems.
- Metal-Plastic Hybrids:
- Description: Metal-plastic hybrids combine the advantages of both plastic and metal materials.
- Characteristics:
- These hybrids often involve plastic overmolding onto metal inserts, creating components with mechanical strength and enhanced functionality.
- The metal inserts provide robustness and threaded connections, while plastic enhances insulation and customization.
- Applications in Solar Components:
- Metal-plastic hybrids are used for components requiring strong connections, such as connectors, structural elements, and threaded parts within solar systems.
The selection of these materials depends on the specific requirements of each solar energy component, including mechanical properties, thermal stability, chemical resistance, and electrical characteristics. Manufacturers strategically choose materials to achieve optimal performance, longevity, and durability, contributing to the efficiency and reliability of solar panel systems.
The design process of a plastic mold for a solar energy component involves several steps to ensure the creation of a functional, efficient, and durable component that meets the specific requirements of solar energy systems. Here's an overview of how the design process typically works:
- Requirement Analysis:
- Engage with stakeholders to gather in-depth requirements for the solar energy component. Understand its intended purpose, functionality, target environment, and specific performance expectations.
- Define technical specifications, such as mechanical properties, chemical resistance, UV stability, electrical insulation, and regulatory compliance.
- Conceptual Design:
- Brainstorm and sketch multiple design concepts that align with the component's requirements. Consider factors like form, size, shape, and potential features.
- Explore innovative ideas that optimize the component's integration into the larger solar energy system.
- Material Selection:
- Evaluate various polymer materials based on their properties, including tensile strength, impact resistance, thermal conductivity, UV stability, and cost.
- Choose a material that aligns with the component's function and the environmental conditions it will face, ensuring long-term reliability.
- Detailed Design:
- Utilize Computer-Aided Design (CAD) software to create a detailed and precise digital model of the solar energy component. Define exact dimensions, tolerances, surface finishes, and any intricate geometries.
- Mold Design:
- Develop the mold design that will shape the plastic material into the desired component. Determine the number of cavities in the mold based on production volume requirements.
- Design the gating and runner system to ensure uniform filling of the mold and minimize defects like air entrapment and weld lines.
- Plan the ejection system, incorporating mechanisms such as ejector pins, plates, or sleeves that facilitate easy removal of the molded part.
- Draft Analysis:
- Perform draft analysis to determine suitable draft angles for different surfaces of the component. Ensuring proper draft angles aids in smooth ejection from the mold without distortion.
- Mold Flow Analysis (Optional):
- Conduct advanced simulations to analyze how molten plastic will flow through the mold during injection. Identify potential issues like flow imbalances, air traps, or undesirable material behavior.
- Optimize the gating and runner system to achieve uniform filling and reduce the likelihood of defects.
- Tooling Design:
- Design the mold's physical tooling, including the mold base, core, cavity, inserts, and cooling channels. Consider factors like parting lines, alignment features, and ease of maintenance.
- Optimize the cooling system layout to achieve consistent and efficient cooling of the plastic material.
- Prototyping:
- Build a prototype mold using rapid prototyping techniques such as 3D printing. Test the prototype mold with the chosen plastic material to verify design integrity and identify potential issues.
- Testing and Validation:
- Produce prototype components using the prototype mold and subject them to real-world conditions. Test for aspects like dimensional accuracy, mechanical performance, thermal stability, and resistance to environmental factors.
- Gather data from testing to refine the mold design and address any identified shortcomings.
- Final Design Refinement:
- Incorporate feedback from testing and validation into the mold design. Make necessary adjustments to enhance component functionality, durability, and manufacturability.
- Manufacturing the Mold:
- Utilize precision manufacturing techniques, such as CNC machining and EDM, to fabricate the final mold components with high accuracy and quality.
- Component Production:
- Use the completed mold to inject molten plastic into the cavities. Control injection parameters like temperature, pressure, and cooling time to ensure consistent and defect-free production.
- Quality Control:
- Implement strict quality control processes to inspect and test the molded components for adherence to specifications. Utilize measurement tools, visual inspections, and mechanical testing to verify quality.
- Deployment and Monitoring:
- Integrate the molded solar energy components into the solar system. Monitor their performance over an extended period to assess durability, efficiency, and resistance to environmental factors.
Throughout the design process, interdisciplinary collaboration among design engineers, material specialists, mold makers, quality control teams, and end-users is critical. Iterative design iterations and thorough testing ensure the final plastic mold design produces high-quality solar energy components that meet or exceed expectations and contribute positively to the overall solar energy system.
Designing a plastic mold for a solar energy component involves several key considerations to ensure the functionality, efficiency, and durability of the final product. Here are the primary factors that should be taken into account during the mold design process:
- Component Functionality:
- Understand the exact role and function of the solar energy component within the larger system. This includes its physical interaction with other components, its electrical connections, and its overall impact on the system's efficiency.
- Ensure that the mold design captures all the necessary features and dimensions required for the component to fulfill its intended purpose.
- Material Selection:
- Carefully choose a plastic material that aligns with the component's functional requirements, environmental conditions, and expected lifespan.
- Consider factors such as the material's mechanical properties (tensile strength, impact resistance), chemical resistance, UV stability, electrical conductivity, and cost-effectiveness.
- Geometry and Draft Angles:
- Design the component's geometry with an understanding of how it will be demolded from the mold.
- Incorporate appropriate draft angles to facilitate smooth ejection, preventing damage to the component and ensuring consistent production.
- Mold Cavities and Runners:
- Determine the number of cavities in the mold based on production volume needs. More cavities can increase production efficiency but may complicate mold design and maintenance.
- Design runners and gating systems that allow for even distribution of molten plastic, minimizing the risk of defects like short shots or sink marks.
- Cooling System:
- Implement an effective cooling system with strategically placed cooling channels within the mold.
- Proper cooling enhances component quality, reduces cycle times, and prevents warping by ensuring uniform cooling of the plastic.
- Ejection Mechanism:
- Design an ejection system that enables easy, consistent, and safe removal of components from the mold.
- Ejector pins or plates should be positioned strategically to avoid causing damage or cosmetic defects on the component's surface.
- Tolerances and Surface Finishes:
- Define tolerances for critical dimensions to ensure consistent fit, form, and function of the component.
- Specify required surface finishes to achieve the desired appearance, texture, and functional characteristics.
- Mold Tooling Durability:
- Choose durable materials for the mold tooling to withstand the stresses of repeated molding cycles.
- Consider factors like wear resistance, thermal expansion, and fatigue resistance to ensure the mold's longevity.
- Alignment and Assembly:
- Design the mold with alignment features that ensure precise positioning and assembly of mold components.
- Accurate alignment reduces the risk of defects caused by misaligned mold halves.
- Parting Lines and Seams:
- Carefully determine the parting lines where the mold will split into halves.
- Minimize visible seams and parting lines on the component's surface to enhance aesthetics and avoid potential weak points.
- Venting and Gas Traps:
- Incorporate venting channels or grooves in the mold to allow air and gases to escape during injection.
- Proper venting prevents issues like trapped air pockets, voids, or burn marks on the component's surface.
- Environmental Considerations:
- Account for the component's exposure to various environmental conditions such as UV radiation, temperature fluctuations, moisture, and chemical exposure.
- Choose materials and design features that withstand these conditions without compromising performance.
- Quality Control and Testing:
- Design the mold with features that allow for easy visual inspection and quality control during and after production.
- Consider incorporating features that facilitate testing and validation of the component's performance, such as access points for sensors or test equipment.
- Sustainability and Recycling:
- Embrace sustainable design practices by minimizing material waste and optimizing the use of resources during both mold production and component molding.
- Consider the eventual recycling or disposal of the component and mold materials.
By meticulously addressing these key considerations, the design process for a plastic mold for a solar energy component can yield a high-quality, reliable, and efficient component that contributes positively to the overall performance of solar energy systems.
Ensuring the quality of a plastic mold for solar energy components is crucial to producing reliable and efficient components that meet performance expectations. Quality control measures should be integrated throughout the design, manufacturing, and testing phases. Here's how to ensure the quality of a plastic mold for solar energy components:
- Design Phase:
- Simulation and Analysis: Conduct mold flow simulations to predict how the plastic material will flow, cool, and solidify within the mold. Identify potential issues like air traps, weld lines, and shrinkage that could affect component quality.
- Tolerances and Draft Angles: Define precise tolerances for critical dimensions and incorporate appropriate draft angles to ensure smooth ejection. This prevents dimensional variations and demolding difficulties.
- Material Selection:
- Material Testing: Choose a plastic material that has undergone thorough testing for its mechanical, thermal, and UV stability properties. Use reputable suppliers to ensure consistent material quality.
- Mold Fabrication:
- Precision Machining: Ensure that the mold is fabricated with high precision using advanced machining techniques. Accurate mold dimensions and proper surface finishes are critical for consistent component quality.
- Quality Materials: Use high-quality mold materials that resist wear, heat, and corrosion to ensure longevity and maintain dimensional stability.
- Cooling System:
- Efficient Cooling: Design cooling channels to provide even and efficient heat dissipation. Proper cooling prevents warping, shortens cycle times, and ensures uniform component quality.
- Ejection Mechanism:
- Ejector System: Design and test the ejection system to ensure that it releases components without causing damage. Adjust ejector pin placements and forces as needed.
- Manufacturing Process:
- Process Control: Implement strict process controls during injection molding. Monitor parameters such as temperature, pressure, and injection speed to achieve consistent results.
- Visual Inspection: Regularly inspect molded components visually for defects such as sink marks, flash, or warping.
- Quality Control Testing:
- Dimensional Inspection: Measure key dimensions of the molded components against design specifications using precision measurement tools.
- Visual Inspection: Inspect components for surface defects, color variations, and inconsistencies in texture or finish.
- Functional Testing: Conduct functional tests to ensure components meet performance requirements. For solar energy components, this may involve electrical testing, UV exposure, and temperature cycling.
- Prototyping and Validation:
- Prototype Testing: Test prototypes produced using the mold for fit, form, and function. Identify any design flaws or manufacturing issues early in the process.
- Continuous Improvement:
- Feedback Loop: Establish a feedback loop between design, manufacturing, and testing teams to address any issues promptly and implement improvements.
- Data Analysis: Collect and analyze data from quality control tests to identify trends, patterns, and potential areas for improvement.
- Training and Expertise:
- Skilled Workforce: Ensure that the personnel involved in mold design, manufacturing, and quality control are trained and experienced in their respective roles.
- Quality Standards: Adhere to industry standards and best practices in mold design and injection molding to ensure consistent quality.
- Documentation and Traceability:
- Record Keeping: Maintain detailed records of design specifications, material specifications, manufacturing parameters, and quality control results.
- Traceability: Establish a traceability system that allows tracking of components back to their specific molds, materials, and production batches.
- Supplier Management:
- Material Suppliers: Work closely with trusted material suppliers to ensure the consistent quality of raw materials.
- Mold Fabrication: Collaborate with reputable mold fabrication shops that adhere to strict quality control practices.
- Audits and Inspections:
- Periodic Audits: Conduct regular audits of the manufacturing process, mold maintenance, and quality control procedures to ensure compliance with standards.
- Third-Party Inspections: Engage third-party experts for independent assessments of mold design, fabrication, and component quality.
By following these comprehensive measures, manufacturers can ensure that the plastic mold used for solar energy components consistently produces high-quality, durable, and efficient parts that contribute to the reliability and performance of solar energy systems.
Designing plastic molds for solar energy components involves various cost factors that impact the overall project budget. Careful consideration of these factors is essential to ensure cost-effective mold design without compromising on quality and functionality. Here are the key cost factors in plastic mold design for solar energy components:
- Material Selection:
- Material Type: The choice of plastic material affects both material and processing costs. High-performance materials may offer superior properties but can be more expensive.
- Material Quantity: Calculate the amount of plastic material required for the component's size and complexity, considering waste, runners, and sprues.
- Mold Complexity:
- Number of Cavities: More cavities can increase production efficiency but may lead to higher initial mold fabrication costs.
- Intricate Features: Complex geometries, undercuts, or intricate textures may require specialized tooling, adding to manufacturing complexity and cost.
- Tooling and Mold Fabrication:
- Mold Type: Different mold types (e.g., single-cavity, multi-cavity, family mold) have varying fabrication costs. Multi-cavity molds can lead to higher upfront expenses but offer cost savings per part.
- Mold Material: The choice of mold material impacts durability, maintenance, and manufacturing costs. Higher-grade materials can withstand more cycles but may be more expensive.
- Machining Precision: High-precision machining techniques yield accurate molds but can increase fabrication costs.
- Cooling System Design:
- Cooling Channel Complexity: Designing complex cooling channels may enhance component quality but can extend tooling fabrication time and costs.
- Conformal Cooling: Implementing advanced conformal cooling systems may reduce cycle times and improve part quality, but may involve additional engineering and manufacturing expenses.
- Ejection Mechanism:
- Ejector Type: Choosing the appropriate ejector system (e.g., pins, sleeves, plates) affects mold design complexity and costs.
- Ejector Plate Actuation: Automated or hydraulic ejector plate systems can enhance efficiency but come with higher upfront investment.
- Prototyping and Testing:
- Prototyping Materials: The choice of prototype material for test samples or initial production runs contributes to prototyping costs.
- Testing and Validation: Costs associated with testing components for performance, durability, and quality assurance are essential for ensuring proper functionality.
- Quality Control Measures:
- Inspection and Testing: Budget for equipment, personnel, and resources required for dimensional and visual inspection, as well as functional testing of molded components.
- Documentation: Maintain detailed records of quality control procedures and testing results, which may involve administrative costs.
- Environmental Considerations:
- Material Sustainability: Opting for environmentally friendly and sustainable materials may have higher initial costs but align with eco-conscious initiatives.
- Recyclability: Consider designing components and molds for ease of recycling, which may involve additional design and material selection considerations.
- Labor and Expertise:
- Skilled Workforce: Highly skilled engineers, designers, and technicians are necessary for mold design, fabrication, testing, and quality control, contributing to labor costs.
- Maintenance and Repairs:
- Mold Maintenance: Regular maintenance and potential repairs to the mold over its lifecycle ensure consistent component quality but may incur ongoing costs.
- Tool Longevity and Warranty:
- Mold Longevity: Longer-lasting molds can amortize their initial cost over a greater number of production cycles, offering cost savings in the long run.
- Warranty and Support: Factor in any warranty or support agreements with mold manufacturers to address potential issues or repairs.
- Supplier Relationships:
- Material Suppliers: Building strong relationships with reliable material suppliers may lead to bulk discounts or favorable pricing agreements.
- Mold Fabricators: Establishing long-term partnerships with reputable mold fabrication shops can result in cost savings through shared expertise and streamlined processes.
- Regulatory Compliance:
- Testing and Certification: Costs related to obtaining necessary certifications or compliance with industry standards should be considered.
- Scalability and Volume:
- Production Volume: Production volume affects economies of scale. Higher volume production can justify higher upfront mold costs by spreading them across more parts.
By carefully evaluating and optimizing these cost factors, manufacturers can develop a plastic mold design that balances quality, functionality, and affordability, ultimately contributing to the success of solar energy components and systems.
The choice of plastic molding technique significantly influences the properties of a solar energy component, including its mechanical characteristics, surface finish, dimensional accuracy, production speed, and cost. Different molding techniques have distinct advantages and limitations that can impact the overall performance and quality of the component. Here's how the choice of plastic molding technique affects the properties of a solar energy component:
- Injection Molding:
Image courtesy: https://en.wikipedia.org/wiki/Injection_moulding
- Mechanical Properties: Injection-molded components generally exhibit good mechanical properties due to uniform material distribution and controlled cooling. This is crucial for solar components that require structural integrity and load-bearing capabilities.
- Surface Finish: Injection molding offers a wide range of surface finishes, from smooth to textured, depending on mold design and material. This can influence the component's appearance and resistance to environmental factors.
- Dimensional Accuracy: Injection molding provides high dimensional accuracy, ensuring consistent part-to-part dimensions. This accuracy is essential for solar energy components that need precise alignment and compatibility.
- Production Speed: Injection molding is suitable for high-volume production, providing relatively fast cycle times once the mold is set up. This can meet the demands of large-scale solar projects.
- Cost Considerations: While injection molding may have higher upfront tooling costs, it can lead to cost savings in large-volume production due to efficient cycle times and consistent quality.
- Compression Molding:
Image courtesy: https://www.martins-rubber.co.uk/blog/advantages-and-disadvantages-of-compression-moulding/
- Mechanical Properties: Compression-molded components can have excellent mechanical properties due to controlled pressure and temperature during molding. This makes them suitable for load-bearing and structural solar components.
- Surface Finish: Surface finishes may vary based on mold design and material, but they generally lean toward textured finishes. Additional post-molding operations may be needed for smoother surfaces.
- Dimensional Accuracy: Compression molding can provide good dimensional accuracy, but it may be less precise compared to injection molding due to the compression process.
- Production Speed: Cycle times for compression molding are typically longer than injection molding, making it more suitable for low- to medium-volume production.
- Cost Considerations: Compression molding may have lower upfront tooling costs compared to injection molding, but production speed and efficiency may impact overall costs.
- Thermoforming:
Image courtesy: https://www.iqsdirectory.com/articles/vacuum-forming/thermoforming.html
- Mechanical Properties: Thermoformed components may have slightly reduced mechanical properties compared to injection or compression molding due to the lower pressure and temperature used.
- Surface Finish: Thermoforming can provide a range of surface finishes, including textured and glossy. The choice of material and post-processing methods can influence surface appearance.
- Dimensional Accuracy: Thermoforming offers moderate dimensional accuracy, suitable for components where tight tolerances are not critical.
- Production Speed: Thermoforming is relatively fast, making it suitable for both low- and medium-volume production. It is advantageous for producing larger, flat solar panels.
- Cost Considerations: Thermoforming often has lower tooling costs and shorter lead times, making it cost-effective for medium-volume runs.
- Extrusion Molding:
Image courtesy: https://adrecoplastics.co.uk/extrusion-moulding/
- Mechanical Properties: Extrusion-molded components may have lower mechanical properties compared to injection or compression molding due to the continuous process and limited cooling time.
- Surface Finish: Surface finish is usually smoother on one side due to contact with the mold. Additional post-processing may be required for uniform appearance.
- Dimensional Accuracy: Extrusion offers good dimensional consistency for linear and profiled shapes but may have limitations for complex geometries.
- Production Speed: Extrusion is suitable for high-volume continuous production of linear or profiled components, making it ideal for components like solar panel frames.
- Cost Considerations: Extrusion can be cost-effective for producing long and continuous components, but the mechanical properties may need to be balanced against the cost savings.
- Rotational Molding:
Image courtesy: https://www.iqsdirectory.com/articles/rotationally-molded-plastic/rotational-molding.html
- Mechanical Properties: Rotational-molded components can have variable mechanical properties due to uneven material distribution during the molding process. This technique is suitable for components with less demanding mechanical requirements.
- Surface Finish: Surface finish can vary, and additional post-processing may be needed for smoother appearances.
- Dimensional Accuracy: Rotational molding may have lower dimensional accuracy compared to other techniques due to material flow characteristics.
- Production Speed: Cycle times for rotational molding can be relatively long, making it suitable for low- to medium-volume production.
- Cost Considerations: Tooling costs for rotational molding can be lower, but production speed and material usage may influence overall costs.
Certainly, here's an expanded explanation that includes blow molding as a plastic molding technique and how it affects the properties of solar energy components:
- Blow Molding:
Image courtesy: https://www.iqsdirectory.com/articles/blow-molding.html
- Mechanical Properties: Blow-molded components often exhibit good mechanical properties, especially for hollow parts. The technique is suitable for creating lightweight yet structurally sound components, such as solar light covers or enclosures.
- Surface Finish: Blow molding can provide smooth or textured surface finishes, depending on mold design and material. Surface finish can influence aesthetics and resistance to environmental factors.
- Dimensional Accuracy: Blow molding offers good dimensional accuracy for hollow components, but complex geometries or tight tolerances might be challenging.
- Production Speed: Blow molding can achieve relatively fast cycle times, making it suitable for producing large quantities of hollow components.
- Cost Considerations: Tooling costs for blow molding are generally lower than injection molding, making it cost-effective for high-volume production of hollow or semi-hollow components.
The choice of plastic molding technique should be made based on a thorough analysis of the solar energy component's requirements, performance expectations, volume, cost constraints, and desired properties. Balancing these factors ensures that the selected molding technique aligns with the specific needs of the solar energy application while achieving the desired balance of performance, aesthetics, and cost-efficiency.
Image courtesy: http://dallon.com.br/en/markets/battery-components/
Plastic molds are used in the manufacturing of various battery components, particularly those found in consumer electronics, automotive, and industrial applications. Plastic molding techniques allow for the efficient production of intricate and precise components that are integral to battery performance, safety, and functionality. Here are some common battery components made using plastic molds:
- Battery Casings and Housings:
- Plastic molds are used to create casings and housings for batteries, protecting the internal components from physical damage and environmental factors. These components need to be durable, lightweight, and resistant to chemicals.
- Battery Covers and Lids:
- Plastic molds are used to manufacture covers and lids that provide access to the battery compartments. These components need to fit tightly, provide easy access for maintenance, and contribute to overall battery safety.
- Terminal Covers and Insulators:
- Plastic molds produce terminal covers and insulators that shield battery terminals, preventing short circuits and ensuring electrical isolation. These components often require precision molding to ensure accurate fit and proper function.
- Vent Caps:
- In batteries that require venting for pressure release, plastic vent caps are molded to allow controlled gas release while maintaining the battery's integrity.
- Separator Supports:
- Battery separators are critical for preventing internal short circuits. Plastic molds are used to create separator supports that keep the separators properly spaced and aligned within the battery cells.
- Grommets and Seals:
- Grommets and seals are used to prevent leaks, contamination, and moisture ingress in battery assemblies. These components are molded to fit specific battery designs and sealing requirements.
- Battery Holders and Mounts:
- Battery holders and mounts are used in various devices to secure batteries in place. These plastic-molded components ensure stable positioning and easy replacement of batteries.
- Battery Terminals and Connectors:
- Plastic molds create terminals and connectors that facilitate electrical connections between batteries and external devices. These components require precision molding to ensure reliable electrical contact.
- Insulating Components:
- Batteries often require insulating components to prevent electrical contact between different parts of the cell. Plastic-molded insulators are used to ensure proper insulation and safety.
- Protective Components:
- Plastic molds are used to create protective components that shield batteries from external impacts and vibrations. These components enhance battery longevity and safety.
- Battery Handles and Carriers:
- For portable devices and applications, plastic-molded handles and carriers are used to facilitate battery handling and transportation while ensuring user safety.
- Battery Caps and Plugs:
- Plastic caps and plugs are used to seal openings in batteries, such as those used in button cells. These components prevent electrolyte leakage and contamination.
- Battery Tray Components:
- Battery trays are used in automotive and industrial applications to securely hold multiple batteries in place. Plastic-molded tray components ensure proper fit and alignment.
Plastic molds enable the efficient and cost-effective production of these battery components, contributing to the overall performance, safety, and reliability of batteries used in a wide range of applications. The choice of plastic material, molding technique, and design precision play key roles in producing components that meet the stringent requirements of battery technology.
Plastic molds have a profound impact on the performance and safety of batteries by influencing their design precision, manufacturing quality, and functional attributes. The following points provide a more detailed understanding of how plastic molds contribute to battery performance and safety:
- Component Consistency and Precision:
- Plastic molds enable the consistent production of battery components with precise dimensions and intricate geometries. Uniformity in size and shape is crucial for proper assembly and compatibility of battery cells and modules. Consistency ensures that components fit seamlessly, preventing gaps or misalignments that could compromise performance.
- Dimensional Accuracy and Fit:
- Precise plastic molding techniques ensure that battery components fit together accurately. Proper fit is essential for maintaining the structural integrity of the battery, preventing gaps that could lead to leakage, short circuits, or improper operation.
- Effective Sealing and Insulation:
- Plastic-molded seals, grommets, and insulators create reliable barriers within batteries, preventing electrolyte leakage and contaminants from entering. Effective sealing and insulation enhance battery safety by minimizing the risk of short circuits or chemical reactions.
- Electrical Isolation and Prevention of Short Circuits:
- Insulating components molded from plastic materials prevent unintended electrical contact between different parts of a battery. By isolating conductive elements, these components prevent short circuits that could result in overheating, fires, or explosions.
- Chemical Compatibility and Resistance:
- Plastic molds use materials selected for their resistance to chemicals present in battery environments, including corrosive electrolytes. This compatibility ensures that battery components remain stable and free from degradation, contributing to long-term performance and safety.
- Durability in Challenging Environments:
- Battery components molded from resilient plastics are designed to withstand various environmental factors, including temperature fluctuations, humidity, and exposure to UV radiation. This durability ensures consistent performance even in demanding conditions.
- Mechanical Protection and Impact Resistance:
- Plastic-molded casings, covers, and housings act as protective shields for battery cells and internal components. They absorb and distribute external forces, minimizing the risk of physical damage that could compromise battery safety or efficiency.
- Controlled Gas Venting and Pressure Release:
- Plastic-molded vent caps are engineered to allow controlled gas release in batteries that may produce gases during operation. This prevents excessive pressure buildup that could lead to battery swelling or rupture, enhancing safety.
- Enhanced User Interaction:
- Plastic-molded features such as handles, covers, and terminals are designed with user-friendliness in mind. These components simplify battery installation, replacement, and maintenance, reducing the risk of mishandling.
- Foreign Object Prevention:
- Precise molding techniques ensure tight fits and proper alignment, minimizing gaps where foreign objects, dust, or debris could enter. This prevents contaminants from affecting battery performance or causing short circuits.
- Compatibility with Electrochemical Reactions:
- Molds used for battery components are selected to be chemically inert, avoiding unintended reactions with the battery's internal chemistry. This compatibility prevents interference that could affect battery function or safety.
- Structural Integrity and Component Support:
- Plastic-molded casings and housings provide structural support, maintaining the shape and integrity of the battery. This prevents deformation that could impact internal components and ensures long-lasting performance.
- Effective Thermal Management:
- Some plastic-molded components incorporate thermal management features, such as cooling channels or fins. Proper heat dissipation maintains stable operating temperatures, promoting energy efficiency and extending battery life.
- User Safety Measures:
- Battery components made using plastic molds incorporate safety features such as secure connections, tamper-proof designs, and fail-safes. These mechanisms reduce the risk of accidents, enhancing user safety during handling and operation.
Incorporating plastic-molded components with these attributes optimizes battery performance, safety, and longevity. These components ensure seamless assembly, prevent hazardous situations, and support efficient energy storage, making plastic molds a crucial element in the design and manufacturing of reliable and safe battery systems.
Image courtesy: https://www.starrapid.com/blog/the-ten-most-popular-plastic-injection-molding-materials/
Plastic molds for battery components require materials that offer a balance of durability, thermal stability, dimensional accuracy, and resistance to chemicals. The choice of mold material is crucial to ensure that the resulting battery components meet the required performance standards. Commonly used materials for plastic molds in battery component manufacturing include:
- Polypropylene (PP):
- Advantages: PP is favored for battery component molds due to its chemical resistance, low moisture absorption, and excellent dimensional stability. It can withstand the temperature and pressure conditions involved in molding processes, ensuring accurate replication of intricate details.
- Applications: PP molds are used for battery casings, covers, terminal insulators, and components that require resistance to chemical exposure and environmental factors.
- Polyethylene (PE):
- Advantages: PE is chosen for molds requiring toughness, impact resistance, and chemical resistance. It provides a protective barrier for battery components, shielding them from physical damage and external elements.
- Applications: PE molds are suitable for battery housings, covers, and components that need robust protection, such as those used in outdoor or industrial environments.
- Polyoxymethylene (POM):
- Advantages: POM offers exceptional mechanical properties, low friction, and excellent dimensional stability. It is well-suited for producing molds with precise, smooth surfaces, ensuring accurate replication of fine features.
- Applications: POM molds are used for battery connectors, terminals, and components where tight tolerances and smooth finishes are essential.
- Polycarbonate (PC):
- Advantages: PC is valued for its transparency, impact resistance, and dimensional accuracy. It allows for clear visibility of internal components and can withstand molding conditions without losing its clarity or integrity.
- Applications: PC molds are used for battery covers, transparent housings, and components with LED indicators or displays.
- Polyamide (Nylon):
- Advantages: Nylon offers a balance of mechanical strength, heat resistance, and chemical resistance. It can handle elevated temperatures and harsh environments, making it suitable for durable molds.
- Applications: Nylon molds are used for battery components exposed to high temperatures, corrosive chemicals, or challenging industrial settings.
- Acrylonitrile Butadiene Styrene (ABS):
- Advantages: ABS is known for its toughness, impact resistance, and ease of processing. It provides a reliable choice for molds producing components that need to withstand mechanical stress and impacts.
- Applications: ABS molds are used for battery housings, structural components, and covers in a wide range of battery-powered devices.
- Polyphenylene Sulfide (PPS):
- Advantages: PPS offers high-temperature resistance, chemical stability, and strong mechanical properties. It maintains its integrity under demanding conditions and ensures long-lasting molds.
- Applications: PPS molds are suitable for battery components exposed to high temperatures or corrosive chemicals, such as those used in automotive or industrial applications.
- Polyetherimide (PEI):
- Advantages: PEI provides exceptional electrical properties, high-temperature resistance, and dimensional stability. It is a reliable choice for molds producing battery components that require reliable electrical insulation.
- Applications: PEI molds are used for battery components involved in electrical applications, where maintaining insulation and performance are critical.
- Polyether Ether Ketone (PEEK):
- Advantages: PEEK is known for its outstanding thermal stability, chemical resistance, and mechanical strength. It ensures the production of molds capable of withstanding extreme conditions.
- Applications: PEEK molds are used for battery components requiring the highest levels of performance and durability, especially in aerospace, medical, or advanced industrial applications.
- Polyethylene Terephthalate (PET):
- Advantages: PET offers clarity, mechanical strength, and chemical resistance. It is suitable for molds producing battery components where transparency or visual aesthetics are important.
- Applications: PET molds are used for battery covers, transparent windows, and components where a clear view of internal elements is necessary.
The selection of the appropriate polymer-based material for battery component molds depends on factors such as the molding process, the specific properties required for the battery components, and the intended application environment. By choosing the right polymer material, manufacturers can ensure that their plastic molds contribute to the efficient production, performance, and safety of high-quality battery components.
