Plastic molds are commonly used in the manufacturing of various display components due to their versatility, cost-effectiveness, and ease of production. Some of the display components that are often made using plastic molds include:
- Bezels and Frames:
Bezels and frames are structural components that surround the display screen of electronic devices. They provide protection, support, and a border that defines the display area. Plastic molds are used to create bezels and frames in various shapes and sizes to fit the specific device's design. These molds allow manufacturers to customize the thickness, curvature, and features of the bezel to match the intended aesthetics and functionality.
- Casing and Enclosures:

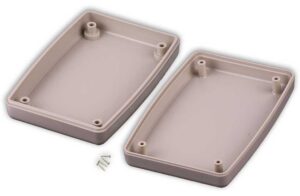

Image courtesy: https://www.polycase.com/
Plastic molds are extensively used to create the outer casings and enclosures of electronic devices. These casings house all the internal components, including the display. The molds can be designed to incorporate specific features like access points for ports, buttons, and connectors. Manufacturers can choose from a wide range of plastic materials that offer varying degrees of durability, rigidity, and aesthetics
- Buttons and Control Panels:

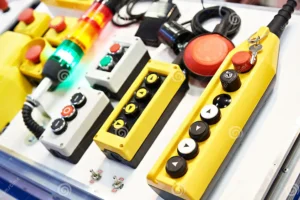

Image courtesy: https://www.dreamstime.com/push-button-control-panels-electrical-equipment-image145502996
Plastic molds are employed to create buttons and control panels integrated into devices' casings. These buttons can be designed to have different shapes, sizes, and textures, allowing for tactile feedback and user-friendly interfaces. Control panels often consist of a combination of buttons, sliders, and switches, which are seamlessly integrated into the device's design using plastic molding techniques.
- Light Guides and Diffusers:

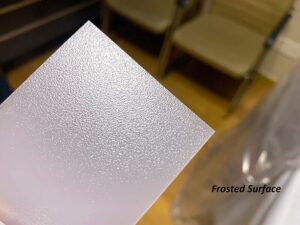

Image courtesy: https://www.uvplastic.com/polycarbonate-sheet/light-diffuser-sheet
Light guides and diffusers are crucial components in displays that use backlighting. Plastic molds are used to create intricate light guide patterns that distribute the backlight evenly across the display surface. Diffusers help scatter the light and reduce hotspots, enhancing the visual quality of the display. Molding allows for precise control over the light distribution pattern, improving the overall illumination quality.
- Lens Covers:

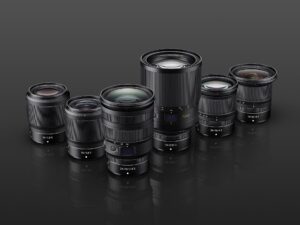

Image courtesy: https://www.dpreview.com/files/p/articles/9162056837/2021/Lens_Lineup_1.jpeg
Plastic molds are used to create protective lens covers for displays, cameras, and sensors. These covers need to be transparent and scratch-resistant to maintain optical clarity. Manufacturers can choose from different plastic materials that offer varying degrees of hardness, clarity, and UV resistance to ensure optimal performance and durability.
- Stand and Mounting Components:

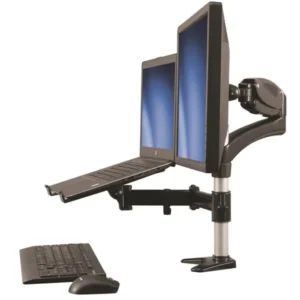

Image courtesy: https://in.rsdelivers.com/product/startechcom/armunonb/startechcom-desk-mounting-monitor-arm-laptop-stand/1798015
Plastic molds are employed to create stands, brackets, and mounting components that hold and position displays within devices. These components need to provide stability and ensure proper viewing angles. Plastic molding allows for the creation of components with intricate shapes and features that can securely hold the display while maintaining the device's overall design aesthetic.
- Screen Bezels and Surrounds:
Plastic molds are used to create decorative or functional bezels and surrounds for displays. These components often serve as mounting points and enhance the aesthetics of the device. Manufacturers can use plastic molding to create bezels with precise curves, textures, and features that match the intended design language of the product.
- Touchscreen Bezels:

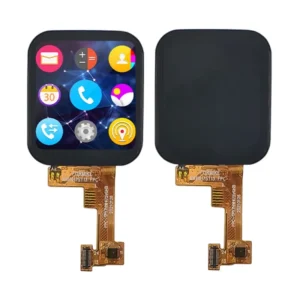

Image courtesy: https://www.wandisplay.com/products/1.69-Inch-240x280-Smart-Watch-LCD-Small-TFT-Display-Wearable-TFT-LCD-Module.html
Displays with touchscreen functionality require bezels that house the touch sensors. Plastic molds allow manufacturers to create custom-fitted bezels that ensure accurate touch response while providing protection to the sensitive touch surfaces.
- Indicator and Status Lights:

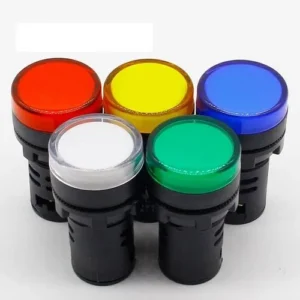

Image courtesy: https://www.indiamart.com/proddetail/control-panel-led-indicator-light-20805276930.html
Plastic molds are used to create housings for indicator and status lights in displays. These housings are designed to ensure that the lights are visible and integrated seamlessly into the overall device design. Plastic molding techniques enable the creation of intricate shapes and designs that suit the display's purpose and aesthetics.
- Speaker Grilles:

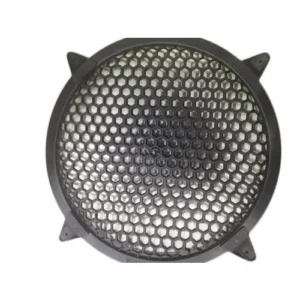

Image courtesy: https://www.indiamart.com/proddetail/speaker-grill-plastic-21154846255.html
Plastic molds are utilized to create speaker grilles that protect built-in speakers while allowing sound to pass through. These grilles can be customized to provide optimal acoustic performance without compromising the device's design.
- Retail Display Components:

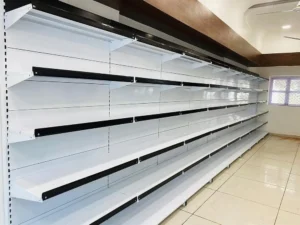

Image courtesy: https://www.indiamart.com/proddetail/shopping-mall-display-rack-21640700197.html
Plastic molds are employed to create various components used in retail displays, such as product stands, signage holders, and display trays. These components are designed to be visually appealing, durable, and easy to assemble, making plastic molding an ideal manufacturing method.
- Automotive Displays:
Image courtesy: https://www.wevolver.com/article/display-technologies-to-watch-in-automotive
In automotive applications, plastic molds are used to create dashboard components, instrument cluster surrounds, and infotainment system housings. These components need to withstand the harsh environment of a vehicle's interior while maintaining a high level of aesthetics and functionality.
In summary, plastic molds are versatile tools that enable the creation of a wide range of display components with intricate designs, precise details, and tailored functionalities. They play a vital role in various industries by providing cost-effective solutions for producing components that enhance the visual quality, usability, and overall experience of electronic devices and displays.
The use of plastic molds in manufacturing industrial equipment plays a pivotal role in achieving lightweighting goals through a combination of innovative design, material selection, and manufacturing efficiency. Here's how plastic molds contribute to lightweighting:
- Design Optimization:
Plastic molding techniques, such as injection molding, enable manufacturers to create intricate and highly optimized designs that maximize strength and functionality while minimizing material usage. This design flexibility allows for the creation of complex geometries, thin walls, and hollow structures that are difficult to achieve with traditional materials like metals. Engineers can fine-tune the shape and distribution of features to achieve the desired mechanical properties, resulting in efficient load distribution and reduced material consumption.
- Material Selection:
Plastics offer a wide range of material options, each with specific properties that can be tailored to meet the requirements of industrial equipment. Advanced engineering polymers, composites, and reinforced plastics can provide high strength-to-weight ratios, impact resistance, and thermal stability. By selecting the right plastic material for the specific application, manufacturers can achieve lightweighting while maintaining or enhancing performance characteristics.
- Consolidation of Components:
Plastic molding allows for the integration of multiple features, functions, and components into a single part. This consolidation eliminates the need for separate parts, fasteners, and assembly steps. The result is a reduction in weight and increased structural efficiency, as well as simplified assembly processes and improved reliability.
- Hollow Structures:
Plastic molds enable the creation of parts with internal voids or hollow sections. These hollow structures significantly reduce weight while maintaining the necessary strength and rigidity. Hollow components can also be designed to provide specific benefits, such as improved sound insulation or thermal insulation, making them versatile solutions for lightweighting.
- Thinner Wall Sections:
Plastic molding allows for the production of parts with thin and uniform wall sections. This optimization conserves material while still providing adequate strength and durability. Manufacturers can achieve lightweighting by strategically reducing wall thickness in non-critical areas of the component.
- Material Efficiency:
Plastic molding processes generate minimal material waste compared to traditional manufacturing methods. Precise control over material distribution during molding minimizes scrap and ensures that the material is used efficiently. This efficiency directly contributes to lightweighting efforts by reducing unnecessary material consumption.
- Low-Density Fillers and Additives:
Some plastic materials can be compounded with low-density fillers, such as microspheres or glass bubbles, to further decrease weight while maintaining mechanical properties. These additives displace a portion of the plastic matrix, reducing the overall density of the material.
- Corrosion Resistance and Insulation:
Plastics are inherently resistant to corrosion and offer excellent electrical and thermal insulation properties. By replacing metal components with plastic alternatives, manufacturers can achieve weight reduction while enhancing resistance to environmental factors and reducing the risk of galvanic corrosion.
- Efficient Mass Production:
Plastic molding processes, such as injection molding, are highly automated and suitable for mass production. The ability to create complex components with minimal manual intervention reduces labor costs and increases production efficiency, contributing to overall cost savings and lightweighting efforts.
- Transportation and Installation:
Lightweight industrial equipment is easier and more cost-effective to transport and install. Lower weight reduces the need for heavy-duty transportation equipment and simplifies the installation process, resulting in reduced logistical challenges and associated expenses.
In conclusion, the use of plastic molds in the production of industrial equipment empowers manufacturers to achieve lightweighting objectives through innovative design, material selection, and efficient manufacturing processes. By leveraging the inherent properties of plastics and the capabilities of molding technologies, companies can create high-performance components that contribute to lighter, more efficient, and environmentally sustainable industrial equipment.
Image courtesy: https://www.starrapid.com/blog/the-ten-most-popular-plastic-injection-molding-materials/
A diverse range of materials is employed in the creation of plastic molds for industrial machinery, with each material offering distinct attributes tailored to specific applications. These materials enable manufacturers to produce molds that meet the demands of various industries and operational conditions. Here are commonly used materials in industrial machinery plastic molds:
- Polypropylene (PP):
Polypropylene stands out for its versatility, affordability, and impressive chemical resistance. It is a popular choice for molds producing components exposed to corrosive substances or harsh chemicals. PP molds are often used in chemical processing equipment, storage tanks, and fluid handling systems. Its inherent toughness and resistance to fatigue make it suitable for parts subject to repetitive stress, such as conveyor components.
- Polyurethane (PU):
Polyurethane molds excel in applications requiring flexibility, impact resistance, and exceptional durability. They are frequently utilized for creating molds that produce elastomeric components like seals, gaskets, and shock absorbers. The ability of polyurethane to withstand high levels of abrasion makes it a reliable choice for molds used in heavy-duty machinery and equipment.
- Polyethylene (PE):
High-density polyethylene (HDPE) is prized for its ruggedness, moisture resistance, and ability to endure challenging environments. Molds crafted from HDPE are prevalent in the creation of components for outdoor machinery, agricultural equipment, and water management systems. Its resistance to stress cracking and environmental factors ensures the longevity of parts like pipes, valves, and agricultural containers.
- Polyvinyl Chloride (PVC):
PVC molds are notable for their flame resistance, electrical insulation properties, and cost-effectiveness. They find their place in the production of molds for electrical enclosures, cable conduits, and switchgear components. PVC molds provide a reliable solution for applications requiring protection against electrical hazards or the need to meet stringent fire safety standards.
- Polystyrene (PS):
Polystyrene molds offer commendable rigidity and are easily molded into intricate shapes. Molds made from PS are often employed in the fabrication of precision components, such as housings for electronic equipment, instrumentation panels, and display screens. Their dimensional stability ensures that the produced parts accurately meet design specifications.
- Polyamide (PA or Nylon):
Nylon molds are renowned for their exceptional strength, heat resistance, and chemical durability. In industrial machinery, they find utility in molds crafting high-load-bearing components like gears, bearings, and pulleys. The resilience of nylon molds ensures the reliable performance of machinery even under demanding conditions.
- Polycarbonate (PC):
Polycarbonate molds are valued for their combination of impact resistance and optical clarity. They are often chosen for producing molds for safety equipment, protective covers, and transparent enclosures. The transparency of polycarbonate allows for visual monitoring of internal machinery components while offering impact protection.
- Acrylonitrile Butadiene Styrene (ABS):
ABS molds are favored for their excellent impact resistance and ease of molding complex geometries. They are a popular choice for molds crafting casings, housings, and structural components. The balance between toughness and rigidity ensures that ABS molds can withstand varying stress levels while maintaining their form.
The selection of a particular material for an industrial machinery plastic mold hinges on multiple factors, including the intended application, environmental conditions, regulatory standards, and desired mechanical properties. Manufacturers meticulously assess these considerations to ensure that the chosen material aligns with the functional and operational demands of the final machinery component.
Plastic molds are a critical tool in the production of interior components for industrial equipment, owing to their exceptional versatility, cost-effectiveness, and capability to fabricate intricate shapes. These molds enable manufacturers to create a diverse array of components that are essential for the functionality, safety, and efficiency of industrial machinery. Here are some examples of how plastic molds are used to produce interior components:
- Control Panels and Interfaces:

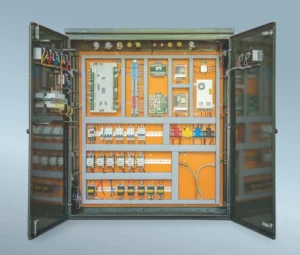

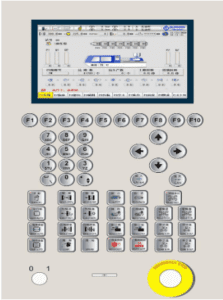

Image courtesy: https://www.beckhoff.com/en-en/industries/plastics-machines/injection-molding/
Plastic molds are employed to manufacture control panels, buttons, switches, and various interface components that allow operators to manage and interact with industrial machinery. These components can be designed with precision, incorporating intricate details, textures, and even markings like symbols, labels, or instructions. Plastic molding ensures consistency in shape and design, contributing to user-friendly interfaces.
- Enclosures and Casings:
Image courtesy: https://www.simcobox.com/blog/what-makes-a-good-plastic-enclosure/
Many industrial machines require protective enclosures or casings to shield sensitive internal components from external factors such as dust, moisture, and physical damage. Plastic molds facilitate the creation of enclosures that are not only durable and resistant to harsh conditions but also aesthetically pleasing. These enclosures maintain the equipment's integrity and longevity while enhancing its appearance.
- Mounts and Brackets:

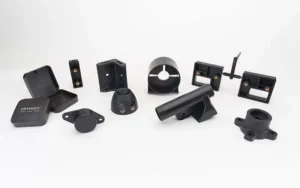

Image courtesy: https://www.msi-mold.com/injection-mold-parts/
Plastic molds are utilized to craft mounts, brackets, and structural components that hold other parts securely in place within the machinery. These components are designed to be both sturdy and lightweight, providing essential support for various machinery elements. Plastic molding allows for complex geometries and intricate designs, ensuring optimal fit and function.
- Seals and Gaskets:
Image courtesy: https://www.better-silicone.com/Rubber-Injection-Molding-For-Gasket-Seals-pd508549.html
Seals, gaskets, and other sealing components are produced using plastic molds to prevent leaks and protect against environmental conditions. These components play a crucial role in maintaining the integrity of industrial machinery by preventing fluid or gas leaks, ensuring smooth operation, and enhancing safety.
- Insulation Components:
Image courtesy: https://jacoproducts.com/thermal-insulation/thermal-mold-insulation-platen-insulation/
Some industrial equipment necessitates plastic components that provide electrical or thermal insulation. Plastic molds enable the creation of these insulation components, ensuring safe operation and preventing undesirable interactions between electrical components. These parts are designed to meet specific safety or performance requirements dictated by industry standards.
- Connectors and Fittings:

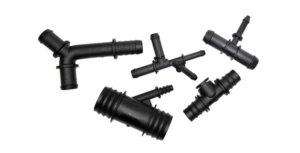

Image courtesy: https://www.echosupply.com/expertise/connecting
Plastic molds produce connectors, fittings, and other components that enable different parts of the equipment to connect and work together seamlessly. These components are designed with precision to ensure compatibility and reliable functionality, contributing to the overall performance of the machinery.
By harnessing the capabilities of plastic molds, manufacturers can produce a wide spectrum of interior components tailored to the specific functional requirements of industrial equipment. The versatility of plastic molding methods allows for intricate designs, tailored features, and consistent quality. This approach not only enhances the efficiency and reliability of industrial equipment but also contributes to cost-effective manufacturing processes, making plastic molds a foundational element in modern industrial machinery production.
Plastic molds are instrumental in the production of exterior components for industrial machinery, offering a range of advantages such as the ability to create complex shapes, durability, and cost-effectiveness. These molds enable manufacturers to craft a diverse array of components that contribute to the functionality, aesthetics, and overall performance of industrial machinery. Here's how plastic molds are utilized for exterior component production:
- Housings and Enclosures:
Image courtesy: https://www.qqsmould.com/custom-bi-injection-mold-for-plastic-enclosure_p86.html
Plastic molds play a pivotal role in shaping the outer housings or enclosures that provide protection to the internal components of industrial machinery. These components are carefully designed to withstand various environmental challenges such as extreme temperatures, weather conditions, and exposure to chemicals. Plastic molding ensures the creation of durable, robust, and weather-resistant housings that preserve the machinery's integrity and functionality.
- Protective Covers and Guards:
Image courtesy: https://www.acomold.com/injection-mold-making-project-for-plastic-protective-case.html
Plastic molds are employed to fabricate protective covers, guards, or shields that safeguard machinery internals and users from potential hazards. These components are designed to exhibit strength, impact resistance, and ease of installation and removal. Plastic molding techniques contribute to the production of components that enhance operator safety and equipment longevity by preventing damage or accidents.
- Control Panels and Interfaces:
Image courtesy: https://www.indiamart.com/proddetail/injection-molding-machine-control-panel-2844946762.html
Plastic molds are frequently used to manufacture exterior control panels, buttons, switches, and interface components. These elements are meticulously designed to incorporate intricate details such as markings, labels, symbols, and tactile indicators. Plastic molding ensures the precise replication of these details, enhancing the usability, accessibility, and aesthetics of machinery interfaces.
- Handles and Knobs:

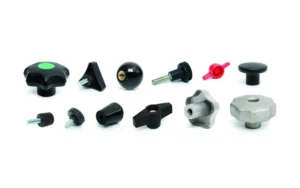

Image courtesy: https://www.indiamart.com/proddetail/plastic-knob-mould-23914949455.html
Plastic molds craft handles, knobs, and ergonomic components that facilitate the operation of industrial machinery. These components are designed to provide users with comfort and ease of use. Plastic molding techniques allow for the creation of components that offer tactile feedback, enhancing the user experience and promoting efficient machinery operation.
- Connectors and Ports:
Image courtesy: https://www.alibaba.com/product-detail/Customized-Plastic-Injection-Mold-Mobile-USB_1600428001196.html
Plastic molds are utilized to produce connectors, ports, and other components that facilitate connections to the machinery. These components are engineered to withstand the rigors of frequent use, ensuring durability and reliability. Plastic molding guarantees the creation of connectors and ports that maintain their structural integrity, enabling seamless interactions with the machinery.
- Signage and Branding Elements:
Image courtesy: https://geminimade.com/signage/letters-logos/injection-molded/
Plastic molds play a role in the production of signage, logos, and branding elements that adorn the exterior of the machinery. These components are designed to withstand external factors, maintaining their visual appeal and durability over time. Plastic molding allows for the integration of branding elements that enhance the identity, recognition, and professional appearance of industrial machinery.
In conclusion, plastic molds serve as a cornerstone in the manufacturing of exterior components for industrial machinery. By harnessing the capabilities of plastic molding, manufacturers can create components that withstand challenging environmental conditions, enhance machinery aesthetics, and contribute to user safety. The versatility of plastic molding techniques empowers manufacturers to produce components with intricate designs, tailored features, and consistent quality, thereby bolstering the functionality, reliability, and cost-effectiveness of industrial machinery.
The utilization of plastic molds in the production of display components brings both benefits and considerations to the realm of recyclability. The intricate dance between design, material selection, manufacturing processes, and end-of-life management influences the overall recyclability of these components. Here's how the use of plastic molds interacts with recyclability:
- Precision and Material Efficiency:
Plastic molds facilitate the creation of display components with precise geometries and uniform dimensions. This accuracy can minimize material wastage during both production and eventual disposal, optimizing the efficient use of resources.
- Streamlined Manufacturing:
The use of plastic molds ensures consistent production, resulting in parts that seamlessly fit together during assembly. Such precision reduces the need for excessive material trimming, which can otherwise lead to higher material waste.
- Lightweight Construction:
Plastic molding enables the crafting of lightweight display components, contributing to energy efficiency during the equipment's usage phase. Reduced weight can also impact transportation costs and associated environmental impacts.
- Material Compatibility:
By aligning plastic material properties with specific functional requirements, plastic molds allow for the creation of display components that integrate multiple functionalities within a single part. This integration can reduce the use of additional materials, promoting efficiency.
- Durability and Longevity:
Plastic components manufactured using molds can be designed for durability, which extends their useful life. Durable components are less likely to require frequent replacements, thus reducing the demand for new materials.
Considerations and Challenges:
- Material Selection:
The choice of plastic material is crucial. While some plastics are highly recyclable, others may not be as compatible with existing recycling processes due to their chemical composition or additives. The wrong material choice can hinder recyclability.
- Mixed Materials and Complexity:
Display components often incorporate mixed materials, such as plastics, metals, electronics, and glass. The complexity of these assemblies can complicate the recycling process, as separating and recycling different materials becomes challenging.
- Additives and Contaminants:
Some plastic materials used in molding may contain additives, colorants, or flame retardants. These additives can influence the recyclability of the material, affecting its mechanical and chemical properties.
- Disassembly Challenges:
While plastic molds allow for intricate designs, some designs may hinder disassembly at end-of-life, impeding the separation of materials for recycling.
- Market Demand for Recycled Materials:
The recyclability of plastic components is also influenced by the market demand for recycled materials. If there is a lack of demand for certain types of recycled plastics, recycling efforts might be limited.
- Design for Disassembly: Components can be designed with modularity and ease of disassembly in mind. This facilitates material separation during recycling.
- Material Compatibility: Opt for plastic materials that are well-suited for recycling and have established recycling streams.
- Labeling and Identification: Clearly label components with material information to aid recycling facilities in identifying and processing different plastics.
- Collaboration and Awareness: Foster collaboration between manufacturers, designers, and recyclers to optimize the recyclability of display components.
- Closed-Loop Systems: Implement closed-loop recycling systems where feasible, allowing recovered materials from end-of-life components to be used in new production cycles.
In essence, the use of plastic molds in the production of display components influences their recyclability through a complex interplay of design choices, material selection, and end-of-life considerations. By strategically addressing these factors, it's possible to enhance the recyclability of these components, minimizing environmental impact and promoting sustainable practices in the electronics industry.
Ensuring the durability of industrial machinery components made from plastic molds is a multi-faceted process that involves meticulous material selection, precision engineering, quality control, and ongoing testing. The goal is to create components that can withstand the rigors of industrial environments, mechanical stress, temperature variations, and operational demands. Here's how the durability of such components is ensured:
- Material Selection:
Choosing the right plastic material is foundational. High-performance engineering plastics with specific properties, such as mechanical strength, impact resistance, and temperature stability, are selected based on the intended application and environmental conditions. Materials like ABS, nylon, polycarbonate, and polypropylene are often chosen for their durability.
- Advanced Plastic Molding Techniques:
Employing advanced molding techniques, such as injection molding, ensures that components are manufactured with precision and consistency. Molding parameters are fine-tuned to achieve optimal material properties, minimizing defects and inconsistencies that could compromise durability.
- Reinforcement and Filler Materials:
In some cases, plastic compounds are reinforced with fillers like glass fibers or other additives to enhance mechanical properties. This reinforcement increases the component's strength, stiffness, and resistance to wear and tear.
- Structural Design and Simulation:
Engineers use computer-aided design (CAD) software and simulation tools to optimize the structural design of components. Finite element analysis (FEA) can predict how components will behave under different loads and conditions, enabling design improvements before physical production.
- Durability Testing:
Components are subjected to rigorous durability testing to simulate real-world operational conditions. Tests may include cyclic loading, impact resistance, temperature cycling, and exposure to harsh environments. Testing helps identify potential weaknesses and informs design enhancements.
- Quality Control and Inspection:
Throughout the manufacturing process, quality control measures are implemented to ensure that components meet specified standards. Inspection for dimensional accuracy, surface finish, and material properties is crucial to identifying defects and ensuring consistency.
- Material Aging and Longevity Analysis:
Engineers analyze the long-term behavior of plastic materials, considering factors such as UV exposure, chemical interactions, and thermal degradation. This analysis helps predict how components will perform over their expected service life.
- Environmental and Chemical Compatibility:
Components are designed to withstand exposure to chemicals, oils, solvents, and other substances commonly encountered in industrial settings. Material selection accounts for chemical resistance to prevent degradation and maintain structural integrity.
- Sealing and Encapsulation:
In applications where exposure to moisture, dust, or contaminants is a concern, components may be designed with seals, gaskets, or encapsulation to prevent ingress and maintain operational reliability.
- Feedback and Continuous Improvement:
Feedback from real-world use and field testing contributes to continuous improvement. Manufacturers gather data on component performance and use it to refine designs and materials for enhanced durability.
- Warranty and Service Support:
Manufacturers often offer warranties and service support for their industrial machinery components. This ensures that any unexpected issues related to durability can be addressed promptly, offering customers peace of mind.
In essence, the durability of industrial machinery components made from plastic molds is achieved through a combination of materials expertise, meticulous design, advanced manufacturing techniques, thorough testing, and ongoing quality control. By addressing each aspect of the production process, manufacturers can deliver components that stand up to the challenges of demanding industrial environments and contribute to the reliability and longevity of machinery systems.
Plastic molds play a pivotal role in the production of electronic components for industrial equipment, offering a combination of versatility, precision, and cost-effectiveness. This utilization of plastic molds enables manufacturers to create a diverse range of components that are integral to the functionality and efficiency of industrial machinery. Here are several specific examples of electronic components that are commonly produced using plastic molds:
- Enclosures and Housings:
Plastic molds are frequently employed to craft enclosures and housings for electronic components. These enclosures provide protection against environmental factors, dust, moisture, and physical damage. They can be designed to possess attributes such as robustness, heat resistance, and electrical insulation. Such enclosures house sensitive electronics, ensuring their safety and longevity in demanding industrial environments.
- Connectors and Sockets:
Image courtesy: https://www.amazon.in/Plastic-Female-Connector-Electrical-Supplies/dp/B08DZSHT2V
Plastic molds are instrumental in creating connectors, sockets, and interface components. These elements facilitate reliable electrical connections between different parts of industrial equipment. The high precision achievable through plastic molding ensures optimal fit and performance, which is crucial for uninterrupted operations.
- Insulation Components:
Image courtesy: https://colortec.es/en/manufacturing-of-plastic-pieces-for-electric-material-and-household-electric-appliances/
Insulation components, molded using plastic molds, are designed to prevent electrical shock and short circuits. These components are essential for enhancing the safety of operators and preventing damage to electronic systems. Manufacturers can tailor these insulation components to meet specific safety or performance requirements dictated by industry standards.
- Buttons and Switches:

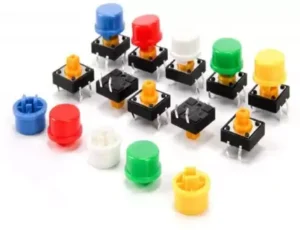

Image courtesy: https://www.flipkart.com/electrobot-push-button-momentary-smd-pcb-switch-multicolour-cap-electronic-components-hobby-kit/p/itm8881231d34ebd
Buttons, switches, and control components are manufactured using plastic molds. These elements are designed to be durable, easy to use, and resistant to wear. Their precise design ensures consistent functionality and user-friendly operation, contributing to the overall ease of machinery control.
- LED Lenses and Light Guides:
Image courtesy: https://www.fictiv.com/articles/how-to-3d-print-light-pipes
In lighting applications, plastic molds are utilized to shape LED lenses and light guides. These components direct and diffuse light emitted by LEDs, enabling the creation of specific lighting effects or distributions. Plastic molding allows for intricate designs that optimize light dispersion for various industrial scenarios.
- Circuit Board Supports and Mounts:
Image courtesy: https://en.wikipedia.org/wiki/Printed_circuit_board
Plastic molds are employed to create supports and mounts for circuit boards. These components hold circuit boards securely in place within the machinery while offering protection against mechanical stress, vibrations, and impacts. Properly designed supports also aid in heat dissipation, ensuring the longevity of electronic components.
Through the utilization of plastic molds, manufacturers are empowered to fabricate a wide array of electronic components that fulfill precise functional requirements. The versatility of plastic molding methods allows for the production of components with intricate designs, tailored features, and consistent quality. This approach not only enhances the efficiency and reliability of industrial equipment but also contributes to cost-effective manufacturing processes, making plastic molds a cornerstone of modern industrial electronics production.
Ensuring the safety of industrial machinery components made from plastic molds involves a multifaceted and rigorous approach that spans design, material selection, manufacturing processes, quality control, testing, compliance, and user education. This comprehensive strategy is aimed at minimizing risks, preventing accidents, and upholding the well-being of workers while maintaining the machinery's optimal performance. Here's how safety is meticulously ensured:
- Design for Safety:
Safety considerations are integrated into the component's design from the outset. Engineers and designers analyze potential hazards associated with the component's function, operation, and interaction with other machinery parts and personnel. Design elements that promote safety include rounded edges, ergonomic features, proper mounting points, and clear visibility of warning labels or indicators.
- Material Selection for Safety:
Plastic materials are chosen with safety in mind. Fire-resistant, self-extinguishing plastics (UL94 V-0 rated) are employed in components near heat sources to prevent fire hazards. Dielectric and non-conductive plastics are selected for electrical components to prevent electrical shocks and short circuits.
- Adherence to Standards and Regulations:
Industrial machinery components must meet industry-specific standards and regulations. Compliance with standards such as ISO, UL, CE, ANSI, and others ensures that components have undergone rigorous testing and evaluations to verify their safety attributes.
- Precision Mold Design:
Molds are meticulously designed to produce components with consistent dimensions, surface finishes, and structural integrity. Proper mold design minimizes potential safety risks, such as sharp edges or weak points that could pose hazards during operation or maintenance.
- Manufacturing Precision and Consistency:
Injection molding, a prevalent manufacturing method, ensures precise replication of design features. This precision minimizes the chances of manufacturing defects that could compromise safety, such as variations in dimensions or irregularities in the component's structure.
- Thorough Quality Control and Inspection:
Stringent quality control measures are enforced throughout the manufacturing process. Components undergo meticulous inspection for dimensional accuracy, material consistency, absence of defects, and adherence to safety specifications.
- Testing and Validation:
Comprehensive testing protocols are employed to validate component safety. Impact tests, electrical conductivity tests, flame resistance tests, and environmental tests are conducted to ensure components perform reliably and safely under real-world conditions.
- Durability and Endurance:
Components are designed to withstand the mechanical stresses, vibrations, and environmental factors they encounter. Material properties are selected to ensure components endure wear and tear over their operational lifespan, contributing to their safety and longevity.
- Chemical and Environmental Compatibility:
Materials used in the components are chosen for their resistance to chemicals, oils, solvents, and other environmental factors present in industrial settings. Ensuring compatibility prevents degradation and ensures safe operation.
- Integration and Assembly Safety:
During integration, components are securely mounted and assembled to prevent unintended movement, detachment, or interference with other machinery functions. Proper fastening methods and clearances are designed to ensure safe operation.
- User Manuals and Instructions:
Clear and comprehensive user manuals and instructions are provided to guide operators, maintenance personnel, and users in the safe installation, operation, and maintenance of the components. This education promotes safe practices and proper handling.
- Training and Skill Development:
Adequate training and skill development programs are offered to operators, maintenance teams, and personnel responsible for component handling. Proper training ensures they are well-equipped to operate machinery safely.
- Feedback Loop and Continuous Improvement:
Manufacturers gather feedback from users, operators, and maintenance teams to identify potential safety concerns and areas for improvement. This feedback loop drives continuous refinement of component designs and manufacturing processes.
In essence, ensuring the safety of industrial machinery components made from plastic molds is a comprehensive and intricate process that integrates safety principles, design expertise, material knowledge, manufacturing precision, compliance with standards, rigorous testing, and user education. This holistic approach culminates in components that not only contribute to the machinery's optimal performance but also safeguard the well-being of workers and the overall workplace environment.
The complete Guide to Mould Design
In this blog post, you’ll read:The complete guide to rivets, including the various types, materials used, and the rivet selection criteria.
Table of Contents
In the production process, most devices or parts are normally made up of more than one part being attached together. Fasteners play the role of joining the various parts together. A rivet can be described as a metallic bolt or fastener that is used to join two metals together. It is made up of a head and a tail each on its two sides. Rivets are usually made of different materials and in different sizes in regards to the areas where they are to be applied. In today’s life, rivets have proven to be very important in the manufacturing process and they are mostly utilized by a number of industries. Some of the examples of where rivets are applied include in the manufacture of boats, aircrafts, jewelry, and automotives. Rivets have become popular in the manufacturing industries because of the many benefits that come with them and also their efficiency. In this article, we are going to discuss features of rivets, their types, and their applications in detail.
II. Types of Rivets
There are various types of rivets used in industries. They are, however, grouped into specific categories as explained below.
A. Solid rivets
These are considered to be the oldest and the most regularly used kind of rivets. On one end of the solid rivet, there is usually the head whereby after installation the other side is usually hit and deformed using a rivet gun or hammer till it is deformed. The deformed nature of the other end helps to ensure that the rivet stays in place. In instances where there is a need for one to ensure safe and dependable products, solid rivets are the best choice. In most cases, aluminum is used to make solid rivets. The aircraft industry is an example of industries that finds solid rivets very crucial in the manufacture of various parts.
B. Tubular rivets
These kinds of rivets are usually made of a head and a hollow part each on one side of the rivet. The hollow part usually plays a crucial role in connecting two parts being joined together. Cold working being the method used to create the hollow part of the rivets, it is necessary for the metals used to have high ductility and low strength. The tubular rivets are further divided into various groups which include:
- Full tubular rivets are preferably used on soft materials such as plastic due to their weak nature as compared to semi-tubular rivets. The holes in them are usually deeper than the other tubular rivets.
- Compression tubular rivets which are also used on soft materials. They are mostly used during the manufacture of handbags, clothing, luggage, and textiles. They are usually made up of two parts which are the cap and stem which are easy to fix and are useful in the fastening of different materials.
- Semi-tubular rivets which contain the hollow part in the field end and usually seem more like solid rivets. These are commonly used in joints that experience motion such as in breaks, and ladders among others.
C. Blind rivets
These metallic fasteners are usually tube-like and have a mandrel at the center. The parts that are to be attached contain holes where the blind rivets are put to connect them. As the name suggests, the blind rivets can be installed from just one side of a part leaving the other side “blind”. This makes them be used mostly in joining parts whose the back side of the joint cannot be seen. It is the most used rivet in the manufacturing of ships, aerospace, and electronics. This category comprises several kinds and they are:
- Threaded rivets. This is a fastener that is considered a form of the standard rivet. It is mainly used in connecting parts that are of high performance.
- Pull-mandrel rivets. They are in most cases used in the electronic industry and instances where high rigidity is required. It is used when cliches are needed on two flush surfaces on the two sides of the rivet.
- Drive-pin rivets. These types of rivets are in most instances used in architecture and aesthetic applications. They have mandrels that are short projecting on their heads which are worked on by a hammer once the rivet is inserted in a hole in the parts to be joined. This leads to the widening of the part of the rivet inserted in the hole. Their clamping force is usually low compared to other rivets.
D. Split rivets
These types of rivets also known as bifurcated rivets are best suited to connect materials that are softer such as plastic and leather. They are usually designed to split on one end and are sharp enough at the ends which helps them to make holes in the materials that they are joining together. It is advisable to use them only on simple applications.
E. Flush rivets
These are used on outer surfaces to boost the appearance of an object and to get rid of aerodynamic drag which affects the motion of a moving automobile or aircraft. These kinds of rivets can also be referred to as countersunk rivets whereby their countersunk heads and holes make them suitable for their roles.
There are also friction lock rivets and self-piercing rivets which are also categories of rivets.
III. Materials Used in Rivets
Manufacturing companies use various materials in the manufacturing of rivets to satisfy the needs of both the manufacturers and customers. The different materials help diversify the uses of the rivets. These materials include the following:
A. Aluminum rivets
Aluminum is on the other hand used due to its high level of gentleness and lightness. Rivets made from aluminum are usually used in a number of applications due to the fact that they do not degrade easily. Aluminum is also preferred due to its high ductility which makes it easier for it to be used in a number of applications and where the manufacture of various complex parts is involved.
B. Steel rivets
The kinds of steel containing a low amount of carbon are usually used because the low carbon makes them easy to fit effectively and settle. The low carbon also makes the rivets more flexible hence they can adjust easily unlike steel with a high composition of carbon.
C. Stainless steel rivets
This material is normally used to manufacture rivets because of the hardness and strength that it possesses. The rivets made from stainless steel are usually the ones used in the manufacture of aircrafts, automotives and in industries that produce power. They are also preferred due to their high level of corrosion resistance. This helps the stainless steel rivets last longer.
D. Copper rivets
This material is well known for its high heat and electricity conductivity, which makes rivets made from copper to be best suited for use in the manufacture of electrical and water devices. Copper is also flexible which makes it easy for it to be used in various applications.
E. Brass rivets
This is a tough material which contains low friction and it’s flexible enough for it to suit a number of roles. It also does not rust easily and therefore, because of this and other characteristics, it does not produce sparks. This property makes it suitable for brass rivets to be used in the manufacturing of gas devices.
IV. Rivet Selection Criteria
There are a number of properties to consider when it comes to the selection of the kind of rivet to use. These properties include:
-The range of grip. This refers to the range in which the rivet fits properly in the holes made in the two materials that it is supposed to connect. The range is usually the minimum and maximum diameter that has to be maintained for them to fit into each other perfectly.
-The size of the hole. When a hole is very small, the process of inserting the rivet is usually hard, especially in blind riveting. Also, when the hole is bigger in size than the rivet, the tensile strength decreases or even the materials lose their connection.
-Shear and tensile strength. Shear strength refers to the force that is to be applied on the rivet along the place where the joints meet while tensile strength refers to the force applied on the rivet through its length. The two have to be of the right measurement to ensure that the rivet fits properly.
-Joint thickness. It is crucial to determine the thickness of the parts to be joined to ensure that the manufacturer uses the rivet with the right “grip”. The range of grip should be dependent on the thickness of the two materials. If one uses the wrong measure of the length of the rivet, there might not be any room for the formation of the other side of the head which is responsible for holding materials together.
-Nature of the materials used. Different materials have different properties which help them suit different conditions. In instances where rivets of high strength are required, there are specific materials to be used. To avoid corrosion, the manufacturer should use stainless steel due to its ability to resist corrosion. Also, the rivets should possess similar properties, both physical and mechanical, as the parts being connected for them to join perfectly and to avoid reactions that might lead to corrosion.
-The style of the head. It is important to have the right size and shape of the secondary head formed so as to ensure that the rivet stays in place. In cases involving flush surfaces a countersunk head is usually preferred but a domed head is the one used in most applications. When rigid and soft materials are being joined together, it is normally advisable to use a large flange head.
V. Riveting Tools and Equipment
Rivet tools which can also be referred to as rivet guns are normally used to install rivets. The rivet tools come in various types as stated below.
Hand rivet gun – This is a simple kind of gun that uses a simple lever and involves squeezing so as to carry out its role. It is usually used to install blind rivets.
Heavy-duty lever riveter – These are an improved version of rivet guns which deal with a larger variety of rivets and are also easier to use. It normally has a bottle in the middle which is responsible for holding the mandrels that are snapped out after the installation process is over. Although it is manually done, it is faster than the hand rivet gun because of its improved lever action.
Cordless battery riveting tool – This type of rivet gun uses batteries to get powered making the installation process faster instead of using manpower. The gun also helps to collect the mandrels for the installer making the process faster.
Pneumatic rivet gun – These, on the other hand, use air that has been compressed to power them which makes it quick and easy to use during the installation of rivets. They are considered the quickest way of installation despite the fact they need to stay connected to a source of compressed air which makes them less portable.
Hydraulic riveter – This is usually powered by hydraulic forces to be fit for its role.
VI. Riveting Techniques
The riveting process starts by first preparing and clamping together the materials that are to be joined together. The two materials are then drilled to form holes where the rivet is to be inserted later. The holes have to be of the right measurement to ensure the perfect fitting of the rivet and for the two plates to be connected well. Then, a countersinking cutter is used to debar the holes for the rivets. Once they are of the right size and shape, the river is then inserted into them with the head underneath. A hammer is used on the rivet making the materials squeeze on each other and as the hammer continues to hit the rivet it fits completely into the hole. Continued blows by the hammer lead to the formation of the head which holds the materials firmly together. Once this is finalized, the formed part is assessed to see if any corrections have to be made or not.
VII. Common Riveting Issues and Solutions
The riveting process, just like any other process, has complications that might happen. These issues may include the following:-
- Loose rivets might result from the holes drilled being larger than the size recommended or the rivet being of a smaller thickness. It is, therefore, necessary to be cautious of the measurements to use. Bobbing and Frenching are some methods that can be used to tighten rivets.
- Rivet head deformation. This is because the secondary head does not have the right form in terms of its shape. The use of a dolly helps to keep the head of a rivet in place and to avert any kind of deformation on it.
- Cracked or damaged materials may be caused by the use of wrong heat treatment methods, which may result in going beyond the required tensile stress. Cracks may also be as a result of using materials that do not have the same structural properties.
- ·Corrosion is usually another complication that might destroy a given material or rivet. Protection from corrosion is crucial when using rivets to connect two materials. It occurs when metal reacts with oxygen and may be prevented using nickel plating, copper plating, or zinc plating, which should not be exposed to temperatures exceeding 2500C. Also, to avoid galvanic corrosion, metals with similar electronic capability or in a similar galvanic series should be used.
In conclusion, the selection of the right rivets and installing them in the right way are very crucial in the production of various parts. Rivets can be used instead of bolts or screws or nuts to join various parts of a device. Rivets come in different sizes and shapes to fit different roles in the manufacturing industry today. CNC machining which is a process used in rapid prototyping also uses rivets in the joining of various parts in the manufacturing process. Mold manufacturing also is part of CNC machining whereby mold designs help in the creation of various parts.
