The use of plastic molds plays a significant role in the miniaturization of electronics by enabling the creation of intricate and precise components that are essential for shrinking the size of electronic devices. Here's how plastic molds contribute to miniaturization:

1. Precision and Consistency: Plastic molding techniques, such as injection molding, allow for the production of highly precise and consistent components. This precision is crucial when miniaturizing electronics, as even small deviations in size or shape can negatively impact the overall functionality of the device. Plastic molds ensure that each component is accurately replicated, contributing to the tight tolerances required for miniaturization.

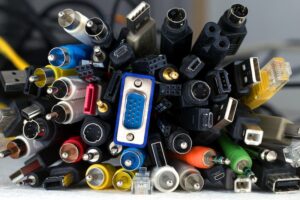

2. Complex Geometries: Miniaturized electronic devices often feature intricate and complex designs with tight spaces and intricate features. Plastic molds can create components with intricate geometries, such as tiny connectors, microfluidic channels, and fine details that are difficult to achieve using traditional manufacturing methods. This capability allows designers to optimize the use of space and pack more functionality into a smaller footprint.
3. Customization: Plastic molds can be customized to create components tailored to specific device requirements. As devices become smaller and more specialized, the ability to design and manufacture unique components becomes essential. Plastic molding enables the production of custom-designed parts, ensuring that each component is optimized for its intended purpose within the miniature electronics.
4. Material Selection: Plastic molding techniques offer a wide range of material options, including various types of thermoplastics and elastomers. These materials can be chosen based on their mechanical, thermal, and electrical properties, allowing designers to select materials that are lightweight, durable, and suitable for miniaturized electronics.

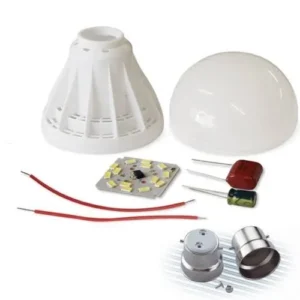

5. Integration of Multiple Functions: Miniaturization often involves integrating multiple functions into a single component. Plastic molds enable the creation of complex structures that combine various functionalities, such as housing intricate circuitry, connectors, and sensors within a single compact component.
6. Reduced Weight: Plastic materials are generally lightweight compared to metals and other materials commonly used in electronics. By utilizing plastic molds to manufacture lightweight components, the overall weight of the device can be reduced, making it more portable and convenient for users.
7. Assembly Efficiency: Miniaturized electronics require efficient assembly processes. Plastic molding allows for the creation of components that are designed to fit together seamlessly, reducing the need for complex assembly steps. This efficiency in assembly is crucial for maintaining cost-effectiveness and consistent quality in mass production.
8. Reduced Space for Components: Plastic molding allows for precise control over the size and shape of components. This capability is especially important in miniaturization, where every millimeter of space matters. Plastic molds enable designers to create components that fit perfectly within the available space, optimizing the layout of the device.
9. Cost-Effective Mass Production: Plastic molding is a highly scalable manufacturing process that is well-suited for mass production. As the demand for miniaturized electronics increases, plastic molding enables the production of large quantities of consistent, high-quality components at a cost-effective rate.

In essence, the use of plastic molds empowers designers and manufacturers to create smaller, more efficient, and highly functional electronic devices. By providing the tools to produce precise, customized, and intricately designed components, plastic molding techniques are instrumental in driving the ongoing trend of miniaturization in the electronics industry.

 Image courtesy: https://www.xometry.com/resources/injection-molding/plastic-injection-molding-materials/

Several types of plastic materials are commonly used in electronic plastic molds, each offering distinct properties that make them suitable for specific applications within the electronics industry. The choice of material depends on factors such as the desired mechanical properties, thermal characteristics, chemical resistance, and cost-effectiveness of the final component. Here are some of the most commonly used materials:

1. Polypropylene (PP): Polypropylene is a thermoplastic known for its versatility and cost-effectiveness. It is chosen for electronic components that require good resistance to chemicals and heat. PP's lightweight nature and low moisture absorption make it suitable for battery cases, where it can protect internal components from potential leaks or chemical interactions. Its ability to maintain its mechanical properties over a wide temperature range also makes it valuable in cable insulation, ensuring reliable signal transmission.
2. Polyethylene (PE): High-density polyethylene (HDPE) is a type of polyethylene known for its toughness, low moisture absorption, and chemical resistance. It is often used in wire and cable insulation to shield conductors from moisture, chemicals, and mechanical stress. HDPE's resistance to abrasion and impact makes it ideal for applications where components might be exposed to rugged environments, such as outdoor installations.

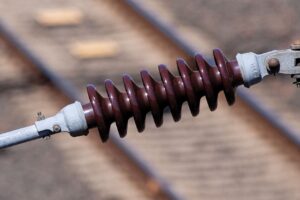

3. Polyvinyl Chloride (PVC): PVC is a widely used plastic with excellent flame resistance and electrical insulation properties. In the electronics industry, PVC is commonly employed for wire insulation, providing protection against electrical shorts and maintaining signal integrity. Additionally, PVC's affordability and ease of processing make it suitable for casings of certain electronic devices, ensuring a degree of impact resistance while containing potential fire hazards.
4. Polystyrene (PS): Polystyrene is valued for its rigidity, ease of molding, and ability to create detailed features. In the realm of electronics, it is often used for cases that protect small electronic components such as connectors and microcontrollers. The lightweight yet protective nature of PS is beneficial in enclosing these delicate components while maintaining an efficient use of space within miniaturized devices.
5. Polyamide (PA or Nylon): Nylon is a versatile plastic with excellent mechanical properties, including high tensile strength and resistance to impact. In electronics, nylon is used for components that demand durability and strength, such as connectors, sockets, and enclosures. Its heat resistance and dimensional stability also contribute to its use in applications where parts might be subjected to varying temperatures or thermal cycling.
6. Polycarbonate (PC): Polycarbonate is recognized for its high impact strength, transparency, and ability to maintain its properties over a wide temperature range. In electronics, PC is often selected for light covers, display windows, and transparent components. Its ability to transmit light efficiently while offering protection against impacts is particularly useful in applications such as LED indicators and device displays.
7. Acrylonitrile Butadiene Styrene (ABS): ABS is known for its balanced combination of impact resistance, ease of molding, and affordability. It is commonly used for enclosures of electronic devices, providing protection against mechanical stress and impacts. Its good dimensional stability and resistance to environmental factors make it suitable for components that require consistent performance in a variety of conditions.
8. Polyetheretherketone (PEEK): PEEK is a high-performance thermoplastic with exceptional mechanical and thermal properties. It is chosen for demanding electronic applications where extreme temperatures and harsh environments are a concern. PEEK's high heat resistance, low moisture absorption, and excellent electrical insulation properties make it ideal for connectors, insulators, and components in aerospace, automotive, and industrial electronics.

By carefully considering the properties of each plastic material and matching them to the specific requirements of electronic components, manufacturers can create parts that contribute to the overall functionality, durability, and safety of the devices. The diverse range of plastic materials available for electronic plastic molds allows designers to tailor their choices to meet the unique challenges posed by miniaturized electronics and demanding operating conditions.

The design process for an electronic plastic mold is a critical phase that involves several stages to ensure the successful production of high-quality components. This process combines engineering principles, material science, and manufacturing expertise to create molds that can efficiently produce electronic components with precise dimensions, functional features, and consistent quality. Here's how the design process for an electronic plastic mold works:

1. Conceptualization and Requirements Gathering:

   The design process begins with a clear understanding of the requirements for the electronic component to be manufactured using the mold. Engineers work closely with product designers and stakeholders to gather specifications such as component size, shape, functionality, material preferences, environmental conditions, and regulatory standards.

1. Design Concept Development:

   Based on the gathered requirements, designers and engineers create design concepts that outline the general layout, features, and overall structure of the mold. This phase involves considering factors such as parting lines, gating systems (how the plastic will be injected into the mold), ejection methods, and cooling systems.

1. Computer-Aided Design (CAD) Modeling:

   Using specialized software, designers create detailed 3D CAD models of the mold components. These models include every aspect of the mold, such as cavities, cores, ejector pins, cooling channels, and parting surfaces. The CAD models allow for precise visualization, analysis, and modification of the mold design before manufacturing.

1. Mold Flow Analysis:

   Mold flow simulation software is often used to analyze how the molten plastic will flow and fill the mold cavities during the injection molding process. This analysis helps identify potential issues such as air traps, flow imbalances, and material variations, allowing engineers to optimize the design for uniform filling and minimal defects.

1. Tooling Design and Manufacturing:

   Once the mold design is finalized, tooling engineers create detailed plans for manufacturing the mold components. This involves machining or fabricating the various mold parts from durable materials like steel or aluminum. Precision tooling ensures that the mold can withstand the high pressures and temperatures of injection molding without deformation.

1. Assembly and Testing:

   The mold components are assembled according to the design specifications. Once assembled, the mold undergoes rigorous testing to ensure that all moving parts function as intended. This may involve verifying the opening and closing of the mold, ejection mechanisms, and cooling systems.

1. Sampling and Validation:

   Before full-scale production begins, a sampling phase is conducted. A small number of test runs are performed using the mold to produce actual plastic components. These samples are carefully inspected and analyzed for any defects, dimensional accuracy, and other quality issues. Adjustments to the mold design or process parameters may be made based on the results.

1. Optimization and Refinement:

   Feedback from the sampling phase is used to refine the mold design and injection molding process. This iterative optimization process helps ensure that the mold produces consistent, high-quality components at the desired production rate.

1. Documentation:

   Detailed documentation of the mold design, specifications, operating procedures, and maintenance guidelines is created. This documentation is crucial for maintaining the mold's performance, conducting repairs, and ensuring consistent production quality over time.

1. Full-Scale Production:

    Once the mold design has been validated and optimized, full-scale production can commence. The mold is installed in an injection molding machine, and the manufacturing process is set up to produce the desired electronic components in high volumes while maintaining consistent quality.

The design process for an electronic plastic mold is a collaborative effort involving designers, engineers, tooling experts, and manufacturing professionals. It requires a deep understanding of material properties, injection molding principles, and manufacturing constraints to create molds that enable the efficient and reliable production of electronic components meeting the required specifications.

Designing a plastic mold for an electronic component is a complex and meticulous process that requires careful consideration of various factors to ensure successful manufacturing and high-quality end products. Here are the key considerations when designing a plastic mold for an electronic component:

1. Component Requirements:

   Thoroughly understand the functional and aesthetic requirements of the electronic component. Consider factors like geometric complexity, surface finish, mechanical properties, and any unique features that need to be incorporated, such as threads, logos, or labels. Clear requirements will guide the mold design and material selection process.

1. Material Selection:

   Evaluate the mechanical, thermal, and electrical properties of various plastic materials to select the most suitable one for the component. Consider factors like material compatibility with any chemicals or environmental conditions it might be exposed to, and its ability to withstand temperature fluctuations during manufacturing and use.

1. Mold Configuration:

   Decide on the number of cavities based on production volume requirements and the complexity of the part. Optimize the arrangement of cavities to minimize material wastage and maximize production efficiency. Determine the best parting line location to ensure smooth ejection of parts without affecting their aesthetics or functionality.

1. Draft Angles:

   Integrate appropriate draft angles into the mold design to enable easy ejection and prevent damage to the part. Draft angles facilitate the removal of the part from the mold without causing deformation or surface defects.

1. Cooling System Design:

   Design an efficient cooling system that evenly dissipates heat from the mold to prevent warping and ensure consistent part quality. Optimize the placement, size, and shape of cooling channels to maintain uniform cooling and reduce cycle times.

1. Ejection Mechanism:

   Carefully plan the ejection system to avoid stressing or damaging the part during removal. Implement well-positioned ejector pins, sleeves, or air ejectors that provide uniform ejection force without compromising part integrity.

1. Venting and Air Traps:

   Strategically design venting systems to facilitate the escape of air and gases during injection. Proper venting prevents air traps, voids, and cosmetic defects on the part's surface, ensuring a high-quality end product.

1. Mold Surface Finish:

   Choose a surface finish that aligns with the component's functional and aesthetic requirements. Consider factors such as part release, cosmetic appearance, and ease of post-processing. Textured surfaces can enhance grip or hide imperfections, while polished surfaces can reduce friction during ejection.

1. Tolerances and Dimensional Accuracy:

   Define tight but achievable tolerances to ensure the electronic component fits within its intended assemblies and functions correctly. Consider the material's shrinkage during cooling and how it might affect final dimensions. Overly tight tolerances can lead to production challenges and quality issues.

1. Part Quality and Defect Prevention:

     Implement gating systems that distribute molten plastic evenly to prevent flow imbalances and defects like sink marks or voids. Optimize gate locations and sizes to ensure uniform filling of cavities and minimize stress concentrations.

1. Assembly and Alignment:

     Design features that aid accurate alignment during assembly, such as guiding pins, tabs, or slots. Consider any mating parts and their potential impact on assembly accuracy and overall device functionality.

1. Maintenance and Repair:

     Incorporate features that simplify mold maintenance, such as removable inserts or easily accessible cooling channels. A design that facilitates quick repairs and maintenance helps minimize downtime and ensures consistent production.

1. Simulation and Analysis:

     Utilize advanced simulation tools to predict how the plastic will flow and behave during injection molding. Analyzing potential issues like weld lines, air traps, and underfilled areas can guide design modifications and prevent manufacturing defects.

1. Manufacturability and Cost Efficiency:

     Strive for a design that balances functionality, aesthetics, and manufacturability. Complex mold designs can lead to longer production times and higher costs, so consider how design choices impact the ease of fabrication and the overall production budget.

1. Regulatory Compliance:

     Ensure that the mold design aligns with industry standards and regulations applicable to the intended use of the electronic component. This is especially important if the component is intended for industries with strict quality and safety requirements.

The design process for a plastic mold demands a holistic approach, involving collaboration among designers, engineers, material experts, and production professionals. By carefully addressing these considerations, the resulting mold design will be well-equipped to produce high-quality electronic components that meet performance, reliability, and regulatory requirements..

Ensuring the quality of an electronic plastic mold is crucial for producing consistent, defect-free components and achieving a reliable manufacturing process. Quality control measures should be implemented throughout the mold design, fabrication, and production stages. Here's how you can ensure the quality of an electronic plastic mold:

1. Design Verification:

   Utilize advanced computer-aided design (CAD) software to create a detailed and accurate representation of the mold design. Conduct virtual simulations and mold flow analysis to visualize how molten plastic will behave during injection. This early verification process helps identify potential design flaws, such as inadequate cooling or filling imbalances, allowing for modifications before the physical mold is created.

1. Material Selection:

   Collaborate with material experts to select high-quality materials for mold fabrication. Consider factors like hardness, wear resistance, thermal conductivity, and dimensional stability. Choosing materials that can withstand the stresses and temperatures of injection molding ensures the longevity and performance of the mold.

1. Experienced Design Team:

   Assemble a skilled design team that possesses in-depth knowledge of mold design principles, injection molding processes, and the nuances of electronic component manufacturing. Experienced designers can anticipate potential challenges, optimize design features for manufacturability, and ensure that the mold meets the exact requirements of the electronic component.

1. Precision Manufacturing:

   Partner with reputable mold manufacturers or tooling experts who employ advanced machining techniques and state-of-the-art equipment. Precision manufacturing ensures that mold components are fabricated to exact specifications, minimizing deviations from the design and maintaining dimensional accuracy.

1. Quality Control Checks during Fabrication:

   Integrate quality checks at key stages of mold fabrication, including the machining of individual components. Regular inspections, measurements, and tolerance verifications help catch any discrepancies early in the process, preventing costly issues later on.

1. Mold Assembly Inspection:

   Conduct meticulous inspections during the assembly of mold components. Verify that all parts fit together seamlessly, are properly aligned, and operate as intended. Thorough assembly inspections prevent problems that may arise from misaligned or malfunctioning components during production.

1. Simulation and Testing:

   Utilize advanced simulation tools and software to perform comprehensive mold flow simulations and analyses. Simulate various scenarios to anticipate potential molding challenges and defects. Adjust the mold design, gating, and cooling systems based on simulation results to optimize the molding process.

1. Prototyping and Sampling:

   Develop prototype molds or conduct limited production runs to generate test samples. Inspect these samples rigorously for defects, dimensional accuracy, and consistency. Any issues identified can be addressed by refining the mold design and process parameters.

1. Quality Control Plan:

   Develop a robust quality control plan that outlines inspection points, measurement methods, acceptance criteria, and testing procedures at every stage of the mold production and component manufacturing process. This plan ensures consistency and adherence to quality standards.

1. In-Process Inspections:

    Implement routine in-process inspections during actual production. Skilled operators and inspectors monitor the injection molding process, checking for defects, flash, part warping, and other issues as they arise.

1. Dimensional Checks:

    Regularly perform dimensional checks on produced components using precision measuring tools such as calipers, micrometers, and coordinate measuring machines (CMMs). These checks ensure that the parts adhere to specified tolerances and maintain accurate dimensions.

1. Visual Inspection:

    Train quality control personnel to conduct visual inspections of each component. Skilled inspectors identify cosmetic defects, surface imperfections, or any visible signs of molding defects that may affect the component's aesthetics or functionality.

1. Regular Maintenance:

    Develop a comprehensive maintenance schedule for the mold to prevent wear, corrosion, and degradation. Routine maintenance activities, such as cleaning, lubrication, and mold surface polishing, contribute to consistent performance and prolonged mold life.

1. Root Cause Analysis:

    If defects or quality issues occur, initiate a systematic root cause analysis to identify the underlying reasons. Addressing the root causes allows you to implement effective corrective actions and prevent similar issues from reoccurring in the future.

1. Documentation and Records:

    Maintain meticulous records of all quality control checks, inspection results, maintenance activities, modifications, and any deviations from the standard processes. Detailed documentation assists in tracking the mold's history, performance, and improvement efforts over time.

1. Employee Training:

    Invest in continuous training for production and quality control personnel. Regular training sessions on mold handling, maintenance protocols, quality assurance methods, and industry best practices enhance employee competence and ensure consistent adherence to quality standards.

By meticulously implementing these strategies to ensure mold quality, you establish a solid foundation for consistently producing high-quality electronic components that meet design specifications, regulatory requirements, and customer expectations. A rigorous approach to quality control contributes to efficient manufacturing processes, minimized defects, and overall customer satisfaction.

Designing an electronic plastic mold involves various cost factors that influence the overall budget of the project. These factors encompass different stages of the design process and have implications on material selection, fabrication, quality, and overall efficiency. Here are key cost factors in electronic plastic mold design:

1. Material Selection:

   The choice of material for the mold components significantly impacts the cost. High-quality materials with excellent wear resistance, thermal conductivity, and dimensional stability tend to be more expensive. Balancing material performance with cost considerations is essential to ensure optimal mold longevity and performance.

1. Design Complexity:

   The complexity of the mold design directly affects the cost. More intricate designs with complex geometries, undercuts, and intricate features require advanced machining techniques and longer fabrication times, leading to higher expenses.

1. Machining and Fabrication Costs:

   The fabrication process involves machining, CNC milling, EDM (electrical discharge machining), and other precision techniques. Complex mold designs, intricate parting lines, and tight tolerances increase machining time and labor costs.

1. Tooling and Equipment:

   Investment in specialized tooling and equipment for mold manufacturing, such as CNC machines, EDM machines, and inspection tools, contributes to upfront costs. The cost of maintaining and operating these tools should also be factored in.

1. Prototyping and Iteration:

   Developing prototype molds or conducting iterative design refinements during testing can incur additional costs. However, these investments often lead to improved mold performance, better part quality, and reduced defects in the long run.

1. Simulation and Analysis Tools:

   Utilizing mold flow simulation software and other analysis tools for design optimization incurs software licensing costs. These tools are essential for identifying potential defects, optimizing gate placements, and ensuring uniform filling.

1. Expertise and Labor Costs:

   Hiring skilled designers, engineers, and tooling experts with experience in mold design contributes to higher labor costs. Expertise is crucial for producing molds that meet design specifications and maintain efficient production.

1. Quality Control Measures:

   Implementing rigorous quality control measures, including inspections, testing, and mold flow simulations, adds to the overall cost. However, these measures prevent defects, ensure consistent part quality, and minimize the risk of costly rework or production delays.

1. Prototyping and Sampling:

   Creating prototype molds or conducting limited production runs for sampling purposes involves additional expenses. These prototypes help validate the mold design and address any issues before full-scale production.

1. Material Waste:

    The injection molding process involves some material waste during setup, color changes, and purging. Minimizing material waste through efficient production planning and optimized molding parameters helps control costs.

1. Maintenance and Repairs:

    Regular maintenance, repair, and replacement of mold components due to wear and tear contribute to ongoing costs. Proper maintenance helps extend the mold's lifespan and maintain consistent part quality.

1. Production Efficiency:

    The design's impact on production efficiency affects costs. Well-designed molds with optimized cooling systems, gate placements, and ejection mechanisms contribute to higher production rates and lower operational costs.

1. Supplier and Vendor Selection:

    Collaboration with reputable mold manufacturers and suppliers might incur higher initial costs but can yield better results in terms of mold quality, lead times, and long-term support.

1. Regulatory Compliance:

    Ensuring that the mold design complies with industry standards and regulations might require additional testing, documentation, and validation, leading to extra costs.

1. Time-to-Market:

    Faster design iterations and prototyping phases might lead to quicker time-to-market but could involve increased costs due to accelerated development efforts.

1. Post-Processing and Finishing:

    Consider any post-processing steps required after molding, such as surface finishing, painting, or coating. These steps can add to the overall cost but may enhance the component's aesthetics and performance.

Balancing these cost factors is essential to achieve an optimal mold design that meets quality standards, production efficiency goals, and budget constraints. Collaborative decision-making involving designers, engineers, and stakeholders is key to striking this balance effectively.

The choice of plastic molding technique has a significant impact on the properties of an electronic component. Different molding techniques offer varying levels of precision, material characteristics, production speed, and cost. Depending on the specific requirements of the electronic component, the chosen molding technique can influence its mechanical, thermal, electrical, and aesthetic properties. Here's how different molding techniques affect the properties of electronic components:

1. Injection Molding:

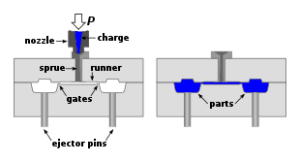

 Image courtesy: https://en.wikipedia.org/wiki/Injection_moulding

- Properties Influenced: Injection molding is widely used and offers excellent dimensional accuracy and surface finish. It can produce complex geometries and intricate features, ensuring tight tolerances and precise part dimensions. This technique is often used for small to medium-sized components with fine details.

   - Material Characteristics: Injection molding uses high pressures and temperatures to melt and inject plastic into a mold cavity. This can affect the material's crystallinity, which in turn impacts mechanical properties such as tensile strength, impact resistance, and stiffness.

   - Surface Finish: Injection molding generally produces parts with smooth surfaces. Additional surface treatments, like texture or polishing, can further enhance the aesthetics and functionality of the component.

1. Compression Molding:

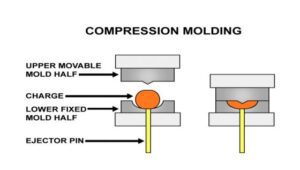

Image courtesy: https://www.martins-rubber.co.uk/blog/advantages-and-disadvantages-of-compression-moulding/

   - Properties Influenced: Compression molding is suitable for producing larger components or parts with intricate shapes. It offers good dimensional stability and strength.

   - Material Characteristics: The applied pressure and heat in compression molding result in parts with a more uniform and controlled material structure. This can lead to enhanced mechanical properties and reduced porosity compared to other molding techniques.

   - Surface Finish: Compression molding may result in parts with textured surfaces due to the nature of the molding process.

1. Transfer Molding:

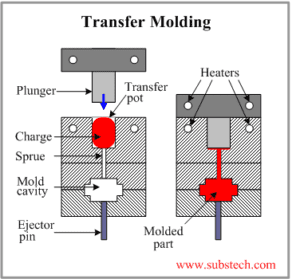

Image courtesy: https://www.substech.com/dokuwiki/doku.php?id=transfer_molding_of_polymers

   - Properties Influenced: Transfer molding is used for encapsulating electronic components. It provides excellent protection against environmental factors like moisture and contaminants.

   - Material Characteristics: Transfer molding involves preheating plastic material before transferring it to the mold cavity. This process can help reduce material degradation and improve material flow, leading to parts with better structural integrity.

   - Sealing and Encapsulation: Transfer molding provides a hermetic seal, protecting electronic components from moisture, dust, and other external elements. The encapsulating material's properties can impact the component's resistance to environmental stress.

1. Overmolding:

Image courtesy: https://jayconsystems.com/blog/the-advantages-and-disadvantages-of-overmolding

- Properties Influenced: Overmolding involves placing one material over another, often for adding soft-touch features or incorporating multiple materials for different functionalities.

   - Material Characteristics: Overmolding allows for combining materials with different properties. For instance, a rigid plastic substrate can be combined with a soft elastomer to create ergonomic grips or seals.

   - Aesthetics and Functionality: Overmolding enhances the component's aesthetic appeal and can add functional features like grip, cushioning, or water resistance.

1. Insert Molding:

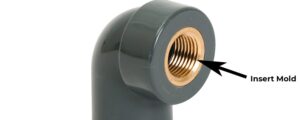

Image courtesy: https://jayconsystems.com/blog/how-does-insert-molding-work

   - Properties Influenced: Insert molding involves embedding metal or other materials into the plastic component.

   - Material Interaction: The choice of the insert material and the plastic material used for molding should be compatible. The interaction between the two materials can influence properties like adhesion, thermal conductivity, and electrical insulation.

   - Mechanical Integration: Insert molding allows for mechanical integration, such as adding metal contacts to electronic components, which can influence electrical conductivity and overall performance.

1. Thermoforming:

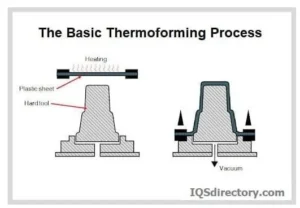

 Image courtesy: https://www.iqsdirectory.com/articles/vacuum-forming/thermoforming.html

  - Properties Influenced: Thermoforming is used for producing thin plastic components with simple geometries.

   - Material Stretching: Thermoforming involves heating and stretching plastic sheets. This stretching can alter the material's molecular structure, affecting properties like tensile strength and impact resistance.

   - Thickness and Rigidity: Thermoformed components can have varying thicknesses and degrees of rigidity based on the design and stretching process.

In summary, the choice of plastic molding technique directly influences the properties of electronic components. Each technique offers unique benefits and considerations in terms of dimensional accuracy, mechanical strength, thermal performance, surface finish, and functionality. Proper selection of the molding technique should align with the specific requirements of the electronic component, ensuring that the desired properties are achieved while considering production efficiency and cost-effectiveness.

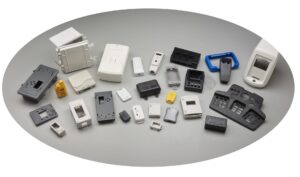

 Image courtesy: https://app-nh.com/markets-electronics/

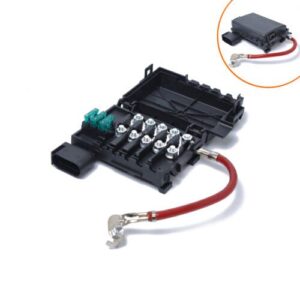

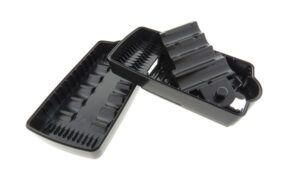

Plastic molds play a crucial role in the production of electronic enclosures, which are protective housings that house electronic components and devices. These enclosures provide physical protection, shielding from environmental factors, and often contribute to the aesthetic appeal of the final product. Plastic molds enable efficient and precise manufacturing of electronic enclosures with consistent quality and performance. Here's how plastic molds are used in the production of electronic enclosures:

1. Mold Design:

   The process begins with the design of the plastic mold. Engineers and designers create a mold design that incorporates the desired enclosure geometry, features, and specifications. Factors such as the size, shape, wall thickness, internal structures, and mounting features are considered during the mold design phase.

1. Material Selection:

   Plastic molds for electronic enclosures are typically made from high-quality tool steels or alloys that can withstand the stresses and temperatures of injection molding. The choice of mold material ensures durability, dimensional stability, and optimal mold performance over multiple production cycles.

1. Injection Molding:

   Injection molding is the primary technique used for producing electronic enclosures. The process involves injecting molten plastic material into the mold cavity under high pressure. The plastic material fills the mold cavities, taking the shape of the enclosure design.

1. Mold Fabrication:

   The mold design is translated into physical mold components through precision machining processes. CNC milling, EDM, and other techniques are used to create the mold's core and cavity. The mold components are then assembled, aligning with the design specifications.

1. Material Injection:

   The plastic material, often in the form of pellets or granules, is melted and injected into the mold cavity. The injection process is carefully controlled to ensure uniform filling and consistent part quality.

1. Cooling and Solidification:

   Cooling channels within the mold help dissipate heat and facilitate the solidification of the molten plastic. Proper cooling ensures that the enclosure components solidify uniformly and maintain their dimensional accuracy.

1. Ejection and Demolding:

   Once the plastic has solidified, the mold is opened, and the ejection mechanism removes the enclosure components from the mold cavities. Ejector pins or sleeves push the components out without causing damage.

1. Quality Control:

   The produced enclosure components undergo rigorous quality control checks. Visual inspections, dimensional measurements, and functional tests ensure that the enclosures meet the required specifications, tolerances, and performance criteria.

1. Secondary Operations:

   Depending on the design and application, secondary operations such as trimming, deburring, surface finishing, and assembly might be performed to enhance the aesthetics and functionality of the enclosures.

1. Production Efficiency:

    The efficient design of the mold, including gate placements, cooling channels, and ejection systems, contributes to high production efficiency and consistent part quality. Optimized mold design minimizes cycle times and reduces the likelihood of defects.

1. Scalability and Reproducibility:

    Plastic molds enable mass production of electronic enclosures with consistent quality and performance. Once a mold is designed and validated, it can be used to produce a large volume of enclosures with minimal variation.

1. Customization and Innovation:

    Plastic molds offer flexibility for creating enclosures with various sizes, shapes, textures, and custom designs. This allows manufacturers to customize enclosures to meet the specific needs of electronic devices and systems while maintaining a distinct brand identity.

In summary, plastic molds are integral to the production of electronic enclosures. They enable efficient, precise, and scalable manufacturing of enclosures that provide protection, aesthetics, and functionality to electronic components and devices. By leveraging advanced mold design and injection molding techniques, manufacturers can produce enclosures that contribute to the durability, performance, and visual appeal of electronic products.

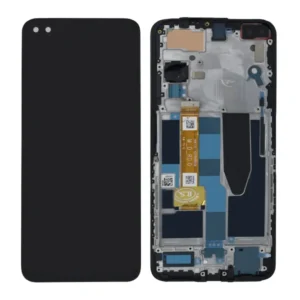

Image courtesy: https://www.touchlcdbaba.com/realme/realme-x3-superzoom-display-with-frame.html

Plastic molds are pivotal in the production of electronic display components, contributing to their structure, functionality, and aesthetics. The precise design and manufacturing of these molds ensure the creation of high-quality components for electronic displays. Let's explore how plastic molds are used for different electronic display components:

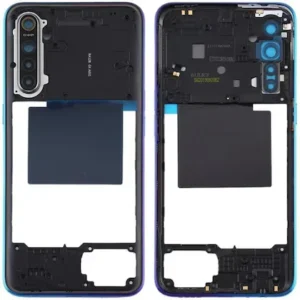

1. Screen Frames and Bezels:

   Plastic molds are employed to fabricate the frames or bezels that encompass the display screen. These components provide a polished appearance to the device and serve as protective elements, safeguarding the delicate edges of the screen. The molds allow for accurate replication of complex shapes, including curves, corners, and attachment points for connectors.

1. Backlight Diffusers:

   In LCD displays, backlight diffusers are essential for achieving uniform brightness across the screen. Plastic molds are used to create these diffusers, ensuring that they have precisely engineered surface structures. The mold design accounts for the scattering properties necessary to evenly distribute the backlight's illumination.

1. Light Guides:

   Edge-lit displays require light guides to efficiently direct light from the edges of the screen towards the center, ensuring even illumination. Plastic molds are used to shape these guides with precision. The mold design focuses on achieving the desired light-guiding properties to avoid losses and achieve optimal brightness distribution.

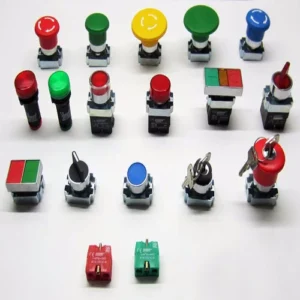

1. Button and Control Components:

   Plastic molds contribute to the production of buttons and control components used to operate the display. These molds are designed to create consistent shapes with tactile feedback for user interaction. They consider factors like button dimensions, textures, and mechanical properties to ensure a reliable user experience.

1. Protective Covers:

   Some electronic displays incorporate protective covers to shield the screen from scratches, impacts, and environmental elements. Plastic molds are utilized to produce these covers, which may have additional features like anti-reflective coatings or special optical properties. The mold's precision ensures a snug fit and clear visibility.

1. Housing Components:

   Housing components such as the back cover or stand are integral parts of electronic displays. Plastic molds are used to manufacture these structural elements, taking into account factors like mechanical strength, dimensions, and attachment mechanisms. The molds enable the creation of components that provide support and stability to the display device.

In the process of using plastic molds for electronic display components:

- Mold Material Selection: The plastic material chosen for the mold affects the quality of the final components. It should have properties that facilitate smooth release from the mold, high heat resistance, and dimensional stability.

- Mold Design: Molds are meticulously designed with attention to detail, accommodating the specific geometry and features of each component. The design includes considerations for parting lines, ejector pin placement, cooling channels, and any required surface finishes.

- Injection Molding Process: The chosen plastic material is melted and injected into the mold cavity under high pressure. This process ensures that the molten plastic takes on the mold's shape accurately.

- Cooling and Ejection: Once the plastic has cooled and solidified within the mold, the mold is opened, and the newly formed component is ejected. The mold's precision guarantees the component's desired dimensions and features.

- Quality Control: The components produced are subject to quality control measures to ensure they meet design specifications. Defects like surface imperfections, warping, or incorrect dimensions are identified and rectified.

By employing plastic molds in the production of electronic display components, manufacturers can achieve consistent, high-quality results with efficiency and cost-effectiveness. The flexibility of plastic molding allows for customization to meet various requirements, from mechanical properties to optical performance, contributing to the overall functionality and aesthetics of electronic displays.
