3D printing, also known as additive manufacturing, is a ground-breaking technology that allows the creation of three-dimensional objects from digital designs. The process begins with the design phase, where a 3D model is generated using computer-aided design (CAD) software or obtained from online repositories. Once the model is ready, it is sliced into thin horizontal layers using specialized slicing software. The slicing process converts the 3D model into a set of instructions in the form of G-code, which serves as a blueprint for the 3D printer.
The actual printing process takes place in the 3D printer, which reads the G-code and begins constructing the object layer by layer. Depending on the type of 3D printer, various materials are used, such as plastic filaments, resin, metal powders, or ceramics. The printer's nozzle or laser follows the instructions from the sliced model and precisely deposits the material in a specific pattern, gradually building the object from the bottom up.
The solidification process is crucial in 3D printing. For plastic and metal printing, the material is typically melted and then solidified to form each layer. In contrast, resin-based printers use ultraviolet (UV) light to cure the resin and solidify each layer. The layer-by-layer approach enables the creation of intricate and complex designs that would be challenging or impossible to achieve using traditional manufacturing methods.
Once the printing is complete, the object may require post-processing. This step involves removing any support structures that were used to stabilize overhanging parts during printing, as well as sanding, painting, or assembling multiple printed components to create the final product.
The versatility and potential of 3D printing have led to its adoption in a wide range of industries. In rapid prototyping, companies can quickly create and test product designs before investing in full-scale production. The medical and dental fields benefit from custom implants, prosthetics, and anatomical models tailored to individual patients' needs. Aerospace and automotive industries use 3D printing to create lightweight and complex components. In fashion and art, designers can explore innovative and artistic creations that were previously difficult to manufacture.
The continuous advancement of 3D printing technology and materials has the potential to revolutionize manufacturing and consumer industries further, allowing for increased customization, reduced waste, and enhanced product accessibility for businesses and consumers alike. As this transformative technology evolves, it holds the promise of reshaping the way we design, produce, and interact with physical objects in the future.
3D printing, often referred to as additive manufacturing, operates by constructing three-dimensional objects layer upon layer, starting from a digital design. Let's take you through a detailed breakdown of the process:
- Design: The design phase is a critical step in 3D printing. It involves creating a digital 3D model of the object you want to print. This can be done using specialized computer-aided design (CAD) software, which provides a virtual workspace where you can manipulate and shape the model according to your requirements. CAD software allows you to precisely define dimensions, shapes, and intricate details of the object. Some advanced CAD programs also offer simulation tools to check for potential design flaws before actual printing.
- Slicing: Once the 3D model is complete, it needs to be prepared for printing. This preparation involves slicing the 3D model into thin horizontal layers, often with a thickness ranging from micrometers to millimeters. The slicing process is crucial as it determines the level of detail and surface smoothness of the final printed object. Slicing software generates a series of 2D cross-sectional images, also known as "slices," and creates a set of instructions in the form of G-code. The G-code contains precise coordinates and movement commands that guide the 3D printer on how to build each layer.
- Printing: With the G-code ready, the 3D printer can begin the actual printing process. There are various types of 3D printers available, each utilizing different technologies and materials. The most common types include Fused Deposition Modeling (FDM), Stereolithography (SLA), Selective Laser Sintering (SLS), and Metal 3D Printing.
- Layer by Layer: The magic of 3D printing lies in the layer-by-layer approach. The 3D printer's build platform lowers with each new layer, and the printing mechanism, such as a nozzle or a laser, follows the G-code instructions to deposit material onto the platform. The material adheres to the previous layer, and the printer continues this process until the entire object is complete. The layer-by-layer process enables the creation of complex shapes and structures that traditional manufacturing methods struggle to achieve.
- Solidification: The materials used in 3D printing can be diverse. In FDM printing, thermoplastic filaments are melted and deposited through a nozzle. The material cools and solidifies rapidly, bonding with the layer beneath it. In SLA printing, liquid photopolymer resin is exposed to UV light, causing it to solidify layer by layer. SLS printing uses powdered materials, like nylon or metal, which are selectively fused together by a laser to form each layer. In metal 3D printing, metal powders are melted using lasers or electron beams to create solid layers.
- Bonding (optional): In certain 3D printing methods, especially those involving metal materials, additional steps may be required for optimal bonding between layers. For example, in Direct Metal Laser Sintering (DMLS), the printed metal object might undergo a stress-relieving process to improve its mechanical properties. This step ensures that the final printed object has structural integrity and meets the desired specifications.
- Post-Processing: After printing, the object may undergo post-processing to refine its final appearance and functionality. This can include removing any support structures used to stabilize overhanging parts during printing. Support structures are often printed in a different material that is easier to remove. Post-processing may also involve sanding the object to achieve a smoother surface finish or applying additional treatments like painting, plating, or heat treatment, depending on the desired end result.
The flexibility and versatility of 3D printing have led to its widespread adoption across various industries. From rapid prototyping and customized manufacturing to medical implants and complex aerospace components, 3D printing continues to push the boundaries of innovation and shape the future of manufacturing. As technology advances and new materials are developed, the capabilities and applications of 3D printing are likely to expand even further.
3D printing technology has advanced significantly, and as a result, a wide range of materials can be used in the 3D printing process. The choice of material depends on the type of 3D printer and the specific application. Some of the commonly used materials in 3D printing include:

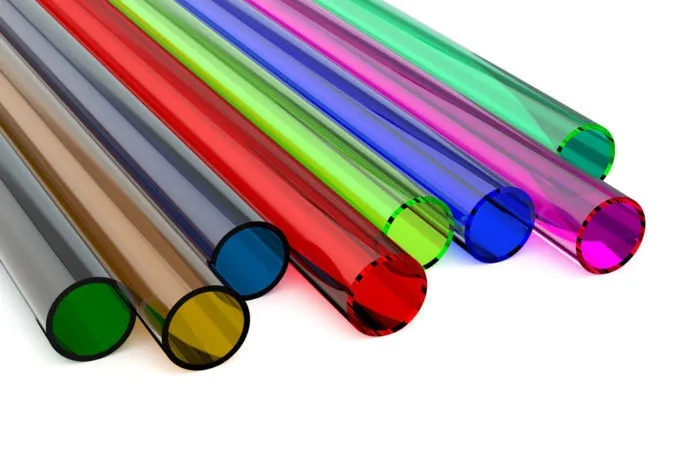

Thermoplastics are the most common materials used in 3D printing, particularly in Fused Deposition Modeling (FDM) printers. They are versatile and widely available, making them accessible for hobbyists and professionals alike. Some thermoplastics used in 3D printing include:
- PLA (Polylactic Acid): PLA is derived from renewable resources like cornstarch or sugarcane, making it environmentally friendly. It's easy to print, requires low printing temperatures, and has minimal warping. PLA is commonly used for general-purpose prototypes, hobbyist projects, and models.
- ABS (Acrylonitrile Butadiene Styrene): ABS is a durable and impact-resistant material, making it suitable for functional prototypes and parts that need to withstand stress. However, ABS can be prone to warping during printing, requiring a heated build platform and an enclosed print chamber to mitigate these issues.
- PETG (Polyethylene Terephthalate Glycol-Modified): PETG combines the desirable properties of PLA and ABS. It is strong, flexible, and offers good layer adhesion, making it suitable for mechanical parts, functional prototypes, and objects that require some flexibility.
- Nylon: Nylon is a strong, flexible, and abrasion-resistant material, commonly used in engineering applications, such as gears, bearings, and custom jigs.
- TPU (Thermoplastic Polyurethane): TPU is a flexible and rubber-like material, ideal for producing soft parts, gaskets, grips, and phone cases.
Resin-based 3D printing technologies, such as Stereolithography (SLA) and Digital Light Processing (DLP), produce highly detailed and smooth surfaces. Resins are available in various formulations to meet specific needs:
- Standard Resins: These are the most common resins used in SLA/DLP printing. They offer a good balance of detail, surface finish, and durability, making them suitable for general prototyping and detailed models.
- Engineering Resins: These resins provide higher mechanical properties, such as increased strength, impact resistance, and temperature resistance. Engineering resins are commonly used for functional prototypes and end-use parts in demanding applications.
- Dental and Medical Resins: Biocompatible resins are used for dental models, surgical guides, and medical devices. They are formulated to meet strict regulatory requirements for medical applications.
- Castable Resins: Castable resins are designed for creating patterns used in investment casting processes. They allow for the production of intricate metal parts with fine details.
Metal 3D printing, or additive manufacturing with metals, allows the production of robust and high-performance components. It is widely used in aerospace, automotive, medical, and other industries that require strong and lightweight parts. Common metals used in metal 3D printing include:
- Stainless Steel: Stainless steel is corrosion-resistant and offers good mechanical properties, making it suitable for various industrial applications, such as machinery and equipment.
- Titanium: Titanium is known for its high strength-to-weight ratio, biocompatibility, and resistance to corrosion. It is commonly used in aerospace, medical implants, and other critical applications where lightweight and strong materials are needed.
- Aluminum: Aluminum is lightweight and has excellent thermal and electrical conductivity. It is widely used in aerospace, automotive, and consumer electronics industries.
- Cobalt Chrome: Cobalt chrome alloys are known for their high strength, hardness, and heat resistance. They are commonly used in aerospace, medical, and dental applications.
- Inconel: Inconel alloys are high-temperature and corrosion-resistant, making them suitable for aerospace, gas turbines, and chemical processing industries.

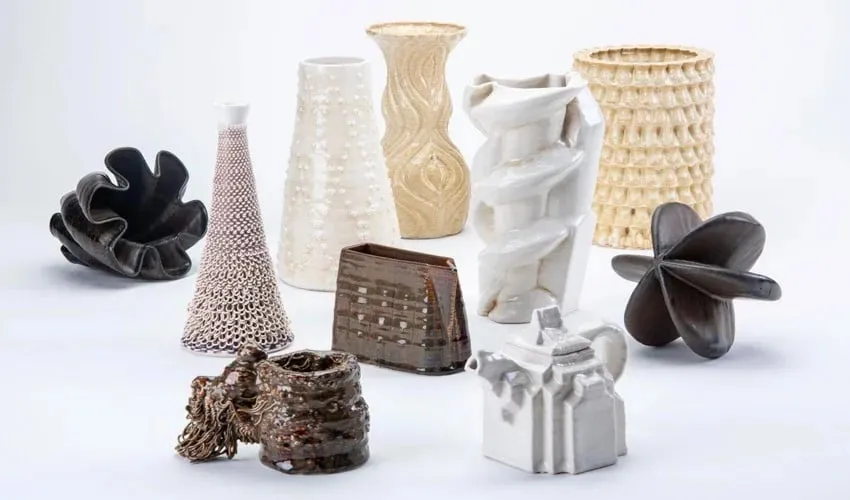

Ceramic 3D printing is a specialized area that allows for the creation of intricate and heat-resistant objects using ceramic materials. Ceramics are a broad class of materials known for their unique properties, such as high-temperature resistance, excellent electrical insulation, chemical stability, and biocompatibility. These properties make ceramics highly desirable for a wide range of applications.
In ceramic 3D printing, a paste or slurry containing ceramic particles is extruded or jetted layer by layer to build the object. After each layer is deposited, it is typically dried or cured before the next layer is added. Once the printing is complete, the object may undergo additional post-processing steps, such as sintering in a high-temperature kiln. Sintering fuses the ceramic particles together, resulting in a solid and dense ceramic object.
Ceramic 3D printing finds applications in various industries, including aerospace, where ceramics are used for lightweight and high-temperature-resistant components. In the medical field, biocompatible ceramics are used for dental restorations, bone implants, and surgical tools. Additionally, the artistic and design sectors leverage ceramic 3D printing to create intricate pottery, decorative sculptures, and custom tiles with unique patterns.
Composites in 3D printing refer to materials that combine two or more distinct components to create a material with enhanced properties. In the context of additive manufacturing, composites typically involve reinforcing a base material, such as a thermoplastic, with fibers or particles.
One popular type of composite used in 3D printing is Carbon Fiber Reinforced Polymer (CFRP), where carbon fibers are embedded in a thermoplastic matrix. CFRP offers a high strength-to-weight ratio, making it ideal for applications where lightweight and strong parts are crucial, such as aerospace and automotive industries.
Other composite materials may use materials like fiberglass, kevlar, or even metal particles to enhance various properties like stiffness, heat resistance, electrical conductivity, or wear resistance. The combination of different materials allows engineers and designers to tailor the composite to meet specific performance requirements for different applications.
- Food Materials:
Food 3D printing is an exciting and emerging application of additive manufacturing. It involves the use of edible materials, such as chocolate, sugar paste, dough, and even certain meat-based substances, to create custom food designs and culinary delights.
In food 3D printing, a food-grade 3D printer is used to deposit the edible material layer by layer, following a digital model or design. This allows chefs, bakers, and culinary enthusiasts to create intricate shapes, decorative patterns, and personalized food items. Food 3D printing can be used in various ways:
- Custom Cake Toppers: Personalized cake toppers can be created for special occasions, incorporating names, dates, or unique designs.
- Chocolate Art: Intricate chocolate designs and sculptures can be made for dessert presentations or special events.
- Pastry and Dough Creations: Food printers can create elaborate pastry designs and custom-shaped dough for various recipes.
- Meat Alternatives: Some food printers are capable of using plant-based or lab-grown meat materials to create meat alternatives with unique textures and flavors.
Food 3D printing holds great potential in the culinary world, as it allows for precise and artistic creations that were challenging to achieve using traditional culinary techniques. As the technology develops further, it could revolutionize the way food is prepared, presented, and personalized in the future.
As the technology of 3D printing progresses, the variety of materials accessible for this process continues to grow, presenting fresh opportunities for innovation in numerous industries.
Numerous 3D printing technologies exist, each employing distinctive approaches and materials to fabricate three-dimensional objects. Among the primary types of 3D printing technologies are:
- Fused Deposition Modeling (FDM) / Fused Filament Fabrication (FFF):
FDM is one of the most popular and accessible 3D printing technologies. In this process, a thermoplastic filament is fed into a heated nozzle, where it is melted and then deposited layer by layer onto the build platform. The nozzle moves in the X and Y directions, while the build platform moves in the Z direction to create the object's vertical height. FDM printers are known for their ease of use, affordability, and versatility. They can print with a wide range of materials, including PLA, ABS, PETG, Nylon, and more. FDM is widely used in prototyping, product development, DIY projects, and educational settings.
- Stereolithography (SLA):
SLA uses a vat of liquid resin, typically photopolymer, and an ultraviolet (UV) laser to selectively cure the resin layer by layer. The UV laser traces the cross-sectional shape of the object on the surface of the liquid resin, solidifying it. The build platform then moves down, and a new layer of liquid resin is recoated, and the process is repeated. SLA 3D printers can produce highly detailed and smooth surfaces, making them ideal for producing high-quality prototypes, small-scale production parts, and objects that require intricate details. The choice of different types of resins allows for various material properties, including standard, engineering, flexible, and biocompatible resins.
- Selective Laser Sintering (SLS):
SLS 3D printing uses a high-power laser to selectively fuse powdered materials, such as plastics (e.g., nylon) or metals (e.g., aluminum, titanium), into solid layers. The 3D printer spreads a thin layer of powdered material onto the build platform, and the laser scans the cross-section of the object, fusing the particles together where needed. The build platform then lowers, and a new layer of powder is spread on top, and the process repeats. SLS does not require support structures since the unfused powder acts as temporary support during printing. This allows for the creation of complex geometries and functional parts without the need for post-processing to remove supports. SLS is used in industries such as aerospace, automotive, and consumer goods for functional prototypes, end-use parts, and low-volume production.
- Digital Light Processing (DLP):
DLP is similar to SLA in that it also uses liquid photopolymer resin to create objects layer by layer. However, instead of a UV laser, DLP utilizes a digital light projector to cure an entire layer of resin simultaneously. The projector shines UV light onto the entire layer's surface, solidifying it all at once. This approach can result in faster print times compared to traditional SLA. DLP 3D printers are known for their high resolution and ability to produce detailed models with smooth surface finishes. DLP is commonly used in industries like jewelry, dentistry, and visual prototyping, where intricate and highly detailed parts are required.
- Binder Jetting:
In binder jetting, a liquid binding agent is selectively deposited onto a bed of powder material, such as metal, sand, or ceramics. The binding agent acts as a glue, bonding the powder particles together to form each layer of the object. Once a layer is complete, the build platform is lowered, and a new layer of powder is spread on top. The process is repeated until the entire object is created. After printing, the object may undergo additional post-processing steps, such as sintering or infiltration, to improve its strength and integrity. Binder jetting is used for creating metal parts, sand molds for casting, ceramic objects, and architectural models.
- Material Jetting:
Material jetting is a 3D printing technology that uses printheads to jet or spray tiny droplets of liquid photopolymer or wax-like material onto the build platform. The droplets are then cured with UV light to solidify the material. Material jetting printers can have multiple printheads, allowing them to print with different materials simultaneously. This enables the creation of multi-material and full-color 3D prints. Material jetting offers high resolution, accuracy, and the ability to produce parts with varying material properties. It is used in applications where color or multi-material functionality is essential, such as product design, architecture, and visualization.
- Direct Metal Laser Sintering (DMLS) / Selective Laser Melting (SLM):
DMLS and SLM are metal 3D printing technologies that use a high-power laser to selectively melt and fuse metal powders together. The 3D printer spreads a thin layer of metal powder onto the build platform, and the laser scans the cross-section of the object, melting and solidifying the powder where needed. The process is repeated layer by layer until the final metal part is complete. DMLS and SLM are used in industries that require strong, lightweight, and complex metal components, such as aerospace, medical, and automotive.
- Ceramic 3D Printing:
Ceramic 3D printing is a specialized 3D printing process that allows for the creation of intricate ceramic objects. Ceramic materials are combined with binders and other additives to form a paste or slurry, which is extruded or jetted layer by layer to build the object. After printing, the object is typically dried and then fired in a kiln to remove the binders and sinter the ceramic particles together, creating a solid and dense ceramic object. Ceramic 3D printing is used in various applications, including pottery, custom tiles, and high-temperature components for industrial processes.
- Food 3D Printing:
Food 3D printing is an emerging application that uses edible materials to create custom food designs and culinary creations. Food-grade 3D printers are used to deposit edible materials layer by layer, following a digital model or design. Food 3D printing allows chefs, bakers, and culinary enthusiasts to create intricate shapes, decorative patterns, and personalized food items. It is used in the culinary industry for custom cake toppers, intricate chocolate designs, pastry decorations, and even meat alternatives.
Each type of 3D printing technology has its advantages, limitations, and specific applications. The choice of 3D printing technology depends on factors such as the desired level of detail, material properties, production volume, and the intended use of the final printed object. As 3D printing technology continues to advance, these different approaches enable a wide range of industries to embrace additive manufacturing and explore new possibilities in design, prototyping, production, and customization.
The resolution and accuracy of 3D printing can vary significantly depending on the type of 3D printing technology, the specific 3D printer model, and the material used. Here's a general overview:
- Resolution: The resolution of 3D printing refers to the level of detail or the minimum feature size that a printer can reproduce. It is usually measured in micrometers (μm) or millimeters (mm) and represents the thickness of each layer the printer can create. The smaller the layer height, the finer the details that can be achieved in the printed object. For example, a printer with a layer height of 0.05 mm will produce more detailed results than a printer with a layer height of 0.2 mm.
Typical layer heights for consumer-grade 3D printers can range from 0.05 mm to 0.3 mm, while professional-grade and industrial 3D printers can achieve even smaller layer heights, as low as 0.01 mm or less. Resin-based 3D printing technologies like SLA and DLP generally offer higher resolution compared to FDM or SLS, as they can produce finer layers and smoother surfaces.
- Accuracy: The accuracy of 3D printing refers to how closely the printed object matches the dimensions and details specified in the digital design. It is affected by factors such as the precision of the 3D printer's motion control system, the stability of the build platform, the quality of the calibration, and the material's behavior during printing.
The accuracy of 3D printing is usually measured in terms of percentage or as a deviation from the intended dimensions. For instance, if a printed object is intended to have dimensions of 100 mm x 100 mm x 50 mm, but it actually measures 99 mm x 98 mm x 51 mm, the accuracy can be described as ±1% in X and Y dimensions and ±2% in the Z dimension.
Consumer-grade 3D printers typically offer accuracies within ±0.1 to ±0.5 mm, while professional and industrial-grade 3D printers can achieve accuracies as tight as ±0.02 mm or even better. Resin-based printers often provide higher accuracy compared to filament-based printers due to their ability to produce smoother and more precise details.
It's essential to keep in mind that achieving the maximum resolution and accuracy of a 3D printer often requires careful calibration, appropriate settings, and the use of high-quality materials. Additionally, certain geometries or features in a design may challenge the printer's capabilities, impacting the final resolution and accuracy. For critical applications, it's advisable to thoroughly test and validate the 3D printing process to ensure that the desired level of precision is achieved.
Yes, 3D printing can be used for certain types of mass production, but its application in this context is generally limited to specific scenarios and industries. While traditional manufacturing methods like injection molding or CNC machining are more commonly used for large-scale production, 3D printing can offer several advantages in certain situations:
- Customization and Personalization: One of the most significant advantages of 3D printing in mass production is its ability to offer customization and personalization on a large scale. Traditional manufacturing methods often require expensive tooling and molds, making customization challenging and costly. With 3D printing, each item can be individually designed and manufactured, enabling companies to meet specific customer demands and create unique products. This is particularly valuable in industries like fashion, footwear, and consumer goods, where personalization is becoming increasingly important for customer satisfaction and brand loyalty.
- Rapid Prototyping and Iterative Design: 3D printing is widely used for rapid prototyping, allowing companies to quickly create functional prototypes for testing and validation. This iterative design process allows for faster product development cycles and can significantly reduce time-to-market. By identifying and addressing design flaws early in the process, companies can avoid costly mistakes and produce higher-quality products.
- Low Volume Production and On-Demand Manufacturing: For products with limited demand or niche markets, 3D printing provides a cost-effective solution for low volume production. Unlike traditional manufacturing, which often requires a minimum order quantity to be economically viable, 3D printing can produce small quantities without incurring additional setup costs. This capability is especially valuable for small businesses, startups, and specialty products that cater to specific customer segments.
- Complex Geometries and Design Freedom: 3D printing's layer-by-layer fabrication method enables the production of highly complex and intricate designs that may be impossible to create using traditional manufacturing techniques. This design freedom allows engineers and designers to explore innovative shapes, lightweight structures, and integrated functionalities. Industries like aerospace, automotive, and medical devices benefit from 3D printing's capability to create parts with internal cavities, lattice structures, and optimized geometries that enhance performance and reduce weight.
- Distributed Manufacturing and Supply Chain Benefits: 3D printing can facilitate distributed manufacturing, where products are produced closer to the point of consumption or demand. This reduces the need for extensive global supply chains and long shipping distances. By producing items on-site or near the customer, companies can minimize inventory costs and respond quickly to market fluctuations and regional demands. In remote or underdeveloped areas, 3D printing can bring manufacturing capabilities and access to custom products that were previously unavailable.
Despite these advantages, 3D printing still faces challenges in competing with traditional manufacturing for high-volume production. The speed of 3D printing remains a limitation, with large-scale production often being slower compared to high-speed mass production methods like injection molding. Additionally, the cost of materials for 3D printing can be higher than bulk materials used in traditional manufacturing processes, impacting the cost-effectiveness for large quantities.
As 3D printing technology continues to evolve, these challenges are being addressed, and advancements are being made to improve speed, material selection, and scalability. Hybrid approaches, where 3D printing is used in conjunction with traditional methods, are also being explored to leverage the benefits of both technologies for mass production. As a result, 3D printing is expected to play an increasingly significant role in the manufacturing landscape, offering unique opportunities for innovation, customization, and sustainability in mass production processes.
3D printing offers a wide range of benefits, making it a transformative technology with applications across various industries. Some of the key advantages of 3D printing include:
- Design Freedom and Complexity: 3D printing, also known as additive manufacturing, allows designers to break free from the constraints of traditional manufacturing processes. It enables the creation of geometrically complex and intricate designs that were once difficult or impossible to achieve. This design freedom encourages innovation, leading to the development of novel products with optimized shapes, internal cavities, lattice structures, and customizable features. For industries like aerospace and automotive, this means lighter and more efficient components, reducing fuel consumption and enhancing overall performance.
- Rapid Prototyping: In product development, 3D printing shines as a powerful tool for rapid prototyping. Instead of waiting weeks or months for prototypes to be fabricated using traditional methods, engineers can 3D print functional prototypes in a matter of hours or days. This fast turnaround allows for quicker testing, validation, and iterative design improvements. Companies can catch design flaws early on, saving time and resources, and ultimately leading to better end products.
- Customization and Personalization: Consumer demands for personalized products are growing, and 3D printing is exceptionally well-suited to meet these needs. Mass customization becomes achievable with 3D printing, allowing companies to produce unique items tailored to individual customers. This capability is particularly relevant in industries like healthcare, where 3D printing is used to create patient-specific medical devices and prosthetics. In consumer goods, customers can personalize items like phone cases, jewelry, and fashion accessories.
- Low Volume Production and On-Demand Manufacturing: Traditional manufacturing processes, like injection molding, require significant upfront investment in tooling and setup costs. This makes them cost-effective only for large production runs. On the other hand, 3D printing excels in low volume production, enabling the production of small quantities without incurring substantial tooling expenses. This flexibility is particularly beneficial for small businesses, startups, and entrepreneurs who can use 3D printing to test the market, validate product concepts, and produce limited batches efficiently.
- Reduced Waste and Sustainable Manufacturing: Traditional manufacturing methods are often wasteful, as they involve cutting, machining, and removing excess material. In contrast, 3D printing is an additive process, where material is deposited only where needed, reducing waste significantly. This approach not only saves material costs but also contributes to more sustainable manufacturing practices, aligning with the principles of circular economy and eco-friendly production.
- Tooling Cost Savings: Tooling, such as molds and dies, can be expensive to create and maintain in traditional manufacturing. In 3D printing, the digital model of the object is the only necessary tool, eliminating the need for physical tooling. This cost-saving aspect makes 3D printing advantageous for custom or short-run production, as well as for creating unique, one-of-a-kind products.
- Accessibility and Local Production: As 3D printing technology becomes more affordable and accessible, it has democratized manufacturing. Small businesses, educational institutions, and individuals can now adopt 3D printing to produce prototypes, customized products, or replacement parts locally. This localized production approach can reduce shipping distances, lead times, and carbon emissions associated with global supply chains.
- Medical Advancements: 3D printing has revolutionized medicine and healthcare. It enables the creation of patient-specific medical devices, implants, and prosthetics, customized to an individual's anatomy. Surgeons can practice complex procedures on 3D-printed models of a patient's unique anatomy before performing the actual surgery, leading to better surgical outcomes and reduced risks. Additionally, bioprinting research holds promise for creating living tissues and organs for transplantation in the future.
- Aerospace and Automotive Applications: The aerospace and automotive industries leverage 3D printing for several critical applications. In aerospace, 3D printing enables the production of lightweight parts with complex geometries, reducing overall weight and fuel consumption in aircraft. In automotive, it allows for the creation of functional prototypes, custom tooling, and low volume production of specialized components. This can streamline the production process, improve vehicle performance, and facilitate innovation in both industries.
- Education and Innovation: 3D printing has educational benefits, providing hands-on learning experiences for students and researchers. It stimulates creativity, critical thinking, and problem-solving skills. Students can see their ideas come to life through 3D printing, fostering innovation and curiosity across various disciplines.
Overall, the benefits of 3D printing are multifaceted and have a profound impact on various industries. As the technology continues to advance, its capabilities will expand, opening up even more opportunities for innovative and sustainable manufacturing processes.
The strength of 3D printing parts can vary significantly depending on several factors, including the 3D printing technology used, the material employed, the design of the part, and the post-processing techniques applied. While 3D printing has made significant advancements in producing strong and functional parts, the strength of the final printed object may not always match that of traditionally manufactured parts. Here are some key considerations:
- Material Strength and Selection: The choice of material has a significant impact on the strength of 3D printed parts. Each material has its own unique mechanical properties that affect the final strength of the printed object. For example:
- Thermoplastics: Thermoplastic materials like ABS, PETG, and polycarbonate are widely used in FDM/FFF 3D printing. These materials offer good strength, toughness, and impact resistance, making them suitable for functional parts and engineering applications.
- Engineering Resins: Resin-based 3D printing technologies, such as SLA and DLP, offer a range of engineering-grade resins that provide high strength, temperature resistance, and durability. These materials are commonly used for prototypes and end-use parts in demanding industries.
- Metal Alloys: Metal 3D printing, such as Direct Metal Laser Sintering (DMLS) or Selective Laser Melting (SLM), can produce parts with exceptional strength and mechanical properties. Metals like titanium, stainless steel, and aluminum are used in aerospace, automotive, and medical applications, where strong and lightweight components are essential.
- Layer Adhesion and Orientation: In FDM/FFF 3D printing, the strength of the part can be influenced by the adhesion between layers. Proper printing parameters, such as extrusion temperature, layer height, and print speed, are essential to ensure strong bonding between layers. Additionally, the orientation of the part during printing can impact its strength. Parts printed with a vertical orientation may have better layer adhesion compared to parts printed horizontally, where the layers are more prone to delamination.
- Infill Density and Print Parameters: In FDM/FFF printing, the infill density (the pattern inside the part) can affect its strength. Higher infill densities result in stronger parts but may increase print time and material usage. Properly adjusting infill percentage and print parameters, such as wall thickness, can strike a balance between strength and efficiency.
- Post-Processing Techniques: Post-processing methods can be applied to enhance the strength of 3D printed parts. For example:
- Annealing: In metal 3D printing, annealing (heat treatment) can be used to relieve stresses and improve the mechanical properties of the part, making it stronger and more ductile.
- Resin Curing: In SLA and DLP printing, post-curing the printed resin can improve its overall strength and durability by completing the polymerization process.
- Reinforcements: Adding fibers, such as carbon fiber or fiberglass, to the printing material can increase the part's strength and stiffness. Composite materials with added reinforcements are used in various high-performance applications.
- Design Optimization: Proper design optimization is crucial for maximizing the strength of 3D printed parts. Designers can use generative design techniques and simulation software to identify the most efficient material distribution and stress-resistant geometries. Topology optimization, for example, can result in lighter and stronger components by removing unnecessary material and reinforcing critical areas.
It's essential to note that while 3D printing has made significant advancements in producing strong parts, it may not always match the strength of traditionally manufactured parts, especially in large-scale production. However, the strength of 3D printed parts is continually improving as materials, printing technologies, and post-processing techniques evolve. 3D printing is already proving its worth in numerous industries, from aerospace and automotive to healthcare and consumer goods, where strong and durable components are essential for performance, safety, and reliability. As the technology continues to progress, we can expect even more impressive developments in the strength and mechanical properties of 3D printed parts.
Yes, many 3D printers have the capability to print in color. These printers use a process called "multi-color 3D printing" or "color 3D printing" to produce objects with a variety of colors, patterns, and gradients. Color 3D printing allows for the creation of vibrant and visually appealing models, prototypes, and functional parts.
- Multi-Material Printing: In multi-material 3D printing, the printer uses multiple extruders, each loaded with a different color filament or even different materials. The extruders work in tandem to deposit the various colors layer by layer, allowing the printer to create objects with distinct color patterns and gradients. Multi-material printing not only enables color 3D printing but also allows the creation of objects with multiple material properties, such as flexible and rigid sections in the same model.
Multi-material 3D printing is commonly used in applications that require visual communication, such as architectural models, product prototypes, and educational models. It enables designers to showcase different parts of the design or highlight specific features with contrasting colors, making it easier to convey complex ideas and concepts.
- Color Mixing: Some 3D printers employ color-mixing technology within a single extruder. These printers can combine different colored filaments in the nozzle, allowing for a wide range of color variations and gradients. By adjusting the ratios of the mixed colors, the printer can produce subtle color changes and smooth transitions within the printed object.
Color mixing adds an extra dimension to 3D printed models, enabling a more sophisticated color palette. This capability is often used in artistic and creative applications, such as sculptures, figurines, and art installations, where a smooth and continuous color transition is desired.
- Full-Color 3D Printing: Full-color 3D printing takes color capabilities even further by applying color to the entire surface of the printed object. It allows for the reproduction of intricate textures, patterns, and realistic images directly on the model. Several methods are used for full-color 3D printing:
- Binder Jetting: In binder jetting, a liquid binder is selectively deposited onto layers of powder material. Colored binders are used to apply color to specific regions of the model. The process can create full-color, high-resolution models with vibrant and lifelike colors.
- UV Inkjet Printing: Some resin-based 3D printers use UV inkjet technology to apply color to each layer of the model as it is printed. The UV ink is cured using UV light, resulting in a detailed, full-color model. These printers often use a combination of CMYK (cyan, magenta, yellow, black) ink cartridges to achieve a broad color gamut.
Full-color 3D printing finds applications in fields like art, architecture, entertainment, and product design. It enables the creation of visually stunning and realistic models, showcasing intricate details and lifelike textures that traditional monochromatic 3D printing cannot achieve.
While color 3D printing is an impressive capability, it does come with some considerations. The process can be more time-consuming and complex compared to standard monochromatic 3D printing, as it requires more precise calibration and alignment of the different colors or materials. Additionally, the cost of full-color 3D printing materials and printers can be higher than traditional 3D printing.
However, as technology advances and becomes more accessible, color 3D printing is expected to play a more significant role in various industries, offering new creative possibilities, enhanced visual communication, and realistic representations of ideas and designs.
