TDL supports plastic injection tools for automotive exterior components, such as the bumper, grille, engine cover, lamp housing, shell, etc. And support low pressure injection molding and in mold graining nickel shell tools for automotive interior parts manufacturing, such as soft instrument panels, dashboards, door trim, armrests, etc.
TDL:Leading Company of Automotive Plastic Injection Molding in China!
As the demand for high-end vehicles escalates, the automobile manufacturing industry is pushing the boundaries of plastic and metal technology. Manufacturers of automotive parts are constantly aiming to create lighter, stronger, and more cost-efficient OEM parts. To achieve this, they require a dependable partner proficient in today’s injection molding technology and advanced manufacturing processes.
TDL provides support for plastic injection tools used in the production of exterior automotive components, including bumpers, grilles, engine covers, lamp housings, shells, and more. Additionally, TDL offers assistance with low-pressure injection molding and in-mold graining nickel shell tools for the manufacturing of interior automotive parts such as soft instrument panels, dashboards, door trims, armrests, and so on.
The mold engineering and design team at TDL is at the forefront of our industry. Our engineering manager, a member of the Mould Association, has assisted numerous companies in resolving design issues related to complex molds.
Services for the Automotive Parts Manufacturing
At TDL, we provide one-stop injection molding services for automotive parts manufacturing. Our comprehensive capabilities cover every stage, from mold design and manufacturing to precision machining, surface treatment, and more.
Product Design
We collaborate with clients from the early stages of development to refine technical drawings, including 2D and 3D files. Our goal is to ensure that designs meet the strict standards of the automotive industry while optimizing for functionality, manufacturability, and cost-efficiency.
Mold Design
We provide customized mold design solutions for the automotive industry, including components such as interior and exterior parts, engine components, and structural elements. Using advanced 3D modeling and simulation tools, including Moldflow analysis, we optimize gating systems, cooling channels, and mold structures to ensure efficient production, reduced cycle times, and consistent product quality, meeting the rigorous standards of the automotive sector.
Mold Manufacturing
We specialize in manufacturing high-precision injection molds for the automotive industry. Using advanced machining technologies, including precision milling, turning, wire EDM and electrical discharge machining, and high-quality materials, we ensure that the molds we produce meet the stringent performance, durability, and dimensional accuracy requirements of the automotive sector.
Custom Injection Molding
TDL provides custom injection molding services for the automotive industry. Our factory is equipped with advanced injection molding machines, automation systems, and testing equipment to ensure product consistency and high precision. Our plastic molding services cover a wide range of automotive applications, including interior parts, exterior parts, engine components, and structural elements.
Rapid Prototyping
TDL utilizes rapid prototyping technologies such as 3D printing and CNC machining to create fast and accurate concept models, functional prototypes, and production-ready parts. Our team can work with a range of CAD files and produce parts in a variety of materials to suit your automotive project needs.
3D Printing
TDL uses cutting-edge 3D printing technologies to create high-quality, low-volume automotive plastic parts for prototyping and production. Our printers can produce complex geometries, intricate details, and custom textures and finishes. We can work with a variety of 3D file formats and offer a range of materials to choose from.
CNC Machining
We provide high-precision CNC machining services for the automotive industry. Using advanced technologies like 5-axis machining, wire EDM, and electrical discharge machining, we manufacture complex mold components such as cavities, cores, and inserts. Our services also directly support the production of metal and plastic parts for automotive components.
Surface Treatment
We provide high-standard surface treatment services for the automotive industry, including polishing, anodizing, and passivation. Our surface treatment processes are suitable for a wide range of automotive components, from engine parts to transmission systems, ensuring they meet the industry's unique surface treatment requirements.
Applications
Common Automotive Applications
Explore the world of healing with TDL: Your trusted partner for automotive applications.

Engine Fuel System

Bumper & Grille

Headlight & Tail Lamp

Trim & Interior Parts

Air Conditioning
Advantages
Why Choose TDL for Automotive Injection Molding?
High-end equipment
TDL's high-end equipment CNC allows to produce large molds with precision and efficiency, ensuring top-quality products for the automotive industry.
Technology accumulation
With years of experience and a strong focus on research and development, TDL has accumulated valuable technological expertise that they apply to each and every project in the automotive industry.
IATF 16949 Certification
As an IATF 16949 certified, TDL meets the highest standards for quality management in the automotive industry, ensuring reliable and consistent products for their clients.
Provide a variety of surface treatment
TDL offers a wide range of surface treatment options to meet the diverse needs of the automotive industry, from high-quality finishes to specialized coatings for improved durability and performance.
Choose TDL for injection molding and get up to 100% mould cost refund!
Materials for Injection Molded Automotive Parts
In the injection molding process, selecting the right material is critical to meeting the performance requirements of automotive components. As a professional injection molding service provider, we offer a diverse range of material options, including thermoplastics, thermosetting plastics, and composite materials, tailored to your specific needs of each part.

PC (Polycarbonate)
High strength, impact resistance, excellent transparency, suitable for durable components.
Applications: Headlight lenses, Instrument panel screens, Sun visors

PP (Polypropylene)
Lightweight, chemically resistant, cost-effective, crucial for achieving automotive lightweighting goals.
Applications: Air conditioning ducts, Trunk liners, Bumper liners

ABS
Easy to process, smooth surface, ideal for parts requiring a polished appearance.
Applications: Dashboard housings, Door panels, Control panel covers

PA (Nylon)
High strength, excellent wear resistance, ideal for components requiring durability.
Applications: Gears, Hydraulic system components, Cable clamps

PBT
Good thermal stability, strong chemical resistance, suitable for electrical and electronic components.
Applications: Connectors, Motor end caps, High-voltage plug housings

PPS (Polyphenylene Sulfide)
Outstanding performance in high-temperature and corrosive environments, ideal for demanding engine-related components.
Applications: Fuel system parts, Coolant components, Exhaust parts

TPU (Thermoplastic Polyurethane)
Excellent elasticity, strong wear resistance, used for flexible or highly durable parts.
Applications: Seals, Hose connectors, Gaskets

Composite Materials (Fiber-Reinforced Plastics)
Reinforced with fibers (e.g., glass or carbon) to enhance strength, replaces some metal parts, and supports lightweighting and high-strength demands.
Applications: Automotive frame brackets, Battery enclosures (electric vehicles), Suspension components
Benefits of Injection Molding Process
High Precision Manufacturing
With the use of advanced mold designs, injection molding can produce automotive components with exact dimensions and smooth surfaces, meeting the stringent requirements for both precision and appearance in the automotive industry. Parts like interior panels, dashboards, and exterior trim pieces require a high degree of accuracy, which can be easily achieved through injection molding, ensuring a perfect fit and finish.
Mass Production
Injection molding is an automated, high-efficiency process that is ideally suited for mass production. Once the mold is designed, it can be used repeatedly to produce large volumes of parts with consistent quality. For automotive manufacturing, components such as light housings, dashboards, and interior and exterior trim require large-scale production, and injection molding can meet this demand by delivering quick turnaround times and high-volume output.
Cost-Effective Production
With the use of advanced mold designs, injection molding can produce automotive components with exact dimensions and smooth surfaces, meeting the stringent requirements for both precision and appearance in the automotive industry. Parts like interior panels, dashboards, and exterior trim pieces require a high degree of accuracy, which can be easily achieved through injection molding, ensuring a perfect fit and finish.
Wide Range of Material Compatibility
With the use of advanced mold designs, injection molding can produce automotive components with exact dimensions and smooth surfaces, meeting the stringent requirements for both precision and appearance in the automotive industry. Parts like interior panels, dashboards, and exterior trim pieces require a high degree of accuracy, which can be easily achieved through injection molding, ensuring a perfect fit and finish.
Design Flexibility for Complex Shapes
njection molding is an automated, high-efficiency process that is ideally suited for mass production. Once the mold is designed, it can be used repeatedly to produce large volumes of parts with consistent quality. For automotive manufacturing, components such as light housings, dashboards, and interior and exterior trim require large-scale production, and injection molding can meet this demand by delivering quick turnaround times and high-volume output.
Case Studies
Sucessful case stories in auotomotive industry
TDL has been instrumental in creating several successful case studies within the automotive industry.

MEXICO MOLD PROJECT

GERMANY MOLD PROJECT

USA MOLD PROJECT

FRANCE MOLD PROJECT

CHINESE MOLD PROJECT

ITALY MOLD PROJECT
Our Equipment

CMM
Inspection

High Speed CNC Machines

Double-Head EDM Machines

EDM
Workshop

CNC machining Workshop

Plastic Injection Molding Room

Mirror EDM Machining

Mould Spotting Machine
Product Design Team
Meet Our Expert Team: The Driving Force Behind TDL Mold’s Innovative Solutions.
How do we control the quality of mold manufacturing
Quality is important to TDL mold manufacturing, it is also non-negotiable for clients.
TDL relies on high-quality plastic molds and injection molding products to obtain a very good reputation, trust and long-term cooperation with clients.


Incoming Material Inspection
All raw materials are verified for conformity upon receipt. Our Quality Control team inspect dimensions, hardness to ensure molds’ long service life.
Manufacturing Inspection
In the manufacturing process, measurement of each mold parts and the electrodes is essential. Only when the dimension of each part is confirmed will it enter the next step. The advantage of doing this is to spot any possible errors in advance, avoiding waste of time and money.


Finished Products and Shipment Inspection
Finished parts undergo final inspection by our Quality System Manager or shipping personnel prior to any shipment. All parts are visually inspected and are carefully packaged and compactly packaged to ensure their safe arrival to our customers at minimum cost.
Customer Complain Handling
Once our sales reps receive your complaints, our team of engineers will conduct a meeting for a solution within 48 hours.

FAQ's

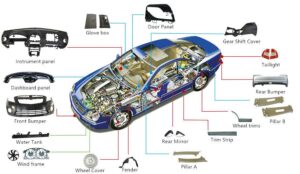

Plastic molds are used in the automotive industry to manufacture a wide range of plastic automotive parts. These parts can be found in various areas of a vehicle, serving both functional and aesthetic purposes. Some examples of automotive parts made using plastic molds include:
- Interior Components:
- Dashboard Components: The dashboard is a central focal point of a vehicle's interior. Plastic molds are used to create components such as the main dashboard panel, air vents, trim pieces, and glove box doors. The use of plastic molds allows for intricate designs and the integration of air conditioning and audio controls.
- Center Console Parts: Modern vehicles often have a center console that houses cup holders, storage compartments, and controls for various functions. Plastic molds enable the production of these parts with ergonomic designs and functional features.
- Door Panels: Door panels are made up of various plastic components, including armrests, window switches, and door handles. Plastic molds allow for the creation of different textures, shapes, and ergonomic designs to enhance user comfort and convenience.
- Seats: While seat frames are typically made from metal, plastic components like seat backs, headrests, and seat belt components are often manufactured using plastic molds. The molds enable the integration of safety features and the optimization of comfort and aesthetics.
- Steering Wheel Components: Steering wheels can include various plastic parts like horn buttons, airbag covers, and multifunction controls. Plastic molding ensures precise shaping and proper accommodation of these functional elements.
- Exterior Components:
- Bumpers: Both front and rear bumpers are commonly made from plastic due to its impact-resistant properties. Plastic molds allow for intricate shaping and integration of sensors, fog lights, and other components.
- Grilles: The front grille of a vehicle is often designed to be both functional and aesthetically pleasing. Plastic molds facilitate the creation of intricate grille designs that optimize airflow and contribute to the vehicle's overall style.
- Side Mirrors: Mirror housings and covers are often made from plastic due to its lightweight nature. Plastic molds enable the creation of complex shapes while accommodating features like integrated turn signals and motorized adjustments.
- Body Panels: While most body panels are traditionally made from metal, some modern vehicles incorporate plastic body panels, especially in areas that require flexibility or impact resistance. Plastic molds help create lightweight panels with specific design elements.
- Lighting Components:
- Headlamp and Taillight Housings: Plastic molds are used to manufacture the housings for headlights and taillights. These molds allow for intricate designs, precise lens shapes, and proper light distribution.
- Signal Indicators: Side markers and turn signal housings are often made using plastic molds for durability and cost-effectiveness. The molds enable the integration of clear and colored plastic parts for various lighting functions.
- Fog Light Covers: Protective covers for fog lights are commonly made from plastic. Plastic molds ensure proper fitment and optimal light transmission.
- Engine Components:
- Air Intake Components: Intake manifolds and air filter housings are often made from plastic due to its insulating properties. Plastic molds enable the integration of intricate passages and connections.
- Engine Covers: Plastic engine covers provide protection and help manage heat within the engine bay. Molds allow for branded or aesthetic designs while accommodating functional features.
- Fluid Reservoirs: Coolant reservoirs and washer fluid tanks are frequently manufactured using plastic molds. These molds allow for specific shapes and capacities while considering mounting points and hose connections.
- Electrical Components:
- Wiring Harness Connectors: Plastic connectors are used to secure wiring harnesses in various parts of the vehicle. Molds enable consistent and secure connections while accommodating different pin configurations.
- Fuse Box Covers: Plastic covers for the vehicle's fuse box protect sensitive electrical components. Molds ensure proper fitment and easy access for maintenance.
- HVAC Components:
- Air Ducts and Vents: Plastic air ducts and vents are used to distribute air within the vehicle's cabin for heating, ventilation, and air conditioning. Molds allow for precise shaping to optimize airflow patterns.
- Miscellaneous Parts:
- Fasteners and Clips: Plastic clips and fasteners are used to secure various components in the vehicle's interior and exterior. Molds ensure consistent sizing and strength for secure attachment.
- Trim and Molding: Plastic trim and molding are used for both interior and exterior decorative purposes. Molds enable the replication of consistent designs across different parts of the vehicle.
In essence, plastic molds play a crucial role in the automotive industry by enabling the efficient production of a wide range of components. These molds allow manufacturers to create parts that are lightweight, durable, cost-effective, and capable of meeting various functional and aesthetic requirements. As technology and materials continue to advance, the scope for using plastic molds in automotive manufacturing is likely to expand further.
The use of plastic molds contributes significantly to lightweighting in the automotive industry. Lightweighting is the practice of designing and manufacturing vehicles with reduced weight, which offers several benefits, including improved fuel efficiency, reduced emissions, enhanced performance, and increased cargo capacity. Plastic molds play a crucial role in achieving these benefits by enabling the production of lightweight plastic components that replace heavier traditional materials like metal. Here's how plastic molds contribute to lightweighting:
- Material Diversity and Weight Reduction:
Plastic molds enable the utilization of a wide range of plastic materials, each with specific properties that can be tailored to meet the needs of different automotive components. Plastics like carbon-fiber-reinforced polymers (CFRP), glass-fiber-reinforced polymers (GFRP), and high-performance thermoplastics offer impressive strength-to-weight ratios. These materials can replace heavier metals like steel and aluminum in components like body panels, structural parts, and engine covers.
- Complex Geometries and Structural Optimization:
Plastic molds allow the creation of intricate and lightweight designs that optimize structural integrity while minimizing material usage. These designs can incorporate features like ribbing, lattice structures, and variable wall thicknesses to distribute stress and enhance load-bearing capacity where needed. This not only reduces weight but also improves overall component performance.
- Integration of Functions:
Plastic components manufactured through molding techniques can integrate multiple functions into a single part. For example, a plastic intake manifold could incorporate runners, sensor mounts, and vacuum connections in a single piece. By eliminating the need for separate components and additional fasteners, integration reduces weight and assembly complexity.
- Material Properties Tailoring:
Plastics can be engineered to possess specific mechanical properties, such as stiffness, impact resistance, and thermal performance. This enables designers to fine-tune the material to match the requirements of each component. By using precisely engineered plastic materials, manufacturers can achieve the necessary performance while minimizing excess material, ultimately reducing weight.
- Localized Reinforcement:
Plastic molds allow designers to strategically place reinforcements only where they are needed most, optimizing structural performance without adding unnecessary weight. This targeted reinforcement approach enhances the overall strength of the component while using less material.
- Reduced Secondary Processes:
Plastic molding processes like injection molding or compression molding can produce fully-formed components in a single step. This eliminates the need for additional machining, welding, or joining processes that add weight and complexity to components. The result is a streamlined manufacturing process and reduced part weight.
- Corrosion Resistance:
Many plastics are naturally resistant to corrosion and do not require additional coatings or treatments to protect against rust, unlike metals. By using plastic components, manufacturers can eliminate the weight and cost associated with protective coatings, especially in components exposed to harsh environmental conditions.
- Energy Efficiency in Manufacturing:
Plastic molding processes are generally more energy-efficient than traditional metal-forming methods. For instance, injection molding uses less energy compared to metal casting or stamping. The lower energy consumption contributes to a reduced carbon footprint and aligns with the industry's emphasis on sustainability.

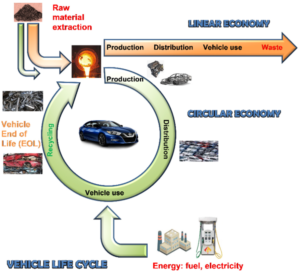

- Recycling and Circular Economy:
Some plastic materials used in automotive components are recyclable. This supports the concept of a circular economy, where end-of-life plastic components can be recycled and incorporated into new components. This recycling potential further reduces the need for virgin materials and contributes to overall lightweighting efforts.
In conclusion, the use of plastic molds in the automotive industry is a critical enabler of lightweighting. By offering a versatile range of materials, complex design possibilities, integrated functions, and targeted reinforcement, plastic molds empower designers and manufacturers to create lightweight yet strong components that improve vehicle efficiency, performance, and sustainability. This shift toward lightweighting is integral to the ongoing evolution of automotive design and manufacturing.
Several materials are commonly used in the construction of automotive plastic molds. The choice of material depends on factors such as mold design, production volume, part complexity, molding process, and the specific requirements of the automotive components being manufactured. Some of the commonly used materials for automotive plastic molds include:
- Tool Steel:
- P20 (1.2311): P20 is a general-purpose, low-alloy tool steel suitable for various molding applications. It offers good toughness, machinability, and polishability. P20 molds are used for injection molding and compression molding processes. Its versatility makes it a popular choice for molds that require moderate wear resistance and good surface finish.
- H13 (1.2344): H13 is a hot work tool steel with exceptional heat resistance. It maintains its hardness even at high operating temperatures, making it ideal for molds subjected to the high temperatures associated with injection molding. H13 molds are chosen for parts that demand excellent surface finish quality and resistance to thermal fatigue.
- Stainless Steel:

- S136 (1.2316): S136 is a corrosion-resistant stainless steel often used for molds that come into contact with plastics containing corrosive additives. It offers good wear resistance and is suitable for high-polish applications. S136 molds are chosen for parts that require a high level of aesthetic quality and dimensional stability.
- 420SS (1.2083): This stainless steel offers excellent corrosion resistance and hardness. It's commonly used for molds that require high polishability and are used in applications like optical components, lenses, and consumer electronics.

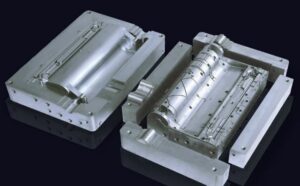

- Aluminum:
- 7075: 7075 is a high-strength aluminum alloy that is lightweight compared to steel. It's used for low-volume production molds, prototypes, and parts that don't require extremely high durability. While aluminum molds are not as durable as steel molds, they can be cost-effective for certain applications and provide advantages in terms of reduced weight.

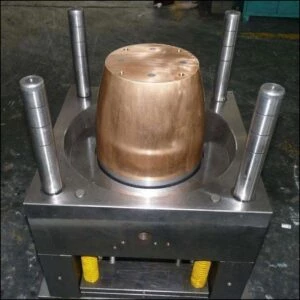

- Beryllium Copper:
- C17200: Beryllium copper molds are chosen for their exceptional thermal conductivity. These molds efficiently dissipate heat during the molding process, leading to faster cooling and shorter cycle times. This is particularly advantageous for high-cavity molds or those with complex geometries.

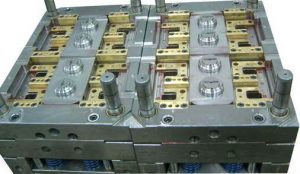

- Prehardened Steel:
Image courtesy: http://www.plastic-injectionmoulding.com/Hardened-Mould-Tools.html
- NAK80: NAK80 is a prehardened steel with good polishability and dimensional stability. It's often used for applications where high-gloss finishes are required. The prehardened state reduces the need for post-mold polishing and provides good wear resistance.

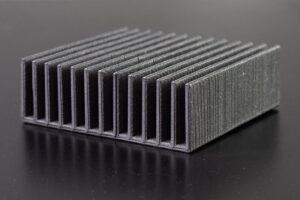

- Thermally Conductive Materials:
Image courtesy: https://3dprinting.com/3d-printing-use-cases/thermally-conductive-polymer-materials/
- MoldMAX HH: MoldMAX HH is a copper alloy chosen for its exceptional thermal conductivity. These molds efficiently transfer heat away from the molded parts, ensuring consistent quality and reducing cycle times. MoldMAX HH is often used in molds with high-cavity counts or complex shapes.

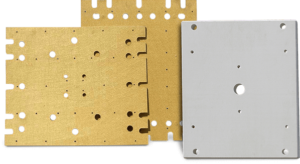

- Thermal Insulating Materials:
Image courtesy: https://jacoproducts.com/thermal-insulation/thermal-mold-insulation-platen-insulation/
- Aluminum Composite: In specific cases, molds may be constructed using aluminum composites that offer a balance between lightweight properties and thermal insulation. These molds are useful for applications where maintaining consistent temperatures is crucial.
Choosing the appropriate mold material involves a careful evaluation of factors such as the molding process, plastic resin properties, part complexity, production volume, expected mold life, surface finish requirements, and cost considerations. Each material has its own advantages and limitations, and the selection process aims to strike a balance between performance, durability, cost-effectiveness, and manufacturing efficiency.
The design process for an automotive plastic mold is a crucial and intricate stage in the overall manufacturing process. It involves several steps to ensure that the mold is optimized for producing high-quality plastic components efficiently and accurately. Here's an overview of the design process for an automotive plastic mold:
- Part Design Analysis:
During this stage, engineers closely examine the design of the plastic component that will be molded. They evaluate factors such as part geometry, material properties, intended function, aesthetic requirements, and regulatory standards. This analysis helps identify potential challenges that may impact mold design decisions, such as draft angles, undercuts, and areas prone to warping.
- Mold Type Selection:
The complexity of the part, the material being used, and the expected production volume influence the choice of mold type. Injection molds are commonly used for high-volume production of intricate parts, while compression molds are suitable for larger, simpler parts. Blow molds are used for hollow components like bottles or containers.
- Mold Layout and Cavity Design:
Engineers create a layout that optimizes the mold's size, shape, and arrangement of cavities. The layout aims to maximize the number of cavities while maintaining adequate spacing for cooling channels. Proper spacing ensures even cooling, consistent part quality, and efficient use of the molding machine's capacity.
- Cooling System Design:
Cooling is critical for maintaining consistent part dimensions and minimizing cycle times. Engineers design a cooling system consisting of intricate channels that allow cooling fluids to flow through the mold. The channels are strategically placed to dissipate heat evenly, preventing warping and defects. Computational fluid dynamics (CFD) simulations may be used to optimize cooling efficiency.
- Gate and Runner System Design:
The gate and runner system controls the flow of molten plastic into the mold cavities. Engineers select the gate location, size, and design based on the part's geometry and material properties. A well-designed gate system ensures proper filling, minimized pressure variations, and efficient material usage.
- Ejection System Design:
The ejection system is responsible for safely and efficiently removing the molded parts from the mold cavities. Engineers design the ejection system to avoid damaging the parts while ensuring consistent ejection across all cavities. Ejector pins, sleeves, lifters, or hydraulic systems may be employed depending on the complexity of the part.
- Venting and Air Evacuation:
Effective venting ensures that air and gases can escape from the mold as the molten plastic fills the cavities. Engineers design vents strategically along the mold to prevent air pockets, burns, or incomplete fills. Proper venting contributes to high-quality parts and minimizes the risk of defects.
- Material Selection for Mold Components:
The choice of materials for mold components is crucial for durability, thermal conductivity, wear resistance, and polishability. Tool steels like P20, H13, and stainless steels are commonly used due to their high performance and suitability for molding conditions.
- Mold Surface Finish:
Engineers specify the required surface finish for various areas of the mold, considering factors like part appearance, release properties, and ease of maintenance. Smooth and polished surfaces on mold cavities contribute to smooth part surfaces and reduce the risk of imperfections.
- Assembly and Alignment:
The mold components are meticulously machined and assembled to precise tolerances. Proper alignment ensures that the mold functions correctly, parts meet dimensional specifications, and wear is evenly distributed. A misaligned mold can lead to part defects, short mold life, and operational issues.
- Simulation and Analysis:
Advanced software tools are used to simulate the molding process virtually. Engineers analyze factors such as material flow, cooling efficiency, warpage, and potential defects. Simulation helps identify potential issues early in the design process, allowing for adjustments before physical production.
- Prototyping and Testing:
Before finalizing the mold design, engineers may create a prototype mold or produce prototype parts to validate the design's functionality and part quality. Testing may involve producing sample parts, analyzing dimensional accuracy, and identifying any issues that need to be addressed.
- Manufacturing and Fabrication:
Once the mold design is approved, the mold components are manufactured using precision machining processes. The core, cavity, cooling channels, and other components are fabricated, heat-treated, and finished to meet design specifications.
- Quality Control and Fine-Tuning:
The completed mold undergoes rigorous testing to ensure it meets quality standards. Engineers fine-tune the mold's parameters, such as cooling channel flow rates and ejection mechanisms, to optimize part quality and cycle time.
The design process for an automotive plastic mold involves the collaborative efforts of design engineers, mold makers, mold designers, and sometimes simulation experts. A comprehensive understanding of plastic behavior, molding processes, and tooling technology is essential to create a mold that produces high-quality parts efficiently and reliably. A well-designed mold plays a crucial role in the success of the entire manufacturing process and the final performance of the automotive components.
Designing a plastic mold for automotive parts is a complex and critical process that requires careful consideration of various factors to ensure the production of high-quality components efficiently and cost-effectively. Here are some key considerations when designing a plastic mold for automotive parts:
- Part Geometry and Complexity:
Thoroughly analyze the part's geometry and complexity to identify features such as undercuts, thin walls, and complex contours. These features may require special mold design elements like sliders, lifters, or collapsible cores to ensure proper ejection and consistent molding. Balancing aesthetics, functionality, and manufacturability is crucial.
- Material Selection:
Carefully choose a mold material that can withstand the demands of the molding process and the specific plastic material being used. Consider factors like material hardness, corrosion resistance, thermal conductivity, and wear resistance. The mold material should maintain dimensional stability and surface finish over the mold's lifespan.
- Mold Type and Process:
Select the appropriate mold type based on factors like part complexity, production volume, and material properties. Each mold type (e.g., injection, compression, blow) has unique design requirements. The chosen mold type influences gate design, cooling strategies, and ejection mechanisms.
- Gate and Runner Design:
Optimize gate and runner design to ensure proper material flow and minimize waste. The gate location, size, and design impact filling patterns, pressure distribution, and material consumption. A well-designed gate and runner system contributes to uniform part quality and reduced cycle times.
- Cooling System Design:
Develop an effective cooling system with strategically placed cooling channels. Proper cooling maintains consistent part dimensions, minimizes warping, and reduces cycle times. Computational fluid dynamics (CFD) simulations can help optimize cooling channel placement and flow rates for efficient heat dissipation.
- Ejection System:
Design an ejection system that removes parts safely and efficiently from the mold cavities. Consider part geometry, ejection force, and ejection pin placement. Properly designed ejection mechanisms prevent damage to both the parts and the mold, ensuring smooth and consistent ejection.
- Venting and Air Evacuation:
Incorporate proper venting to allow air and gases to escape during the molding process. Effective venting prevents defects like air pockets, burns, or short shots. Vent placement and design contribute to part quality and prevent molding inconsistencies.
- Mold Surface Finish:
Specify the required surface finish for different mold areas to achieve desired part aesthetics and release properties. Smooth and polished surfaces in critical areas promote high-quality part surfaces and reduce the risk of imperfections, minimizing post-processing requirements.
- Alignment and Assembly:
Precise alignment and assembly of mold components are essential for proper functionality and mold longevity. Misaligned components can lead to uneven wear, part defects, and operational issues. Proper alignment ensures consistent part quality and accurate dimensions.
- Dimensional Accuracy and Tolerances:
Maintain tight tolerances and dimensional accuracy in the mold design to ensure that the molded parts meet specifications and fit within the vehicle assembly. Accurate mold design contributes to consistent part quality and fitment.
- Mold Maintenance and Accessibility:
Design the mold with ease of maintenance, repairs, and cleaning in mind. Incorporate features that allow for easy access to cooling channels, ejection mechanisms, and other critical components. Well-designed maintenance features extend mold life and reduce downtime.
- Simulation and Analysis:
Utilize advanced simulation software to predict material flow, cooling patterns, and potential defects. Simulation helps identify potential issues early in the design phase, allowing for adjustments and optimizations before physical production.
- Prototyping and Testing:
Create prototype molds or parts to validate the design's functionality and part quality. Prototyping allows for real-world testing and adjustments before finalizing production molds, reducing the risk of costly modifications later.
- Part Release Mechanisms:
Ensure that the part can be easily released from the mold without causing damage. Properly designed ejection mechanisms, draft angles, and release agents facilitate smooth part ejection and prevent sticking.
- Quality Control Measures:
Integrate quality control features into the mold design, such as sensors for cavity pressure or temperature monitoring. These measures ensure consistent part quality during production and facilitate process optimization.
- Cost Efficiency:
Balance design complexity with the cost of mold fabrication. Intricate designs may lead to longer production times and higher tooling costs. Collaborate with manufacturing experts to optimize the design for cost-effective production.
- Regulatory and Industry Standards:
Ensure that the mold design adheres to industry standards, safety regulations, and automotive requirements for performance, safety, and durability. Compliance with these standards is crucial for producing automotive components that meet quality and safety standards.
A successful mold design for automotive plastic parts requires a multidisciplinary approach involving design engineers, mold makers, material specialists, and process experts. By carefully considering these key factors, automotive manufacturers can create molds that deliver high-quality components efficiently and contribute to the overall success of vehicle production.
Ensuring the quality of an automotive plastic mold is crucial to producing high-quality plastic components consistently and efficiently. Quality control measures should be integrated throughout the mold design, fabrication, and production processes. Here's how the quality of an automotive plastic mold can be ensured:
- Thorough Design Analysis:
Begin the quality assurance process by conducting a comprehensive design analysis. Utilize advanced simulation software to predict material flow, cooling patterns, and potential defects. Simulations allow you to identify and rectify design flaws early, leading to an optimized mold design that meets performance requirements.
- Material Selection and Inspection:
Choose mold materials that align with the molding process and plastic material properties. Collaborate with reputable material suppliers and conduct inspections to ensure the quality and conformance of incoming materials. Material testing and analysis can verify characteristics such as hardness, thermal conductivity, and corrosion resistance.
- Precision Machining and Fabrication:
Employ skilled mold makers and machining techniques to fabricate mold components with precision. Utilize computer-aided design (CAD) and computer-aided manufacturing (CAM) technologies to ensure accurate dimensions, tight tolerances, and consistent surface finishes.
- Quality Control Checks During Fabrication:
Implement thorough quality checks during each stage of fabrication. Regularly inspect cooling channels, gating systems, ejection mechanisms, and other critical components to identify any deviations from design specifications. Addressing issues early prevents defects from accumulating.
- Quality Assurance in Assembly:
Precisely assemble mold components, ensuring proper alignment, fitment, and functionality. Rigorous assembly checks help prevent misalignment issues that can lead to premature wear and inconsistent part quality.
- Testing and Validation:
Prior to full-scale production, validate the mold's performance using prototype molds or parts. This testing phase allows you to identify potential design or functional issues and make necessary adjustments to achieve optimal performance and part quality.
- Regular Maintenance and Inspection:
Develop a scheduled maintenance plan that includes regular inspections of the mold. Inspect cooling channels for blockages, ejection mechanisms for wear, and all moving parts for proper function. Timely maintenance prevents unexpected downtime and ensures consistent quality.
- Mold Running-in Period:
Acknowledge that new molds may require a running-in period to stabilize and optimize performance. During this phase, closely monitor mold behavior and part quality, making necessary adjustments to achieve consistent results.
- Quality Monitoring During Production:
Implement real-time quality monitoring during production runs. Utilize sensors to monitor cavity pressure, temperature, and other process parameters. Analyzing this data enables prompt detection of variations that could impact part quality.
- Statistical Process Control (SPC):
Apply SPC techniques to monitor and control the molding process. Regularly analyze data from production runs to identify trends, variations, and potential defects. Adjust process parameters as needed to maintain consistent quality.
- Regular Mold Inspections:
Conduct routine mold inspections to identify wear, damage, or degradation of components. Address any issues promptly to prevent further deterioration and maintain consistent part quality and mold performance.
- Documented Processes and Procedures:
Maintain detailed documentation of mold design, fabrication, maintenance, and production processes. Clearly documented processes ensure consistent operations and provide valuable resources for troubleshooting and optimization.
- Employee Training and Skill Development:
Invest in comprehensive training programs to ensure that mold operators, technicians, and maintenance personnel possess the knowledge and skills required for mold operation, maintenance, and troubleshooting.
- Root Cause Analysis:
When quality issues arise, conduct thorough root cause analysis to identify the underlying factors that caused the problem. Addressing root causes helps prevent similar issues from recurring and contributes to continuous improvement.
- Continuous Improvement:
Foster a culture of continuous improvement within the organization. Apply lessons learned from previous molds and production runs to optimize mold design, fabrication processes, and operational procedures.
By incorporating these detailed strategies into the mold design, fabrication, and production processes, automotive manufacturers can ensure the quality, reliability, and longevity of their plastic molds. Consistently high-quality molds lead to the production of automotive components that meet industry standards, enhance vehicle performance, and contribute to the overall success of vehicle manufacturing.
The cost of automotive plastic mold design is influenced by a multitude of factors, ranging from material selection to complexity of the design. Understanding these cost factors is essential for efficient budgeting and decision-making during the mold design process. Here are the key cost factors to consider:
- Mold Type and Complexity:
The choice of mold type, such as injection, compression, or blow molding, directly affects costs. Complex molds with intricate features like undercuts, threads, or multiple sliders require more sophisticated design, machining, and assembly processes, leading to higher costs.
- Material Selection:
Mold material choice impacts costs significantly. High-performance tool steels like H13 or P20 offer durability but come at a higher price point. The selected material must withstand the stresses and temperatures associated with the molding process.
- Mold Size and Cavities:
Larger molds consume more material, require longer machining times, and necessitate additional assembly effort. The number of cavities in the mold directly influences production volume capacity and, consequently, mold cost-effectiveness.
- Mold Base and Standard Components:
The mold base, composed of materials like steel or aluminum, can vary in cost based on material selection and features. Using standardized components like ejector pins, bushings, and locating rings can save costs by reducing the need for custom manufacturing.
- Tooling and Machining:
Precision machining is a significant cost factor. Complex molds may require advanced machining techniques like EDM or CNC milling. Precision work ensures accurate mold dimensions and geometry, impacting part quality and mold longevity.
- Surface Finish and Polishing:
Achieving specific surface finishes, such as mirror-like finishes for critical part surfaces, demands additional machining, polishing, and buffing. These finishing steps enhance part appearance and performance but contribute to increased costs.
- Cooling System Complexity:
A well-designed cooling system optimizes cycle times and part quality. Complex cooling channels, created through techniques like conformal cooling, enhance heat dissipation but demand additional machining and fabrication efforts.
- Ejection and Slide Mechanisms:
Molds with intricate ejection systems, collapsible cores, or slide mechanisms enable the molding of complex parts. However, these mechanisms increase mold complexity and costs due to additional design, machining, and assembly.
- Tolerances and Precision:
Tighter tolerances and precision requirements elevate the complexity of mold manufacturing. Achieving high precision demands meticulous machining and assembly, potentially increasing costs.
- Prototype and Testing:
Prototyping and testing phases are essential for validating mold designs. While these steps involve additional costs, they prevent costly issues from emerging during full-scale production.
- Quality Control Measures:
Implementing quality control features like sensors for monitoring cavity pressure, temperature, or part dimensions adds to the initial investment. These measures ensure consistent part quality and reduce the risk of defects.
- Labor Costs:
Skilled labor is required throughout the mold design, fabrication, and assembly processes. Labor costs are influenced by factors such as expertise, location, and the complexity of the mold.
- Location of Manufacturing:
The geographic location of mold fabrication affects costs. Labor rates, regulatory compliance, transportation expenses, and local availability of materials impact overall costs.
- Tooling Lifetime and Maintenance:
Balancing upfront costs with the expected lifetime of the mold is crucial. Higher initial costs might be justified if the mold offers a longer production lifespan. Regular maintenance also incurs costs but prevents unexpected disruptions.
- Regulatory Compliance:
Meeting industry standards and safety regulations may require design modifications, additional testing, or the use of specific materials. Ensuring compliance impacts costs but ensures product quality and safety.
- Supplier Relationships:
Collaborating with experienced mold makers or suppliers can lead to cost savings. Established relationships can streamline communication, optimize processes, and provide access to cost-effective solutions.
- Customization and Special Features:
Incorporating custom features, inserts, or unique design elements tailored to the specific part can raise costs. Customizations demand additional design, fabrication, and testing efforts.
Balancing these cost factors while optimizing mold design for performance and quality is a complex endeavor. Automotive manufacturers must carefully consider these factors to make informed decisions that lead to the creation of cost-effective, high-quality molds for producing automotive components.
The time required to design and produce an automotive plastic mold can vary widely based on factors such as the complexity of the mold design, the chosen manufacturing processes, the availability of resources, and the level of collaboration among design and production teams. Generally, the timeline can range from several weeks to several months. Here's a breakdown of the typical stages and their timeframes:
- Conceptual Design and Analysis:
This initial stage involves defining the project scope, understanding design requirements, and conceptualizing the mold design. Engineers analyze the part's geometry, intended function, material properties, and any special features. Depending on the complexity of the part and mold, this phase can range from a few weeks for straightforward designs to several weeks for intricate or novel designs.
- Detailed Design and Simulation:
Once the concept is established, engineers create a detailed mold design using computer-aided design (CAD) software. Simulations are conducted to predict material flow, cooling patterns, and potential defects. The complexity of the mold and the availability of simulation resources impact the time required. This stage typically spans 4 to 8 weeks but can extend if extensive simulations are needed.
- Material Procurement:
After the mold design is finalized, procurement of mold materials begins. The time required for material procurement varies based on the availability of chosen materials and supplier lead times. This phase can take around 2 to 4 weeks, depending on factors like material availability and shipping times.
- Mold Fabrication and Machining:
The heart of mold production is the fabrication process. This involves precision machining, heat treatment to enhance material properties, and assembly of mold components. The complexity of the mold design, availability of skilled machinists, and the intricacy of required mechanisms determine the duration. Mold fabrication can take 4 to 12 weeks or more.
- Prototyping and Testing:
Once the mold is fabricated, a period of prototyping and testing follows. This involves producing prototype parts, testing for dimensional accuracy, defects, and material behavior. The timeline can vary based on the complexity of the parts, the number of iterations required, and the availability of testing facilities. Prototyping and testing typically take around 2 to 6 weeks.
- Finalization and Fine-Tuning:
Adjustments based on prototype testing results are incorporated into the mold design during this phase. Fine-tuning parameters for optimal part quality and cycle time is an iterative process. This phase can span around 2 to 4 weeks as engineers refine the mold design and its performance.
- Production Preparation:
Preparing for full-scale production involves training operators, setting up production lines, and ensuring necessary materials and equipment are in place. The complexity of the production process and the organization of resources impact the timeline. Production preparation generally takes around 2 to 4 weeks.
- Full-Scale Production:
With everything in place, full-scale production can commence. The production timeline depends on factors such as part complexity, desired production volume, and cycle time. It can range from several weeks for smaller production runs to several months for high-volume production.
In total, the entire process of designing and producing an automotive plastic mold can take approximately 4 to 12 months, and potentially longer for extremely complex projects. Delays may occur due to unforeseen challenges, design modifications, supplier lead times, or extensive testing and adjustments. Collaboration among design, engineering, and production teams, as well as effective communication, plays a pivotal role in managing the timeline and ensuring a successful outcome.
The time it takes to design and produce an automotive plastic mould can vary widely depending on several factors. These factors include the complexity of the part, the size of the mould, the number of cavities in the mould, and the specific requirements of the project.
Design Phase: The design phase, which includes creating a 3D model of the part and the mould, can take anywhere from a few days to a few weeks. This phase may take longer if the part is complex or if there are changes to the design.
Mould Production Phase: Once the design is finalized, the mould is manufactured. This process can take a few weeks to a few months, depending on the complexity and size of the mould.
Testing and Refinement Phase: After the mould is manufactured, it's tested by producing sample parts. These parts are inspected for quality, and the mould may be refined or adjusted based on the results. This phase can take a few days to a few weeks.
So, in general, the entire process from design to a ready-to-use mould can take anywhere from a few weeks to several months. It's important to note that this is a general estimate and the actual timeline can vary based on the specifics of the project.
The choice of plastic molding technique has a significant impact on the properties of an automotive part. Different molding techniques offer distinct advantages and limitations, which influence factors such as part strength, surface finish, complexity, cost, and production efficiency. Here's how the choice of molding technique affects the properties of an automotive part:

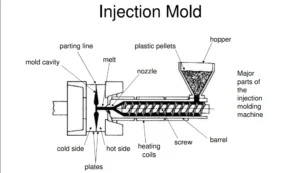

- Injection Molding:
Image courtesy: https://www.cavitymold.com/introduction-injection-molding/
- Properties Affected:
- Strength: Injection-molded parts can have high structural integrity due to uniform material distribution and controlled cooling. This makes them suitable for load-bearing components like structural supports and engine components.
- Surface Finish: Injection molding provides excellent surface finish, essential for automotive parts with visible surfaces. This is particularly important for interior components and exterior body panels.
- Complexity: Complex geometries with undercuts, thin walls, and intricate features are achievable, making injection molding suitable for a wide range of part designs.
- Cost: While initial tooling costs can be higher, economies of scale make injection molding cost-effective for high-volume production.
- Production Efficiency: High production efficiency is achieved due to rapid cycle times, making it ideal for large production runs.
- Compression Molding:
Image courtesy: https://fuziontrading.co.za/compression-moulding-process/
- Properties Affected:
- Strength: Compression-molded parts exhibit higher mechanical strength due to the application of pressure during molding. They are suitable for components subjected to high stresses, like chassis parts and engine mounts.
- Surface Finish: Surface finish may have slight texture due to the nature of the compression molding process. This might not be ideal for components with strict aesthetic requirements.
- Complexity: Suitable for simpler geometries, compression molding is better suited for components without complex undercuts or intricate features.
- Cost: Lower tooling costs compared to injection molding, but cycle times are longer. This technique is cost-effective for medium production volumes.
- Production Efficiency: Production efficiency is moderate, suitable for medium-volume production.

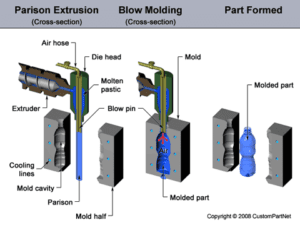

- Blow Molding:
Image courtesy: https://www.custompartnet.com/wu/blow-molding
- Properties Affected:
- Strength: Blow-molded parts often have good strength-to-weight ratios, making them suitable for hollow components like fuel tanks and ducts.
- Surface Finish: Surface finish varies based on mold design and material, which may not meet stringent automotive aesthetics requirements.
- Complexity: Well-suited for hollow geometries but less suitable for complex solid parts.
- Cost: Tooling costs are generally lower than injection molding, especially for larger hollow parts, making it economical for specific applications.
- Production Efficiency: High production efficiency for large-volume production of hollow components, making it suitable for items like fuel tanks.
- Thermoforming:
Image courtesy: https://www.researchgate.net/figure/representation-of-a-thermoforming-process-The-mold-object-of-this-research-is-composed_fig1_340936740
- Properties Affected:
- Strength: Thermoformed parts generally have lower mechanical strength compared to injection-molded parts. They are suitable for non-structural components like interior panels.
- Surface Finish: Surface finish can vary based on mold design and material used. Textured surfaces are common, especially for interior components.
- Complexity: Suitable for large, simple, and flat or slightly contoured parts, making it a choice for interior panels.
- Cost: Lower tooling costs and shorter cycle times make thermoforming cost-effective for larger parts.
- Production Efficiency: High production efficiency for large, flat or slightly contoured parts, suitable for interior components.
- Reaction Injection Molding (RIM):
Image courtesy: https://www.injection-molded-plastics.net/reaction-injection-molding/
- Properties Affected:
- Strength: RIM parts can exhibit good strength-to-weight ratios, making them suitable for lightweight components such as body panels and exterior trim.
- Surface Finish: RIM parts can have smooth or textured finishes based on mold design and material. Smooth finishes are essential for exterior parts.
- Complexity: Suitable for large, complex geometries, including non-structural body panels. This technique allows for integration of features like inserts and reinforcements.
- Cost: Tooling costs are generally lower than traditional injection molding, making it suitable for lower-volume production of larger parts.
- Production Efficiency: Production efficiency is relatively high, especially for larger parts, and is suited for specialty and low- to medium-volume production.
Selecting the right molding technique is a critical decision in automotive part design. It requires a thorough understanding of the part's intended function, material properties, desired aesthetics, production volume, and cost considerations. By carefully evaluating these factors, automotive manufacturers can choose the most suitable molding technique to achieve the desired properties and optimize the overall performance of the parts within the context of the vehicle's design and requirements.
Plastic molds play a crucial role in enhancing the aesthetics of automotive parts. By utilizing various design techniques, surface finishes, and material selections, manufacturers can create visually appealing and high-quality automotive components. Here's how plastic molds can be used to improve the aesthetics of automotive parts:
- Precision in Design:
Plastic molds enable the precise replication of intricate design details. Every contour, curve, and feature can be faithfully reproduced, resulting in parts with a high level of design accuracy. This precision contributes to a visually appealing appearance, as all design elements align seamlessly.
- Intricate Shapes and Textures:
Plastic molding techniques allow for the creation of parts with complex shapes and intricate textures. Whether it's simulating the appearance of carbon fiber, wood grain, or brushed metal, molds can impart these textures onto the part's surface. Such textures add depth, visual interest, and a sense of luxury to the vehicle's interior and exterior components.
- Seamless Integration of Features:
Plastic molds enable the integration of various features directly into the part's design. This integration eliminates the need for separate attachments or components, resulting in a cleaner and more cohesive appearance. Integrated features like grilles, vents, and lighting elements contribute to the overall aesthetics while maintaining functionality.
- High-Quality Surface Finish:
The control over surface finish offered by plastic molds is crucial for achieving a high-quality appearance. Molds can be engineered to produce parts with smooth, glossy finishes or matte textures. These finishes influence how light interacts with the part's surface, affecting reflections and enhancing the overall visual impact.
- Color and Transparency Options:
Plastic molds allow for parts to be molded in a wide range of colors and levels of transparency. This flexibility enables manufacturers to match parts to the vehicle's color scheme or interior design. Transparent plastics can be utilized for lighting lenses and other components that benefit from light diffusion or transmission.
- Part Uniformity:
Plastic molding ensures consistent part dimensions and finishes across production runs. This uniformity is crucial for maintaining visual harmony throughout the vehicle's design. It prevents variations that could distract from the overall aesthetics and design intent.
- Reduced Visible Fasteners:
Plastic molding techniques can incorporate features that eliminate or minimize the need for visible fasteners or joints. This streamlined approach contributes to a clean and modern design aesthetic by reducing visual clutter and creating a more fluid surface.
- Multi-Material Integration:
Molds can facilitate multi-material molding techniques, allowing different materials to be integrated into a single part. This enables the creation of contrast, texture variation, or functional layers within a single component. Multi-material integration can elevate the part's visual appeal and highlight specific design elements.
- Embossing and Logos:
Plastic molds can be designed to incorporate embossed logos, brand names, or other decorative elements directly into the part's surface. These features reinforce brand identity, add a sense of exclusivity, and contribute to the part's visual impact.
- Enhanced Lighting Integration:
Plastic molds can be tailored to accommodate lighting elements seamlessly. For both interior and exterior lighting components, molds can be designed to integrate LEDs or light guides, creating visually striking illumination patterns and enhancing both aesthetics and safety.
- Customization and Personalization:
Plastic molds can be adjusted to cater to customer preferences for custom designs or branding elements. This customization fosters a sense of personal connection between the vehicle and its owner, enhancing the overall ownership experience.
- Reduced Part Weight:
Plastic materials are lightweight compared to traditional materials like metal. This allows for innovative and creative designs that might not be feasible with heavier materials. Lightweight designs can contribute to improved fuel efficiency, handling, and overall vehicle performance.
By harnessing the capabilities of plastic molds, automotive manufacturers can leverage design intricacies, surface finishes, and material choices to create parts that excel in both form and function. This attention to aesthetics not only elevates the visual appeal of vehicles but also enhances brand identity, customer satisfaction, and the overall marketability of automotive products.
