TDL: Reliable Partner Of Rapid Prototyping in China!
Rapid prototyping is essential in new plastic product development and manufacturing. It can help to optimize product design, is suitable for plastic injection molding production, and achieve high-volume mass production. If the manufacturer ignores the prototyping process during plastic product innovation and development, even a little problem in the product design will lead to a significant cost loss.
TDL helps OEM customers and product designing & developing customers with rapid prototyping, like CNC machined plastic & metal prototype, silicone molded prototypes, 3D printed (additive manufacturing) prototypes, etc.
Rapid prototyping process is various. Prototypes can be made by silicone molding, plaster molding, CNC machining, 3D printing (additive manufacturing), etc. TDL choose prototyping technology depend on product feature and quantity.
Rapid Prototyping types
Explore the Versatility of Rapid Prototyping: Dive into the diverse world of rapid prototyping, where advanced methods like CNC Machining, 3D Printing, Vacuum Casting, and Silicone Overmolding bring your innovative designs to life swiftly and accurately.
CNC Machining
A versatile technique for rapid prototyping, CNC machining provides high precision and robustness, perfect for creating functional parts and end-use components.
3D Printing
With unparalleled speed and flexibility, 3D printing enables the creation of complex geometries and structures, making it ideal for visualizing designs and creating intricate prototypes.
Vacuum Casting
A cost-effective method, vacuum casting allows for the quick production of small quantities of high-quality parts, using a silicone mold to replicate an initial prototype.
Silicone Overmolding
Silicone overmolding involves injecting silicone rubber onto a substrate, providing a reliable solution for creating prototypes that require soft-touch or shock-resistant elements.
Our Rapid Prototyping advantages
- Fast lead time Testing products
- Cost savings
- Wide range of materials available for prototypes
- High machining precision

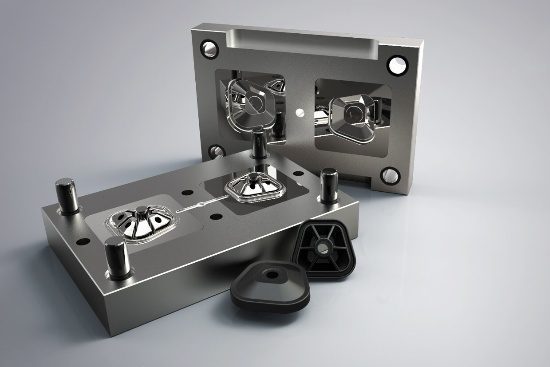

Choose us for injection molding and get up to 100% mold cost refund!
Diverse Industry Solutions
Our expert engineering team offers tailored solutions for a wide range of industries, utilizing innovative technology and design strategies to provide optimal results for our clients.
Medical molds
Specialized innovations focused in meeting the unique needs of the medical industry
Electric & Electronics
Specialized molds for complex electric and electronics applications.
Our Equipment
CMM
Inspection
High Speed CNC Machines

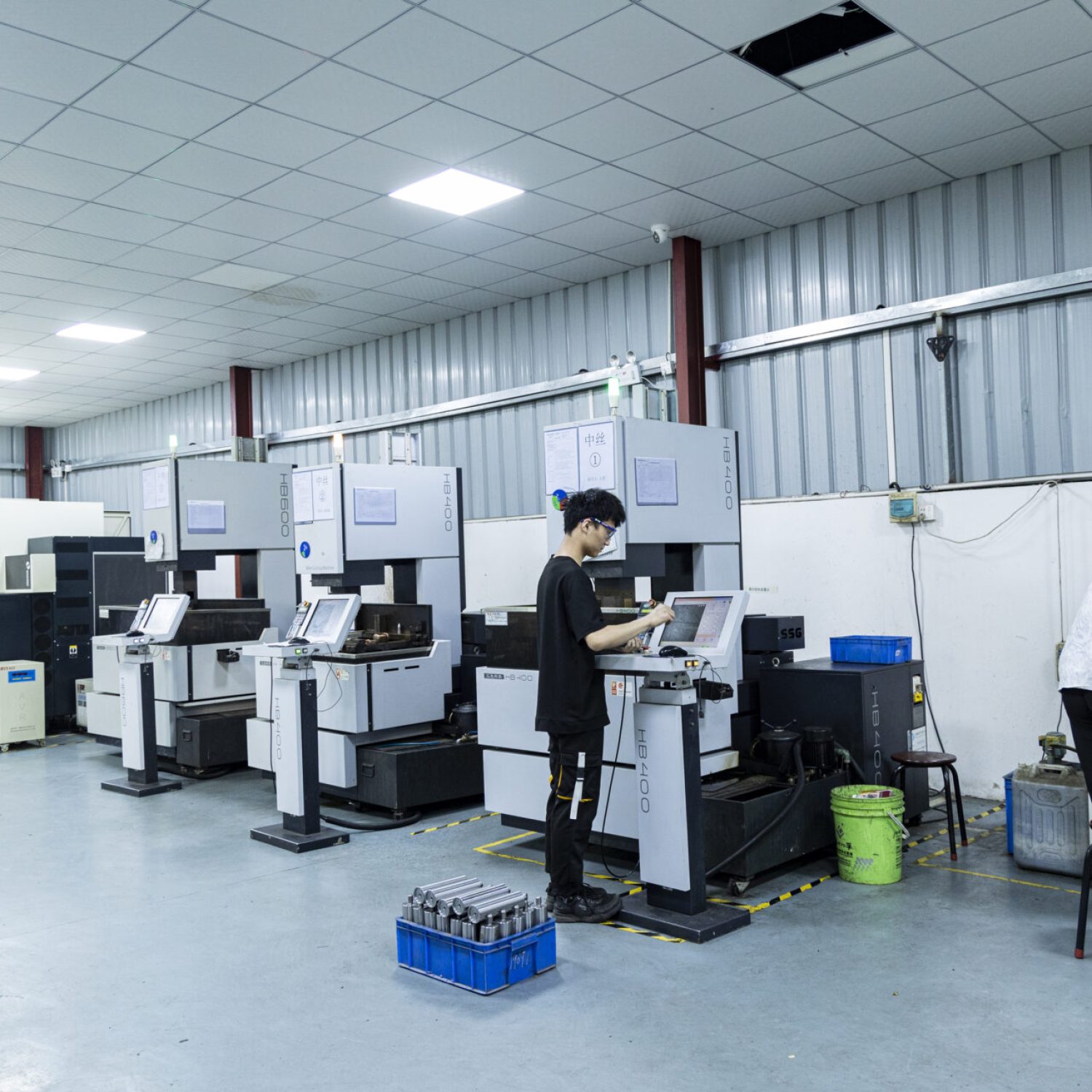

Double-Head EDM Machines
EDM
Workshop
CNC machining Workshop
Plastic Injection Molding Room
Mirror EDM Machining
Mould Spotting Machine
Rapid Prototyping Team
Meet Our Expert Team: The Driving Force Behind TDL Mold’s Innovative Solutions.
FAQ's
Rapid prototyping, also known as rapid prototyping and development (RPD), is a methodology used in various industries to quickly create a scaled-down version or prototype of a product, system, or software application. The primary goal of rapid prototyping is to validate design concepts, test functionality, and gather user feedback before proceeding to full-scale production or development.
The process involves using modern technologies such as 3D printing, computer-aided design (CAD), and computer-aided manufacturing (CAM) to build physical or digital models of the product or system. These prototypes allow designers, engineers, and stakeholders to visualize and interact with the concept in a tangible way, which can lead to better insights, improvements, and potential cost savings.
Key characteristics and advantages of rapid prototyping include:
- Speed: As the name suggests, rapid prototyping allows for quick iterations and adjustments, enabling faster development cycles and reducing time to market.
- Cost-effectiveness: Identifying design flaws and potential issues early in the development process can save significant resources that might otherwise be spent on modifying a product after it has been mass-produced.
- Iterative approach: Multiple prototypes can be created and tested, allowing for incremental improvements and refinements until the final design meets the desired criteria.
- User feedback: Early involvement of end-users and stakeholders in the prototyping stage helps in gathering valuable feedback and insights, leading to a better understanding of user needs and preferences.
- Risk reduction: By validating concepts before committing to full production, rapid prototyping helps reduce the risk of product failures and costly design mistakes.
- Customization: Rapid prototyping allows for the creation of customized products or parts without the need for extensive tooling or specialized manufacturing processes.
Rapid prototyping finds applications across various industries, including automotive, aerospace, healthcare, consumer goods, architecture, education, and more. It has revolutionized product development by providing a tangible and interactive representation of a design, enabling stakeholders to visualize and evaluate the product before investing in mass production.
As technology continues to advance, rapid prototyping is likely to play an even more significant role in shaping the future of manufacturing, driving innovation, and enabling new possibilities across a wide range of industries.
Rapid prototyping offers numerous benefits that make it a game-changer in product development and manufacturing. Its advantages go beyond just saving time and cost, as it fundamentally transforms the way products are designed, tested, and produced.
Here are some key advantages of using rapid prototyping:
- Faster Product Development: Rapid prototyping significantly reduces the time required to create physical prototypes compared to traditional manufacturing methods. Designers and engineers can quickly turn their digital ideas into tangible objects, allowing for faster design iterations and quicker time-to-market. This accelerated development cycle enables companies to stay ahead of competitors and respond more rapidly to market demands.
- Cost Savings: Identifying and resolving design flaws early in the prototyping stage can lead to substantial cost savings in the long run. By catching and addressing potential issues before investing in mass production tooling, companies can avoid expensive rework and modifications. Rapid prototyping also reduces material waste, as it only uses the exact amount of material needed to create the prototype.
- Design Flexibility and Innovation: Rapid prototyping's additive nature allows designers to explore unconventional shapes and complex geometries that would be difficult or impossible to achieve through traditional manufacturing methods. This design flexibility fosters innovation, enabling the creation of more functional, efficient, and aesthetically appealing products.
- Customization and Personalization: Rapid prototyping enables the production of customized or personalized products tailored to individual customer needs and preferences. This level of customization enhances customer satisfaction and opens up opportunities in industries like healthcare, where patient-specific products (e.g., medical implants) can be created.
- Improved Design Validation: Physical prototypes generated through rapid prototyping provide tangible representations of the digital designs. Stakeholders can interact with the prototypes, inspect their features, and validate the design's functionality, ergonomics, and aesthetics. This hands-on approach enhances communication and collaboration among team members, leading to better-informed design decisions.
- Rapid Iteration and Testing: Rapid prototyping allows for quick iterations and testing of design concepts. Designers can rapidly refine and optimize their designs based on feedback and test results, leading to a higher-quality end product. The ability to iterate rapidly accelerates the innovation process and facilitates continuous improvement.
- Functional Testing and Validation: Physical prototypes created through rapid prototyping can be subjected to functional testing to validate the design's performance and functionality. This is particularly important in industries like aerospace and automotive, where prototypes can undergo rigorous testing to ensure safety and compliance with industry standards.
- Reduced Manufacturing Complexity: In traditional manufacturing, complex designs often require specialized tooling and multiple production steps. Rapid prototyping simplifies the manufacturing process by directly translating digital designs into physical objects. This streamlines production and reduces the need for additional tooling and setup.
- Risk Reduction: Rapid prototyping helps mitigate the risks associated with new product development. By producing physical prototypes early in the design process, potential issues and challenges can be identified and addressed before large-scale production, reducing the risk of costly and time-consuming rework.
- Enhanced Communication and Collaboration: Rapid prototyping facilitates better communication between design teams, stakeholders, and clients. It bridges the gap between digital concepts and physical reality, making it easier for non-technical stakeholders to understand and provide feedback on the product design.
In conclusion, rapid prototyping revolutionizes product development and manufacturing by offering numerous benefits, including faster time-to-market, cost savings, design flexibility, and improved design validation. It empowers designers and engineers to push the boundaries of innovation, create personalized products, and iterate rapidly, leading to better products and a competitive advantage in today's fast-paced market.
There are several different types of rapid prototyping techniques, each with its own approach to creating physical prototypes layer by layer. These techniques utilize various materials and technologies to bring the digital designs to life. Let's explore the most common rapid prototyping methods in detail:
- Stereolithography (SLA):
- Working Principle: SLA is one of the earliest rapid prototyping technologies. It uses a UV laser to selectively cure a liquid photopolymer resin, solidifying it layer by layer. The build platform descends slightly after each layer is cured to make room for the next layer.
- Materials: SLA can work with a wide range of photopolymer resins, each offering different properties like rigidity, flexibility, or transparency.
- Applications: SLA is ideal for creating highly detailed and accurate prototypes with smooth surface finishes. It is commonly used in product development, engineering, and jewelry design.
- Selective Laser Sintering (SLS):
- Working Principle: SLS uses a high-powered laser to fuse powdered materials, such as plastics, metals, or ceramics, layer by layer. The un-sintered powder supports the part during printing, eliminating the need for support structures.
- Materials: SLS can work with a variety of materials, including nylon, polyamide, metal powders (e.g., aluminum, titanium), and ceramics.
- Applications: SLS is suitable for producing functional and durable prototypes, end-use parts, and components with complex geometries. It is widely used in aerospace, automotive, and manufacturing industries.
- Fused Deposition Modeling (FDM):
- Working Principle: FDM is a popular and user-friendly rapid prototyping method. It works by extruding thermoplastic material through a heated nozzle. The material is deposited layer by layer, and each layer quickly solidifies to build the prototype.
- Materials: FDM mainly uses thermoplastics like ABS, PLA, PETG, and others.
- Applications: FDM is widely used for concept modeling, functional prototypes, and low-cost manufacturing. Its accessibility and ease of use make it a popular choice for rapid prototyping applications.
- Digital Light Processing (DLP):
- Working Principle: DLP is similar to SLA but uses a digital light projector to flash an entire layer of the resin at once, solidifying it in a single exposure.
- Materials: DLP uses similar photopolymer resins as SLA.
- Applications: DLP is known for its fast printing speeds and is suitable for producing detailed prototypes and small-scale production parts.
- PolyJet Printing:
- Working Principle: PolyJet technology uses multiple print heads to jet and cure photopolymer materials onto a build platform. It can simultaneously print multiple materials and colors in a single layer, allowing for multi-material and multi-color prototypes.
- Materials: PolyJet can work with a range of photopolymers, offering a variety of mechanical properties and colors.
- Applications: PolyJet is commonly used in industries that require multi-material prototypes, such as product design, medical modeling, and consumer goods.
- Binder Jetting:
- Working Principle: In binder jetting, a liquid binder is selectively jetted onto a powder bed to bind the particles together layer by layer. After printing, the part is removed from the unbound powder and may undergo post-processing steps to enhance its strength.
- Materials: Binder jetting can work with various materials, including metals, ceramics, and sand.
- Applications: Binder jetting is widely used in the production of metal and ceramic prototypes, functional parts, and even large-scale architectural models.
- Electron Beam Melting (EBM) and Direct Metal Laser Sintering (DMLS):
- Working Principle: Both EBM and DMLS use high-energy sources (electron beams or lasers) to selectively melt and fuse metal powders to build metal prototypes and parts layer by layer.
- Materials: These methods work with various metal powders, including stainless steel, titanium, and aluminum.
- Applications: EBM and DMLS are utilized in aerospace, medical, and automotive industries for producing high-strength metal prototypes, components, and customized implants.
- Laminated Object Manufacturing (LOM):
- Working Principle: LOM builds prototypes by layering and bonding sheets of paper or other materials with adhesive. A laser or knife then cuts the outline of the part on each layer. The uncut areas form the prototype, while the excess material serves as a temporary support structure.
- Materials: LOM typically uses paper, but it can also work with materials like plastic, wood, or metal foils.
- Advantages: LOM is relatively low-cost and suitable for large prototypes or parts. It offers good accuracy and surface finish, making it useful for concept modeling and visual representation.
- Applications: LOM is used in architectural modeling, concept modeling, and visualization in industries like construction and product design.
Each of these rapid prototyping techniques offers unique advantages, making them suitable for different applications and industries. As technology continues to advance, new rapid prototyping methods may emerge, further expanding the possibilities in product development and manufacturing.
In conclusion, rapid prototyping encompasses a diverse range of techniques, each with its unique strengths and applications. These methods have revolutionized product development and manufacturing by providing faster, more cost-effective, and innovative ways to create physical prototypes and functional parts. As technology continues to advance, rapid prototyping is poised to play an even more significant role in shaping the future of design and manufacturing across various industries.
3D printing, also known as additive manufacturing, is a fundamental and highly significant component of rapid prototyping. It plays a crucial role in transforming design concepts into physical objects quickly and cost-effectively. Here's how 3D printing fits into the rapid prototyping process:
- Fast and Iterative Prototyping: 3D printing allows for rapid and iterative creation of prototypes. Designers and engineers can quickly produce multiple versions of a product design with different iterations to test and evaluate various concepts efficiently. This speed of iteration is one of the key benefits of 3D printing in the prototyping phase.
- Visualization of Concepts: 3D printing enables the transformation of digital designs into tangible objects. This makes it easier for stakeholders, clients, and end-users to visualize and interact with the prototype, providing a better understanding of the product's form and functionality. The physical representation helps in conveying ideas more effectively than digital renderings alone.
- Complex Geometries: 3D printing can handle complex geometries that may be challenging or even impossible to produce using traditional manufacturing methods. This capability allows designers to explore innovative and intricate designs that can lead to more optimized and efficient products.
- Customization and Personalization: 3D printing allows for easy customization of prototypes. Designers can tailor prototypes to specific requirements and preferences without incurring the high costs and lead times associated with traditional tooling.
- Reduced Costs: While initial investment in 3D printing equipment might be significant, the overall cost of producing prototypes can be lower compared to traditional manufacturing methods. 3D printing eliminates the need for expensive tooling and reduces material waste, making it cost-effective for small-batch production.
- Functional Prototypes: Some 3D printing technologies and materials can produce functional prototypes that closely mimic the mechanical properties of the final product. This is particularly valuable for testing and evaluating the performance of the prototype under realistic conditions.
- Ease of Design Modifications: With 3D printing, design modifications can be made quickly and easily. Designers can update the digital model and print a revised version of the prototype within a short time, enabling a highly iterative design process.
- Risk Reduction: By creating physical prototypes early in the design process, 3D printing helps identify potential design flaws, manufacturing issues, and other problems. This early detection and resolution of issues significantly reduce the risk of costly errors during full-scale production.
- Bridge to Production: In some cases, 3D-printed prototypes can serve as a bridge to production, allowing manufacturers to test the product in the market or conduct user trials before committing to large-scale manufacturing.
Overall, 3D printing is a powerful tool that accelerates the rapid prototyping process, facilitates design validation, and fosters innovation in product development. Its ability to quickly turn digital designs into tangible objects makes it an essential part of the iterative and user-centric approach characteristic of rapid prototyping methodologies.
Rapid prototyping, also known as additive manufacturing or 3D printing, offers a wide range of materials that can be used to create physical prototypes. These materials vary in properties such as strength, flexibility, transparency, thermal resistance, and biocompatibility, making them suitable for different applications and industries. Here is a detailed overview of the materials commonly used in rapid prototyping:
- Thermoplastics:
- ABS (Acrylonitrile Butadiene Styrene): ABS is a widely used thermoplastic known for its toughness, impact resistance, and durability. It is commonly used in Fused Deposition Modeling (FDM) and is suitable for functional prototypes and low-cost production parts.
- PLA (Polylactic Acid): PLA is a biodegradable thermoplastic derived from renewable resources such as cornstarch or sugarcane. It is often used in FDM due to its ease of printing and is commonly used for concept models and environmentally friendly applications.
- PETG (Polyethylene Terephthalate Glycol): PETG is a durable and impact-resistant thermoplastic that offers improved flexibility and transparency compared to ABS. It is used in FDM for applications that require both strength and clarity.
- Nylon (Polyamide): Nylon is a versatile thermoplastic with high tensile strength, impact resistance, and good wear properties. It is commonly used in Selective Laser Sintering (SLS) and Multi Jet Fusion (MJF) for functional prototypes and end-use parts.
- Photopolymer Resins:
- Standard Resins: Standard resins offer good detail and surface finish and are commonly used in Stereolithography (SLA) and Digital Light Processing (DLP). They are suitable for visual models and concept validation.
- Engineering Resins: Engineering resins offer enhanced mechanical properties, such as increased strength, heat resistance, or flexibility. They are used in SLA, DLP, and PolyJet printing for functional prototypes and parts that require specific performance characteristics.
- Biocompatible Resins: Biocompatible resins are suitable for medical and healthcare applications. They are used in SLA and DLP to create surgical guides, anatomical models, and custom medical devices.
- Metals:
- Stainless Steel: Stainless steel is commonly used in Direct Metal Laser Sintering (DMLS) and Electron Beam Melting (EBM) to produce metal prototypes with good corrosion resistance and mechanical properties.
- Titanium: Titanium is known for its high strength-to-weight ratio and biocompatibility. It is used in DMLS and EBM for aerospace, medical implants, and lightweight applications.
- Aluminum: Aluminum is lightweight and offers good strength and thermal conductivity. It is used in DMLS for aerospace, automotive, and industrial applications.
- Ceramics:
- Alumina: Alumina (aluminum oxide) is a ceramic material with high hardness, wear resistance, and electrical insulating properties. It is used in binder jetting for producing ceramic prototypes.
- Zirconia: Zirconia is a ceramic material with high strength and toughness. It is used in binder jetting for dental applications like crowns and bridges.
- Composites:
- Carbon Fiber: Carbon fiber composites combine carbon fibers with thermoset or thermoplastic resins to create lightweight and high-strength prototypes used in FDM, SLA, and other techniques.
- Fiberglass: Fiberglass composites offer strength and versatility. They are used in FDM and SLA for functional prototypes and lightweight parts.
- Other Materials:
- Sand: Sand is used in binder jetting to create sand molds and cores for metal casting processes.
- Wax: Wax is used in some rapid prototyping methods, like investment casting patterns.
It's important to note that the availability of materials depends on the specific rapid prototyping technology being used. As technology advances, new materials with improved properties and applications continue to emerge, expanding the possibilities of rapid prototyping across various industries.
Rapid prototyping offers several ways to speed up the product development process, enabling companies to bring products to market faster and with greater efficiency. Here are the key ways in which rapid prototyping accelerates product development:
- Faster Design Iterations: Rapid prototyping enables designers and engineers to quickly create multiple iterations of a product design. Instead of waiting for weeks or months for traditional tooling, rapid prototyping techniques like 3D printing can produce functional prototypes within hours or days. This speed of iteration allows teams to explore various design alternatives and make improvements faster.
- Early Validation and Testing: By creating physical prototypes early in the design process, rapid prototyping facilitates early validation and testing of product concepts. Engineers can test the functionality, form, and fit of the prototype, identify design flaws, and make necessary adjustments promptly. Catching and resolving issues early helps avoid costly rework later in the development process.
- User Feedback and Iterative Improvement: Rapid prototyping allows for early involvement of end-users and stakeholders in the development process. This fosters a user-centric approach, as feedback can be incorporated into subsequent design iterations. The iterative nature of rapid prototyping allows for continuous improvements based on real-world feedback.
- Reduced Lead Times: Traditional manufacturing methods often involve long lead times for tooling, setup, and production. Rapid prototyping significantly reduces lead times by eliminating the need for complex tooling. It enables companies to produce prototypes in a matter of days, accelerating the overall product development timeline.
- Customization and Personalization: Rapid prototyping techniques like 3D printing enable easy customization and personalization of products. This is particularly valuable in industries where individualized products or small batches are in demand. Customization can be achieved without the need for expensive tooling changes, making it cost-effective.
- Streamlined Communication and Collaboration: Physical prototypes serve as tangible representations of design concepts. They facilitate clearer communication and collaboration among team members, stakeholders, and clients. This streamlined communication helps align everyone's understanding of the product and expedites decision-making processes.
- Accelerated Tooling Development: Rapid prototyping can be used to create molds and tooling for traditional manufacturing methods. This accelerates the tooling development phase, enabling companies to move more quickly from prototyping to full-scale production.
- Risk Reduction: Rapid prototyping helps mitigate risks associated with product development. Early validation, testing, and user feedback enable teams to identify and address potential issues before significant resources are committed to mass production. This proactive approach reduces the risk of costly mistakes and product failures.
- Parallel Development: In some cases, multiple teams can work in parallel on different aspects of the product using various rapid prototyping techniques. This parallel development approach reduces the overall time required to complete the product development cycle.
- Early Marketing and Market Testing: With functional prototypes in hand, companies can start marketing and conducting market testing earlier in the development process. This early exposure can generate interest, gather valuable market insights, and provide a head start in the market.
By leveraging rapid prototyping, companies can streamline their product development processes, improve collaboration, make informed design decisions, and ultimately bring high-quality products to market faster and more efficiently. The iterative and user-centric approach of rapid prototyping encourages innovation, reduces the time spent on revisions, and increases the overall likelihood of product success.
Rapid prototyping finds applications in a wide range of industries, where it serves as a valuable tool for product development, design validation, and innovation. Some of the industries that commonly use rapid prototyping include:
- Automotive:
The automotive industry heavily relies on rapid prototyping for various aspects of vehicle development. Designers use 3D printing to create visual models and physical prototypes of car exteriors and interiors, allowing them to assess aesthetics and ergonomics. Engineers use functional prototypes to test vehicle components like engine parts, suspension systems, and dashboard elements for fit, form, and functionality. Rapid prototyping enables iterative design improvements, reducing development time and costs before moving to mass production.
- Aerospace and Aviation:
In aerospace and aviation, rapid prototyping plays a crucial role in designing and testing aircraft components and systems. Engineers use advanced 3D printing techniques to create lightweight, high-strength parts with intricate geometries, such as turbine blades, brackets, and ducts. Prototypes of cabin interiors and aircraft structural elements help optimize space utilization and improve passenger comfort. Rapid prototyping aids in the rapid iteration of designs and accelerates the development of new aerospace technologies.
- Consumer Electronics:
The consumer electronics industry leverages rapid prototyping for designing and testing electronic devices like smartphones, laptops, wearables, and smart home gadgets. It allows for the quick fabrication of functional prototypes to assess user interface design, electronics integration, and internal component layouts. This iterative process helps manufacturers refine their products for better performance and user experience before launching them in the market.
- Medical and Healthcare:
Rapid prototyping has revolutionized the medical and healthcare industries, especially in medical device development. Surgeons use 3D-printed patient-specific models to plan complex surgeries and practice procedures. Custom prosthetics and orthotics are precisely tailored to individual patients using rapid prototyping. The technology enables the creation of patient-specific implants, such as cranial plates and hip replacements, offering better fit and improved outcomes.
- Industrial Equipment and Machinery:
Manufacturers of industrial equipment and machinery use rapid prototyping for design validation and functional testing. It helps engineers create scaled-down models of machines and equipment to assess assembly and functionality before moving to large-scale production. Rapid prototyping facilitates quick design iterations, reducing development time and cost for industrial machinery.
- Architecture and Construction:
The architecture and construction industries utilize rapid prototyping to create physical models of buildings and structures. Architects can visualize and present their design concepts effectively to clients and stakeholders. Rapid prototyping aids in the evaluation of design aspects like spatial relationships, building massing, and structural integrity before breaking ground on the actual construction.
- Toys and Entertainment:
The toy industry benefits from rapid prototyping to design, test, and refine new toys and gaming accessories quickly. Designers can create 3D-printed prototypes to assess playability, ergonomics, and safety. Rapid prototyping enables faster development cycles and quicker releases of new toys and entertainment products.
- Jewelry:
In the jewelry industry, rapid prototyping allows designers to create wax or resin models of custom-designed jewelry pieces. These prototypes are then used to produce molds for casting in precious metals like gold and silver. Rapid prototyping facilitates the creation of intricate and personalized jewelry designs with minimal lead time.
- Fashion and Apparel:
Fashion designers use rapid prototyping to create prototypes of clothing and accessories. 3D-printed fashion prototypes help designers experiment with various styles, fits, and materials. It allows them to visualize how garments will look on a human body before going into traditional manufacturing.
- Art and Sculpture:
Artists and sculptors utilize rapid prototyping technologies to create intricate and large-scale art installations. The versatility of 3D printing allows artists to experiment with various forms and shapes that would be challenging or time-consuming to create using traditional methods.
- Defense and Military:
The defense sector employs rapid prototyping for developing and testing prototypes of military equipment, gear, and specialized tools. It enables the quick iteration of designs and the evaluation of prototypes' performance under simulated conditions.
Rapid prototyping continues to play a vital role in accelerating innovation, improving design quality, and reducing time-to-market across numerous industries. As technology advances and new materials are introduced, the applications of rapid prototyping are expected to expand further.
Yes, rapid prototyping can be used for mass production, but there are certain considerations and limitations to keep in mind. While rapid prototyping is excellent for creating functional prototypes and low-volume production runs, it may not be the most efficient or cost-effective method for large-scale manufacturing. Here's how rapid prototyping can be used in mass production:
- Bridge to Production: Rapid prototyping can serve as a bridge to production. Once a prototype is validated and ready for mass production, the same design can be used to create molds or tooling required for traditional manufacturing methods, such as injection molding or casting. This approach allows for a seamless transition from the prototyping phase to full-scale production.
- Customization and Small Batches: Rapid prototyping technologies, such as 3D printing, are well-suited for producing customized or personalized products in small batches. These technologies eliminate the need for expensive tooling, making them more cost-effective for producing limited quantities.
- On-Demand Manufacturing: With the advancement of additive manufacturing technologies, on-demand manufacturing is becoming more feasible. Companies can 3D print products on-demand, reducing inventory costs and the need for mass production runs.
- Niche Markets and Specialized Products: In niche markets where demand is relatively small or for specialized products with unique designs, rapid prototyping can be a viable option for mass production. It allows companies to produce tailored products without the high setup costs associated with traditional manufacturing methods.
- Iterative Improvements: Even during mass production, rapid prototyping can still play a role in the iterative improvement of products. Companies can use 3D printing or other rapid prototyping methods to quickly produce and test modified designs or incremental improvements without disrupting the main production process.
- Spare Parts and Obsolescence Management: For legacy products or components that are no longer in regular production, rapid prototyping can be used to produce spare parts on-demand, ensuring a continuous supply for customers and reducing the need for extensive inventory.
However, there are some challenges and limitations when using rapid prototyping for mass production:
- Production Speed: Rapid prototyping techniques might not be as fast as traditional mass production methods, which could impact the overall production speed and output.
- Material Selection: The range of materials available for rapid prototyping might not match the diversity offered by traditional manufacturing processes, limiting the choice of materials for mass production.
- Costs: While rapid prototyping can be cost-effective for small batches and customization, it may become more expensive for very large production volumes compared to traditional manufacturing methods.
- Quality and Consistency: The quality and consistency of parts produced through rapid prototyping can vary compared to those produced through well-established mass production processes.
- Scale of Production: Mass production typically requires dedicated production lines and optimized processes. Rapid prototyping might not be scalable to handle extremely high volumes efficiently.
In summary, rapid prototyping can play a role in mass production, especially for niche markets, customized products, and on-demand manufacturing. It can complement traditional manufacturing processes and serve as a valuable tool for bridging the gap between the prototyping phase and full-scale production. However, for high-volume and continuous mass production, traditional manufacturing methods are generally more suitable due to their efficiency and economies of scale.
Choosing the right rapid prototyping technique for your project involves considering several key factors. Each technique has its strengths and limitations, and the best choice depends on your project's specific requirements, budget, timeline, and desired outcomes. Here are some steps to help you make the right decision:
- Project Requirements and Objectives: Start by thoroughly understanding the requirements and objectives of your project. Identify the purpose of the prototype, whether it is for visual validation, functional testing, form and fit evaluation, or a combination of these factors. Clearly defining your project goals will guide you in selecting the most appropriate rapid prototyping technique.
- Prototype Complexity and Design: Consider the complexity and intricacy of your prototype design. Some rapid prototyping techniques, like Stereolithography (SLA) and Digital Light Processing (DLP), are capable of producing fine details and smooth surfaces, making them ideal for intricate designs. On the other hand, Fused Deposition Modeling (FDM) may be better suited for simpler geometries.
- Materials Required: Identify the materials that are crucial for your prototype. Different rapid prototyping techniques support specific materials, such as thermoplastics, photopolymers, metals, ceramics, or composites. Ensure that the chosen technique is compatible with the material properties you need.
- Prototype Size and Scale: Consider the size and scale of your prototype. Some techniques are better suited for creating larger parts, while others are more appropriate for smaller, detailed components. Ensure that the chosen technique can accommodate the dimensions of your prototype.
- Functional Requirements: Determine if your prototype needs to be functional or if a visual model will suffice. Some rapid prototyping techniques can produce functional prototypes with mechanical properties similar to the final product. For functional testing, techniques like SLA, SLS, or PolyJet may be suitable.
- Surface Finish: If achieving a smooth surface finish is important for your prototype, techniques like SLA and DLP tend to offer higher-quality surface finishes compared to FDM.
- Budget Constraints: Evaluate your budget for the prototyping process. Different rapid prototyping techniques vary in terms of costs, materials, and equipment required. Consider the cost per prototype and the overall project budget when selecting a technique.
- Lead Time and Speed: Assess the timeline for your project. Some rapid prototyping techniques have faster turnaround times, allowing for quicker iterations and design improvements. Consider the speed of production to meet your project deadlines.
- Quantity Needed: Determine the quantity of prototypes required. Some techniques are more suitable for low-volume production or small-batch manufacturing, while others can handle larger quantities.
- Available Equipment and Expertise: Consider the equipment and expertise available to you or your team. If you have experience with a particular rapid prototyping technique or have access to specialized equipment, it might be advantageous to leverage that knowledge.
- Material Properties: Identify specific material properties that are crucial for your project. For example, if you need a prototype with high strength, heat resistance, or flexibility, ensure that the chosen technique can produce prototypes with those material properties.
- Testing and Validation Requirements: If you need to conduct extensive testing and validation on your prototype, choose a technique that can produce functional prototypes with accuracy and precision.
- Feedback and Collaboration: Involve all stakeholders in the decision-making process. Gather feedback from design, engineering, and end-users to ensure that the chosen technique aligns with everyone's needs and expectations.
- Evaluate Prototyping Service Providers: If you don't have the necessary equipment or expertise in-house, consider partnering with a reputable rapid prototyping service provider. Research different service providers, review their capabilities, and check their portfolio to ensure they can meet your project requirements.
- Consider Future Scaling: Think about the potential future needs of your project. If successful, will you need to scale up production? Factor in the scalability of the chosen rapid prototyping technique.
- Risk Assessment: Perform a risk assessment, considering factors such as technical feasibility, potential challenges, and uncertainties associated with each rapid prototyping technique. Choose a technique that minimizes risks and aligns with your risk tolerance.
By carefully considering these factors and conducting thorough research on different rapid prototyping techniques, you can make an informed decision that best suits your project's needs and leads to a successful outcome. Remember that the choice of rapid prototyping technique should align with your project goals, budget, timeline, and desired prototype characteristics to ensure a smooth and efficient product development process.
