A mold is a mold-forming structural element used in injection molding, pressing of polymer composite materials. The design and geometry of the mold determines the shape of the future product, its texture, roughness, density, strength. Molds are used for serial production of plastic products of identical configuration.

TDL specializes in mold design & manufacturing for a variety of applications, including automotive parts, medical devices, consumer electronics, and industrial plastic components. We have rich experience in producing high-precision molds for items such as automotive lighting, bumpers, decorative trims, LED lenses, medical tips, and centrifuge tubes.

Play Video

As a leading company of mold manufacturing in China, TDL excels in the production of automotive lamp molds. Our team consists of 28 plastic mold engineers and 45 skilled technicians who are adept at crafting precise plastic molds.

TDL sources its steel from reputable suppliers such as LKM, Gröditz, and ASSAB. Depending on the mold manufacturing requirements, we opt for steel from the USA and Japan for mould manufacturing. Our reliable steel suppliers, skilled technicians, and advanced precision mould manufacturing equipment ensure the high quality of our moulds.

Annually, TDL has the capacity to manufacture 570 mould sets, with about 40% of these catering to the automotive industry. The remaining capacity is dedicated to creating moulds for medical equipment and consumer electronics products.We are proficient in creating moulds for premium automotive brands such as Land Rover, Mercedes Benz, and BMW.

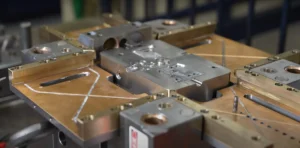

Our engineers design plastic moulds based on the features of the plastic part. The mould types we create include 2 plate moulds, 3 plate moulds, pin-point gate moulds, hot runner manifold moulds, thoroughly hardened moulds (above 44HRC), and pre-hardened moulds (below 44HRC). For mould manufacturing, we utilize hot runner systems from leading brands such as DME, MOLD-MASTER, SYNVENTIVE, HUSKY, INCOE, YOUDU, SM, and more.

Our Mold Manufacturing Process

Project Plan

A project plan outlines scope, tasks, timeline, resources, responsibilities, risks, stakeholder communication, review points, and budget.

DFM Report

A DFM report assesses a product's design for efficient, cost-effective manufacturing, analyzing process, material, geometry, tolerances, and costs.

Mold 2D/3D Design

Mold 2D/3D Design involves creating, simulating, and testing a mold design using CAD software for efficient and accurate manufacturing.

Customer Approve of Mould Design

The Customer Approval of Mould Design stage involves customer review and approval of the mold design before manufacturing begins.

Mould Production

Mould Production involves mould design, material selection, machining, assembly, and testing for mass production.

Mould Trial

The Mould Trial tests injection molds, producing and inspecting parts to ensure design specifications and quality before full-scale production.

Sample Inspection

Sample Inspection involves examining prototypes and initial production samples for design accuracy, quality control, and continuous improvement.

Customer Approve of Sample

The Customer Approval stage involves prototype presentation, customer review, feedback and revisions, and final approval.

Mould Delivery

Mould Delivery involves mold packing and delivery.

Products

What Products' Molds We Made?

How Does TDL Achieve Precision in Automotive Door Handle Mold Manufacturing?

TDL excels in automotive door handle mold manufacturing by leveraging advanced technology and innovative solutions. They meet stringent client requirements for precision, quality, and short lead times through meticulous design, mold flow analysis, and rigorous quality control, ensuring superior performance and aesthetic standards.

door handle

How Does TDL Excel in Low-Pressure Injection Mold Manufacturing?

TDL excels in precision low-pressure injection mold manufacturing, transforming complex customer requests into high-quality molds using advanced techniques, rigorous quality control, and innovative solutions to overcome challenges.

Low pressure Injection

How Does TDL Achieve Precision in Knob Lock Mold Manufacturing?

TDL excels in manufacturing knob lock molds by leveraging advanced techniques, precision engineering, and rigorous quality control. Meeting stringent client requirements, they ensure high durability, efficient production cycles, and cost-effectiveness, showcasing their expertise in delivering exceptional mold solutions.

Knob Lock Mold Case Study

How Does TDL Revolutionize Plastic Tester Mold Manufacturing?

TDL excels in plastic tester mold manufacturing by integrating innovation, precision, and expertise. They meet high industry standards and client demands through advanced techniques, rigorous quality control, and efficient solutions, ensuring excellence in every mold produced.

Plastic Tester Mold

How Does TDL Achieve Precision in Helical Gear Mold Manufacturing?

TDL excels in helical gear mold manufacturing by combining precision engineering, advanced technology, and rigorous quality control. Meeting stringent client demands, TDL delivers high-accuracy molds that ensure seamless gear transmission, addressing complex challenges with innovative solutions and maintaining industry-leading standards.

Helical Gear Mold

How Does TDL Lead the Way in Automotive Tank Mold Manufacturing?

TDL excels in automotive tank mold manufacturing by integrating precision, innovation, and advanced technology. Their expertise ensures high-quality, efficient, and durable molds that meet stringent industry standards and client requirements, overcoming challenges with strategic solutions and rigorous quality control.

Automotive Tank Mold Manufacturing

Choose us for injection molding and get up to 100% mould cost refund!

Diverse Industry Solutions

Our expert engineering team offers tailored solutions for a wide range of industries, utilizing innovative technology and design strategies to provide optimal results for our clients.

Medical molds

Specialized innovations focused in meeting the unique needs of the medical industry

Automotive

Advanced mold solutions for the automotive industry's unique demands

Aerospace

Tailored aerospace mold solutions for precision and quality

Industrial molds

Custom industrial molds for high-volume production and efficiency

Automation & Robotics

Precision mold solutions for automation and robotics industry

Electric & Electronics

Specialized molds for complex electric and electronics applications.

Advantages

What are our advantages

Experience, Expertise, and Excellence: The Advantages of Choosing TDL Engineering Solutions.

20 + Years Experience

TDL mould has been manufacturing plastic tools for automotive, medical device, and electronics for over 20 years.

Advanced Equipment

TDL factory is equipped with advanced mold manufacturing equipment and precision measuring instruments CMM.

On-Time Delivery

TDL schedule every mold projects manufacturing process very well, can guarantee on-time delivery for each production.

Professional Team

TDL mold design & engineering team has 34 skilled engineers to provide technical support for plastic mold making and plastic processing.

One-Stop Solution

TDL offers a one stop solution to meet customers all demands about plastic mould and customized plastic products manufacturing.

Good After-sales Service

TDL is responsible for quality of each mold, will sign mold quality warranty with customers for every tools.

Our Mould Manufacturing Team

Meet Our Expert Team: The Driving Force Behind TDL Mold’s Innovative Solutions.

How do we control the quality in mold manufacturing

Quality is important to TDL mold manufacturing, it is also non-negotiable for clients.
TDL relies on high-quality plastic molds and injection molding products to obtain a very good reputation, trust and long-term cooperation with clients.

TDL is proud to hold the ISO 9001:2015 certification, an internationally recognized quality management standard. TDL factory is also: IATF16949:2016 certified, ISO 13485:2016 certified. See certifications.
plastic molding manufacturing lancaster pa

Incoming Material Inspection

All raw materials are verified for conformity upon receipt. Our Quality Control team inspect dimensions, hardness to ensure molds’ long service life.

Manufacturing Inspection

In the mold manufacturing process, measurement of each mold parts and the electrodes is essential. Only when the dimension of each part is confirmed will it enter the next step. The advantage of doing this is to spot any possible errors in advance, avoiding waste of time and money.

plastic injection mold manufacturers
plastic injection molding manufacturers

Finished Products and Shipment Inspection

Finished parts undergo final inspection by our Quality System Manager or shipping personnel prior to any shipment. All parts are visually inspected and are carefully packaged and compactly packaged to ensure their safe arrival to our customers at minimum cost.

Our After-Sales Service

At TDL, we believe that customer satisfaction doesn’t end when the project is completed. We offer comprehensive after-sales services to ensure that our clients receive the support they need even after their products have been delivered.

Our team of experienced professionals is dedicated to providing timely assistance and addressing any concerns that may arise. Whether it’s troubleshooting technical issues, providing maintenance services or replacing defective parts, we go above and beyond to ensure that our clients are completely satisfied with our work. We are committed to building long-term relationships with our clients and our after-sales service is just one of the ways we demonstrate this commitment.

plastic injection molding manufacturing

FAQ's

Plastic mold manufacturing is the process of creating custom-made tools, known as molds or dies, that are used in plastic molding processes. These molds are used to shape raw plastic material into specific forms or shapes to produce plastic parts or products.

The process typically involves the following steps:

  1. Design: Mold designers create a detailed 3D model of the mold using computer-aided design (CAD) software. They consider the dimensions, features, and functions required for the plastic part.
  2. Material Selection: The appropriate mold material, usually high-quality steel or aluminum, is chosen based on factors like production volume, plastic material, and part complexity.
  3. Machining: The chosen mold material is machined or fabricated to create mold components, such as the core and cavity, with precise dimensions and details.
  4. Assembly: The mold components are carefully assembled to form the complete mold.
  5. Cooling System Design: Efficient cooling channels are designed within the mold to control the temperature during the molding process.
  6. Testing and Validation:  The assembled mold undergoes testing and validation to ensure it meets the required specifications and is ready for production.

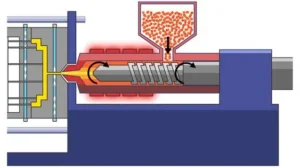

  7. Production:  The mold is mounted on a plastic molding machine, and the molten plastic material is injected into the mold cavity. The plastic material takes the shape of the mold, and after cooling and solidification, the molded plastic part is ejected from the mold.

Plastic mold manufacturing is a crucial process in various industries, as it enables the mass production of plastic products used in everyday items, ranging from household items to automotive components and electronics. The quality of the mold and its precision directly impact the quality and consistency of the final plastic parts produced.

The plastic mold manufacturing process is a complex and precise procedure that involves several steps to create custom-made molds used in plastic molding processes. These molds are instrumental in shaping raw plastic material into specific forms or shapes to produce plastic parts or products. Here is a detailed explanation of how the plastic mold manufacturing process works:

  • Design and Conceptualization:

   - The process begins with the design and conceptualization of the mold. Mold designers work closely with product designers or clients to understand the requirements of the plastic part to be manufactured.

   - Based on the part design, the mold designer creates a detailed 3D model of the mold using computer-aided design (CAD) software. The design includes the core and cavity components, cooling channels, gating system, ejection system, and other mold features.

  • Material Selection:

   - Once the mold design is finalized, the next step is to select the appropriate material for the mold construction. Common materials used for mold manufacturing include various grades of tool steel, stainless steel, aluminum, and beryllium copper.

   - The choice of mold material depends on factors such as expected production volume, plastic material used, part complexity, and budget considerations.

  • Machining or Fabrication:

   - With the mold design and material selected, the actual mold manufacturing process begins. The chosen material is machined or fabricated to create the mold components, including the core, cavity, and other mold features.

   - Precision machining processes such as milling, turning, grinding, and electrical discharge machining (EDM) are used to create the intricate details required for the mold.

  • Assembly and Finishing:

   - Once all the mold components are machined, they are assembled to form the complete mold. Skilled mold makers meticulously fit the components together to ensure precise alignment and functioning.

   - The mold may undergo additional finishing processes, such as polishing or texturing, to achieve the desired surface finish on the plastic parts it produces.

  • Testing and Validation:

   - After the mold is assembled, it undergoes rigorous testing and validation. Mold makers check for proper fit and functionality, as well as any potential defects or issues.

   - If necessary, the mold may be fine-tuned or adjusted to ensure it meets the required specifications before being used in production.

  • Production and Quality Control:

   - Once the mold is validated, it is ready for production. The mold is mounted on an injection molding machine, and the plastic material is injected into the mold cavity.

   - During production, strict quality control measures are implemented to ensure the consistency and quality of the produced plastic parts. Regular inspections and measurements are performed to monitor part quality

  • Maintenance and Repairs:

   - Proper maintenance is essential to prolong the life of the mold and ensure consistent part quality. Regular cleaning, lubrication, and inspection are performed to keep the mold in optimal condition.

   - In case of any damage or wear, molds may undergo repairs or refurbishment to restore their functionality and performance.

Overall, plastic mold manufacturing is a meticulous and precise process that requires skilled mold designers, machinists, and mold makers to create molds that produce high-quality plastic parts efficiently and reliably. Proper mold design, material selection, manufacturing processes, and maintenance are critical in achieving successful plastic molding operations.



In plastic mold manufacturing, a variety of materials are used to create molds, each selected based on specific requirements and considerations. The choice of mold material is crucial, as it directly affects the mold's performance, durability, and overall cost. Here's a more elaborate explanation of the commonly used materials in plastic mold manufacturing:

  • Tool Steel (e.g., P20, H13):



Mold Manufacturing Tool Steel


- Tool steels are among the most widely used materials for plastic mold manufacturing due to their excellent combination of hardness, toughness, and wear resistance.

   - P20 (also known as AISI P20 or DIN 1.2311) is a versatile pre-hardened tool steel suitable for low to medium production volumes. It offers good machinability and can be easily polished.

   - H13 (also known as AISI H13 or DIN 1.2344) is a hot-work tool steel preferred for high production volumes and demanding applications. It has excellent heat resistance, wear resistance, and is well-suited for hot runner systems.

  • Stainless Steel (e.g., 420, 316):



Mold Manufacturing Stainless Steel


- Stainless steel molds are used when corrosion resistance is crucial, or when molding plastics with corrosive additives.

   - 420 stainless steel is a higher carbon content stainless steel, providing good corrosion resistance and wear resistance. It is commonly used for molding applications with corrosive plastics or environments.

   - 316 stainless steel offers even higher corrosion resistance and is suitable for molds used in highly corrosive environments.

  • Aluminum:
Mold Manufacturing Aluminum




- Aluminum molds are favored for their lightweight nature and good thermal conductivity, which allows for faster cooling during the molding process.

   - They are commonly used for prototyping, low-volume production, and for applications where reducing the weight of the mold is beneficial.

  • Beryllium Copper:

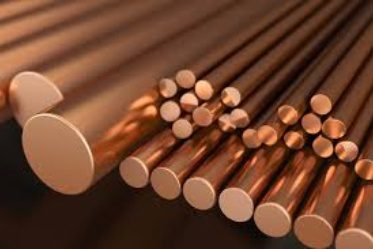

Mold Manufacturing Beryllium Copper




 - Beryllium copper molds are known for their exceptional thermal conductivity, providing fast and efficient heat dissipation during the molding process.

   - They are typically used in high-volume production and for molds where thermal management is critical.

  • Pre-hardened Steel (e.g., P20, Nak80):
Mold Manufacturing Pre hardened Steel




- Pre-hardened steels come already hardened and do not require additional heat treatment, saving time and cost in the mold manufacturing process.

   - P20 and Nak80 (also known as AISI P21 or DIN 1.2738) are popular pre-hardened steel choices used for low to medium production volumes.

  • Brass:
Mold Manufacturing Brass




- Brass molds are less common and typically used for specific applications requiring good thermal conductivity and corrosion resistance.

   - They are more expensive than other materials, limiting their use to specialized situations.

  • Alloy Steels:



Mold Manufacturing Alloy Steels

- Alloy steels are made by adding various alloying elements to the base steel, enhancing specific properties such as hardness, strength, and wear resistance.

   - P20+Ni (also known as AISI P20+Ni or DIN 1.2738 Mod) is a modified version of P20 steel with added nickel. It offers improved toughness and better resistance to thermal fatigue, making it suitable for higher impact applications.

   - H-13 Premium (also known as AISI H-13 Premium or DIN 1.2344 ESR) is a premium-grade H13 steel with extra cleanliness and improved homogeneity, providing superior performance and a longer tool life.

  • Copper Alloys:



Mold Manufacturing Copper Alloys


 - Copper alloys, such as C17200 (Beryllium Copper), are utilized for molds that require excellent thermal conductivity, high strength, and resistance to corrosion and galling.

   - Copper alloys are often employed in molds for high-cavitation applications or for molding materials with high processing temperatures.

  • Composite Materials:
Mold Manufacturing Composite Materials




- Composite materials are engineered materials composed of two or more distinct materials, combined to obtain desirable characteristics not present in individual components.

   - Metal Matrix Composites (MMCs): These composites combine metal matrices (e.g., aluminum) with reinforcement materials (e.g., silicon carbide, graphite fibers). MMC molds offer enhanced thermal conductivity and wear resistance, making them suitable for demanding molding applications.

   - Polymer Matrix Composites (PMCs): PMCs combine polymers (e.g., epoxy, phenolic) with reinforcement materials (e.g., glass fibers, carbon fibers). While less common in mold manufacturing, PMCs are used for specific applications where high strength-to-weight ratios and low thermal expansion are required.

The selection of the mold material depends on factors such as the specific molding process, production volume, plastic material properties, part complexity, expected tool life, and budget constraints. Mold designers carefully evaluate these factors to choose the most appropriate material for each plastic mold, ensuring the mold's longevity, efficiency, and performance during plastic molding operations.

Manufacturing plastic molds is a critical process that requires careful consideration of various factors to ensure the production of high-quality molds that meet the requirements of plastic molding operations. Here are the key considerations in manufacturing plastic molds:

  1. Mold Design:The mold design is the foundation of the entire manufacturing process. It is crucial to have a well-designed mold that accurately reflects the specifications of the plastic part to be produced. Mold designers must consider factors such as part geometry, draft angles, wall thickness, gating and venting, cooling channels, and ejection system to ensure efficient and consistent molding.
  2. Material Selection:Choosing the appropriate mold material is essential for mold performance and longevity. Factors like the type of plastic to be molded, expected production volume, part complexity, and budget influence the choice of material. Common mold materials include tool steel, stainless steel, aluminum, beryllium copper, and various alloy and composite materials.
  3. Machining and Fabrication:Precision machining and fabrication processes are critical in creating mold components with intricate details and tight tolerances. Skilled machinists use CNC machining, milling, turning, grinding, and EDM techniques to create mold components accurately.
  4. Assembly and Fitting:Proper assembly and fitting of mold components are essential for the mold's functionality and performance. Precise alignment ensures that the core and cavity halves fit together perfectly, resulting in consistent and accurate part production.
  5. Surface Finish and Texture:The surface finish and texture of the mold cavities impact the appearance and quality of the plastic parts. Proper finishing techniques, such as polishing or texturing, are employed to achieve the desired surface characteristics.
  6. Heat Treatment (if applicable):Some mold materials require heat treatment to achieve the desired hardness and properties. Proper heat treatment ensures the mold's durability and resistance to wear during the molding process.
  7. Cooling System Design:An efficient cooling system is crucial for controlling the cooling rate of the plastic material during molding. Well-designed cooling channels help reduce cycle times and improve part quality by preventing warping and improving mold release.
  8. Venting and Gating:Adequate venting is essential to allow air to escape from the mold during the injection process, preventing air traps and improving part quality. Gating design determines how the molten plastic enters the mold cavity and influences the part's filling pattern and quality.
  9. Testing and Validation:Before the mold is put into production, it must undergo thorough testing and validation. Mold designers and makers check for proper fit, functionality, and any potential defects. Fine-tuning and adjustments are made if necessary.
  10. Maintenance and Repair:Proper maintenance and regular inspections are essential to extend the life of the mold and ensure consistent part quality. Mold makers may need to perform repairs or refurbishments to address wear or damage.

By carefully considering these key factors, manufacturers can produce plastic molds that deliver optimal performance, efficiency, and durability during plastic molding operations, ultimately leading to high-quality plastic parts and products.

Mold Manufacturing Quality


Ensuring the quality of a plastic mold is essential to produce high-quality plastic parts consistently and maintain efficient and reliable plastic molding operations. Here are several key steps you can take to ensure the quality of a plastic mold:

  1. Choose High-Quality Mold Materials:Start by selecting high-quality mold materials that are suitable for the specific plastic molding process and production requirements. Consider factors such as hardness, wear resistance, thermal conductivity, and corrosion resistance when choosing the mold material.
  2. Work with Skilled Mold Designers: Collaborate with experienced and skilled mold designers who can create a well-designed mold that accurately reflects the specifications of the plastic part to be produced. A well-designed mold will lead to better part quality, reduced cycle times, and improved overall efficiency.
  3. Use Precision Machining and Fabrication: Employ precision machining and fabrication processes to create mold components with tight tolerances and accurate geometries. CNC machining, EDM, and other advanced techniques are crucial for achieving high precision.
  4. Implement Robust Quality Control Measures:Establish rigorous quality control measures throughout the mold manufacturing process. Regular inspections and measurements during machining, assembly, and finishing stages help detect any deviations or defects early on.
  5. Conduct Mold Testing and Validation:Before the mold is put into production, conduct thorough testing and validation. Check for proper fit, functionality, and any potential defects. Fine-tune or adjust the mold design if necessary to ensure it meets required specifications.
  6. Monitor Cooling System Efficiency: A well-designed cooling system is crucial for controlling the cooling rate of the plastic material during molding. Monitor the cooling system's efficiency to prevent warping, improve mold release, and enhance part quality.
  7. Optimize Venting and Gating:Proper venting and gating are essential to allow air to escape from the mold during the injection process and to ensure proper filling of the mold cavity. Optimize venting and gating design to prevent air traps and improve part quality.
  8. Perform Regular Maintenance:Implement a scheduled maintenance program to keep the mold in optimal condition. Regular cleaning, lubrication, and inspection help extend the mold's lifespan and ensure consistent part quality.
  9. Train and Educate Operators: Provide proper training and education to the mold operators to handle the mold correctly. Educate them about proper usage, handling, and maintenance practices to avoid any accidental damage or wear.
  10. Address Issues Promptly:If any issues arise during the molding process, address them promptly. Investigate the root cause of defects or production inconsistencies and take corrective actions to rectify the problems.

By following these steps and prioritizing quality at every stage of the plastic mold manufacturing process, you can ensure that the mold meets high standards and delivers reliable performance, resulting in high-quality plastic parts and products.

The time it takes to manufacture a plastic mold can vary significantly depending on several factors. The complexity of the mold design, the size and intricacy of the mold components, the choice of mold material, the manufacturing techniques used, the availability of resources, and the expertise of the mold makers all contribute to the overall manufacturing timeline. Generally, the process can take anywhere from a few weeks to several months. Here's a breakdown of the key factors that can influence the manufacturing time:

  1. Mold Design Complexity:The complexity of the mold design can significantly impact the manufacturing time. More intricate and detailed designs may require additional time for modeling, validation, and optimization.
  2. Mold Material Selection: Different mold materials have varying machinability and fabrication characteristics. For example, steel molds generally take longer to manufacture than aluminum molds due to the hardness and precision required for steel machining.
  3. Machining and Fabrication Techniques:The chosen machining and fabrication techniques can influence the manufacturing time. Processes like CNC machining and electrical discharge machining (EDM) are precise but may take longer than other conventional methods.
  4. Assembly and Fitting:Assembling and fitting the various mold components together requires careful alignment and precision. Complex molds may require more time for accurate assembly.
  5. Mold Complexity and Size: Larger and more complex molds with multiple cavities or intricate features will generally take longer to manufacture compared to smaller and simpler molds.
  6. Workload and Resources:The availability of resources, including skilled labor, machining equipment, and production capacity, can impact the manufacturing timeline.
  7. Quality Assurance and Testing:Thorough testing and validation of the mold are essential to ensure its quality and functionality. This process can add to the overall manufacturing time.
  8. Lead Times and Communication: Lead times for ordering materials and components can influence the manufacturing schedule. Effective communication between the mold designers, machinists, and mold makers is essential to keep the process on track.

On average, the time required to manufacture a plastic mold can range from 4 to 12 weeks. However, for more complex molds or in situations with high demand and limited resources, the manufacturing time may extend beyond this range. It's essential to work with experienced mold designers and manufacturers who can provide accurate timelines and keep the process efficient and well-coordinated.

Maintaining plastic molds is crucial to ensure their longevity, optimal performance, and the production of high-quality plastic parts consistently. Here are some best practices for maintaining plastic molds:

  • Regular Cleaning:

Regularly clean the mold surfaces to remove any residue, debris, or plastic build-up from previous molding cycles. Use appropriate cleaning solutions and tools that do not damage the mold surface.

  • Lubrication:

Apply appropriate mold release agents or lubricants to the mold surfaces before each molding cycle. This helps prevent sticking or sticking of the plastic material to the mold, making ejection smoother and reducing wear.

  • Inspecting and Replacing Worn Components:

Regularly inspect the mold components for signs of wear, such as scratches, dents, or damage. Replace any worn or damaged components promptly to maintain the mold's integrity and avoid defects in the molded parts.

  • Proper Storage:

Store the molds in a clean and controlled environment, protected from dust, moisture, and other contaminants. Use proper mold storage racks or containers to prevent damage during storage.

  • Preventive Maintenance:

Implement a preventive maintenance program to schedule regular maintenance tasks. This may include inspection, cleaning, lubrication, and minor repairs to address any issues before they escalate.

  • Temperature and Cooling Control:

Monitor and control the mold's temperature and cooling system during molding operations. Proper temperature control helps prevent warping and ensures consistent part quality.

  • Calibration:

Periodically calibrate the molding machine and the mold to ensure accurate and consistent molding parameters. This helps achieve precise dimensions and tolerances in the molded parts.

  • Training and Education:

Provide proper training to the mold operators and production staff on mold handling, maintenance, and troubleshooting. Educate them about proper practices to avoid accidental damage.

  • Documentation:

Keep detailed records of mold maintenance and repair activities. Maintain a maintenance log to track maintenance schedules, repairs, and performance changes over time.

  • Addressing Issues Promptly:

If any issues or defects arise during molding operations, investigate and address them promptly. Determine the root cause of the problem and take corrective actions to prevent recurrence.

  • Collaboration with Suppliers:

Work closely with mold material suppliers and service providers to ensure the best materials and maintenance practices are employed for the specific mold.

  • Regular Inspection and Testing:

Perform regular mold inspections and tests to ensure that the mold remains in optimal condition and is ready for production.

By following these best practices, you can extend the life of your plastic molds, minimize downtime, and ensure consistent production of high-quality plastic parts. Proper mold maintenance is a cost-effective way to improve efficiency and reduce the likelihood of defects in the molding process.

Organizing the manufacturing of a plastic mold for mass production requires careful planning, coordination, and collaboration with various stakeholders. Here are the steps to help you organize the manufacturing process effectively:

  • Define Project Scope and Requirements:

Clearly define the scope of the project and the requirements for the plastic mold. Determine the expected production volume, part complexity, material specifications, and any specific features needed in the mold design.

  • Select a Reliable Mold Manufacturer:

Choose an experienced and reputable mold manufacturer that has a proven track record in producing high-quality molds for mass production. Look for manufacturers with expertise in the specific molding process you intend to use.

  • Collaborate with Mold Designers:

Work closely with mold designers to develop a detailed and optimized mold design that meets your requirements. The mold design should be efficient, durable, and capable of delivering consistent part quality during mass production.

  • Mold Material Selection:

Select the appropriate mold material based on factors like production volume, material properties of the plastic being molded, and budget constraints. Opt for materials that can withstand high-volume production and ensure long-lasting performance.

  • Plan for Tooling Costs and Lead Times:

Consider the costs associated with mold manufacturing, including design, material, machining, and assembly. Plan for tooling lead times, as it can take several weeks or months to complete the mold manufacturing process.

  • Prototype and Testing (if applicable):

If possible, consider creating a prototype or pilot mold for testing before proceeding with mass production. This helps identify any potential issues or improvements in the design.

  • Coordinate with Production Team:

Ensure open communication and coordination between the mold manufacturer and your production team. Discuss production timelines, quantities, and other production-related details.

  • Prepare Production Facility:

Make sure your production facility is adequately prepared for mass production. Ensure that the injection molding machines, auxiliary equipment, and production lines are in good working condition.

  • Quality Control and Inspection:

Implement a robust quality control process to monitor the mold's performance during mass production. Regularly inspect the molded parts for defects and measure their dimensions to ensure consistency.

  • Maintain and Optimize the Mold:

Establish a preventive maintenance program to regularly clean, lubricate, and inspect the mold during mass production. Address any issues or wear promptly to prevent production interruptions.

  • Monitor Production Output:

Continuously monitor production output to ensure that the mold is meeting production targets and producing high-quality parts efficiently.

  • Address Challenges and Continuous Improvement:

Be prepared to address any challenges that arise during mass production. Continuously seek opportunities for process improvement and optimization to enhance efficiency and quality.

By following these steps and collaborating effectively with the mold manufacturer and your production team, you can organize the manufacturing of a plastic mold for mass production successfully. Effective planning, communication, and quality control are essential to ensure a smooth and efficient production process.

Plastic mold manufacturing is continuously evolving with the advancements in technology, leading to improved efficiency, precision, and cost-effectiveness in the mold-making process. Several key technologies are driving the evolution of plastic mold manufacturing:

  • Computer-Aided Design (CAD):
Mold Manufacturing Computer Aided Design


CAD software allows mold designers to create intricate and detailed 3D models of molds with ease. Advanced CAD tools offer simulation capabilities that enable designers to optimize mold designs for better performance and reduced cycle times.

  • Computer-Aided Manufacturing (CAM):
Mold Manufacturing CAM


CAM software is used to generate toolpaths and instructions for CNC machines, streamlining the machining process. CAM systems optimize tool movement, tool selection, and cutting strategies, resulting in faster and more accurate machining.

  • Additive Manufacturing (3D Printing):

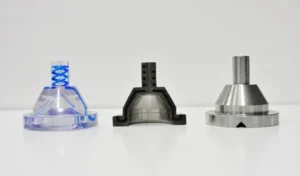

Mold Manufacturing 3D Printing


 3D printing, or additive manufacturing, is making significant strides in mold manufacturing. While not suitable for mass production molds, 3D printing is increasingly used for creating rapid prototypes, mold inserts, and low-volume production molds. This technology allows for rapid iteration and design validation.

  • High-Speed Machining (HSM):
Mold Manufacturing HSM


High-speed machining techniques allow molds to be machined at faster rates without compromising accuracy. This technology reduces machining times and increases productivity while maintaining precision.

  • Electrical Discharge Machining (EDM) Improvements:
Mold Manufacturing EDM


EDM technology has advanced with the integration of automation and improved electrode materials. It enables the creation of intricate shapes and fine details, enhancing the complexity of mold designs.

  • Simulation and Virtual Prototyping:
Mold Manufacturing Virtual Prototyping


Simulation tools help predict the behavior of molds and the injection molding process virtually. Mold flow analysis software allows designers to optimize the cooling system, gating design, and material flow, leading to better part quality and reduced cycle times.

  • Advanced Mold Materials:

Mold Manufacturing Materials

The development of new mold materials, such as high-performance steels and metal matrix composites, offers improved durability, thermal conductivity, and wear resistance, leading to longer mold lifespans and reduced maintenance requirements.

  • Smart Manufacturing and IoT Integration:
Mold Manufacturing Smart Manufacturing


The integration of IoT sensors into molds and molding machines enables real-time monitoring of mold performance and production parameters. This data-driven approach allows for predictive maintenance, process optimization, and better control over part quality.

  • Automated and Lights-Out Manufacturing:

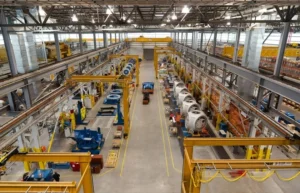

Automated and Lights Out Manufacturing


Advancements in robotics and automation are allowing mold manufacturers to implement lights-out manufacturing, where machines can operate with minimal human intervention, leading to increased efficiency and reduced production costs.

  • Cloud-Based Collaboration:
Cloud Based Collaboration


Cloud-based platforms facilitate seamless collaboration between mold designers, manufacturers, and clients. It enables real-time sharing of data, designs, and project updates, improving communication and project management.

These technological advancements are collectively driving the plastic mold manufacturing industry towards greater efficiency, precision, and innovation. As technology continues to evolve, the mold-making process is likely to become even more streamlined and adaptable, opening up new possibilities for the production of high-quality plastic parts.
