TDL offering a multitude of surface treatment technologies for various products. For CNC Machining Metals, we offer a range of finishes including Brushed, Bead blasted, Powder coated, Black oxide, Electroless Nickel Plating, and Bead Blasted + Anodized type II. When it comes to Injection Molding Plastics, we cater to different aesthetic and functional requirements with finishes such as Glossy, Semi-glossy, Matte, and Textured.

Play Video

As for Sheet Metal Fabrication, our offerings extend to Anodizing, Bead Blasting, and Powder Coating techniques. Our commitment lies in delivering top-notch surface treatment solutions tailored to your needs, ensuring both durability and aesthetic appeal.

Available Surface Finishes for You Choosing

Part surfacing finishing techniques can either be for functional or aesthetic purposes. Each technique has requirements, such as materials, color, texture, and price. Below are the specifications of the plastic finishing techniques rendered by us.

surface finish chart
Bead Blasted + Anodized type II (Glossy)
Parts are bead blasted, anodized type II and bright dipped. Results in glossy color. Ideal for cosmetic parts needing an increase in corrosion resistance.
surface finish symbols
Electroless Nickel Plating
A wear and corrosion resistant surface is achieved by depositing a nickel-phosphorus alloy on a material without using electricity. The resulting surface is hard, slick, and highly conductive.
surface finish callout
Black oxide
Conversion coating applies a matte black magnetite layer on a material by immersing it in a hot chemical solution, followed by rinsing and oiling to secure the surface.
ra surface finish
Powder coated
Powder coating is a strong, wear-resistant finish that is compatible with all metal materials.
surface finish symbol
Bead blasted
Parts are bead blasted with glass beads which results in a grainy texture and reduced machining marks.
surface finishes chart
Brushed (Ra 1.2μm / Ra 47μin)
It creates a linear pattern with a consistent and uniform texture on your part’s surface. Suitable for architectural components and automotive parts.
Textured
D1, D2, and D3 grade treatments use dry blast glass beads, and oxides for the surface finish to produce a very coarse and textured surface.
Matte
The C1, C2, and C3 SPI grade surface treatments use grit sanding stones to achieve rough texture and uneven surface.
Semi-glossy
The SPI standard B1, B2, and B3 grade surface treatment uses grit sandpaper paper to yield a semi-glossy surface finish.
Glossy
The SPI grade A1, A2, and A3 surface finishes are made with diamond buffing for a glossy and shiny surface finish.
Electroplating
Electroplating can be functional, decorative or corrosion-related. Many industries use the process, including the automotive sector, in which chrome-plating of steel automobile parts is common.
ra surface finish
Powder Coating
To create a robust and uniform coating, dry powder is applied to the material and baked at high temperatures. This process endows the parts with superb resistance to corrosion, chipping, and fading. Depending on the type of powder, the texture of the coating can be either glossy or matte.
surface finish symbol
Bead Blasting
Bombarding a material’s surface with tiny glass beads or ceramic particles results in a uniform, matte finish that can eliminate surface imperfections and machine marks while simultaneously improving the part’s resistance to wear and corrosion.
3d prinitng
Anodizing
Anodizing improves corrosion resistance, enhancing wear resistance and hardness, and protecting the metal surface. Widely used in mechanical parts, aircraft, and automobile parts, precision instruments, etc.

Advantages

What are our advantages

Experience, Expertise, and Excellence: The Advantages of Choosing TDL Engineering Solutions.

20 + Years Experience

TDL mould has been manufacturing plastic tools for automotive, medical device, and electronics for over 20 years.

Advanced Equipment

TDL factory is equipped with advanced mold manufacturing equipment and precision measuring instruments CMM.

On-Time Delivery

TDL schedule every mold projects manufacturing process very well, can guarantee on-time delivery for each production.

Professional Team

TDL mold design & engineering team has 34 skilled engineers to provide technical support for plastic mold making and plastic processing.

One-Stop Solution

TDL offers a one stop solution to meet customers all demands about plastic mould and customized plastic products manufacturing.

Good After-sales Service

TDL is responsible for quality of each mold, will sign mold quality warranty with customers for every tools.

How do we control the quality of surface finishing?

FAQ's

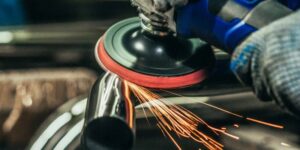

Metal surface finishing

Surface finishing is a diverse set of processes and techniques used to alter and improve the surface properties of materials. It is a crucial step in various industries, ranging from manufacturing and construction to automotive, electronics, and aerospace. The primary goal of surface finishing is to achieve specific objectives, such as enhancing aesthetics, providing corrosion protection, improving wear resistance, and optimizing electrical or thermal properties.

One of the key reasons for employing surface finishing is to enhance the appearance of products. Through painting and coating, manufacturers can add color, gloss, and other visual enhancements, making the final product more attractive and appealing to consumers. This is particularly essential in consumer goods, automotive, and architectural applications, where the aesthetics of products play a significant role in consumer choices.

Another critical aspect of surface finishing is corrosion protection. Many materials, especially metals and alloys, are susceptible to corrosion and degradation when exposed to harsh environmental conditions. By applying surface finishes like plating, anodizing, or passivation, manufacturers can create a protective layer that shields the material from corrosive elements, extending the product's lifespan and reducing maintenance costs. This is vital in industries such as aerospace, marine, and infrastructure, where products are exposed to moisture, chemicals, and outdoor weathering.

Wear resistance is another crucial consideration in surface finishing. Components that experience frequent contact, friction, or movement can suffer from wear and deterioration over time. By implementing surface finishing techniques that increase wear resistance, manufacturers can enhance the durability and reliability of their products. This is particularly relevant in machinery, automotive, and tooling industries, where wear and tear can significantly impact performance

Surface finishing also plays a role in smoothing and cleaning surfaces. Irregularities, roughness, and contaminants on a material's surface can hinder functionality and handling. Polishing and sandblasting are commonly used to eliminate imperfections, resulting in a smoother and cleaner surface. This is vital in applications where precision and cleanliness are essential, such as optics, electronics, and medical equipment.

Additionally, surface finishing can be tailored to modify the electrical and thermal properties of materials. This is of particular significance in the electronics industry, where surface finishes can optimize electrical conductivity, resistivity, and heat dissipation, leading to improved performance and reliability of electronic components and devices.

Each surface finishing technique offers unique advantages and applications. The choice of technique depends on the material, the desired outcome, and the specific requirements of the industry or application. Manufacturers must carefully select the appropriate surface finishing process to achieve the desired functional and aesthetic improvements. Overall, surface finishing is a critical aspect of modern manufacturing, as it significantly impacts the quality, functionality, and longevity of a wide range of products across various industries.

Surface Finishing



Surface finishing is important for several reasons that significantly impact the performance, functionality, and aesthetics of products and materials. Some of the key reasons why surface finishing is crucial are as follows:

  1. Aesthetics and Market Appeal: Surface finishing significantly influences the visual appeal of products, making them more attractive to consumers. Consumers are often drawn to products with superior aesthetics, and surface finishing techniques like painting, powder coating, and decorative plating can transform a plain material into an eye-catching, desirable product. The ability to customize the surface finish further allows manufacturers to cater to diverse consumer preferences and market segments.
  2. Corrosion Protection and Durability: One of the primary reasons for surface finishing is to protect materials from corrosion. Rust and degradation can weaken materials, compromising their structural integrity and functionality. Surface finishing methods like galvanizing, anodizing, and chromate conversion coating create a barrier against corrosive elements, such as moisture and chemicals, extending the product's lifespan and reducing maintenance costs. This is particularly vital in industries like marine, construction, and infrastructure, where products are exposed to harsh outdoor environments.
  3. Wear and Abrasion Resistance: Surfaces that experience constant wear and abrasion can lead to premature failure of products. Surface finishing processes like hard chrome plating, thermal spraying, and ceramic coatings enhance wear resistance, enabling components to withstand friction and reduce material loss. Industries that heavily rely on wear-resistant components, such as automotive, manufacturing, and mining, benefit significantly from these surface finishing techniques.
  4. Improved Functionality and Performance: Surface finishing can alter material properties to improve specific functionalities. For example, in the electronics industry, surface finishes like solder plating or gold plating enhance the conductivity of components, improving their performance. Additionally, surface finishes can modify the coefficient of friction, electrical resistivity, thermal conductivity, and even magnetic properties, making them tailored to meet specific application requirements.
  5. Cleanliness and Hygiene: Surface finishing processes like polishing and electropolishing not only improve the appearance but also ensure the removal of surface contaminants, such as dirt, grease, or oxides. This is particularly crucial in applications where hygiene and cleanliness are paramount, such as food processing equipment, medical devices, and pharmaceutical manufacturing.
  6. Adhesion and Bonding: Proper surface finishing enhances the bonding characteristics of materials, improving the adhesion of paints, adhesives, and coatings. This is essential to ensure the long-term integrity and performance of assembled products. In industries like automotive and aerospace, strong bonding ensures the structural stability and safety of components.
  7. Environmental Considerations: Sustainable surface finishing methods, such as powder coating and anodizing, have gained popularity due to their lower environmental impact compared to traditional painting or plating processes. Manufacturers are increasingly adopting these eco-friendly techniques to reduce waste, emissions, and the use of hazardous chemicals, aligning with environmental regulations and consumer demands for eco-conscious products.
  8. Brand Reputation and Customer Satisfaction: High-quality surface finishing is a visible indicator of product excellence and craftsmanship. When customers perceive products as well-finished, durable, and aesthetically pleasing, it enhances brand reputation and fosters customer satisfaction. Positive experiences lead to brand loyalty, repeat purchases, and positive word-of-mouth, benefitting the company's market position.
  9. Compliance with Industry Standards: In regulated industries, surface finishing may be essential to comply with specific safety, hygiene, or quality standards. For instance, the medical field requires biocompatible finishes for surgical instruments and implants, while the aerospace industry adheres to stringent requirements to ensure structural integrity and safety of aircraft components.
  10. Value Addition and Market Competitiveness: Surface finishing adds value to products and increases their market competitiveness. Manufacturers can differentiate their products by investing in premium surface finishes, attracting discerning consumers willing to pay a premium for higher-quality products.

In conclusion, surface finishing is of paramount importance across industries due to its far-reaching impact on aesthetics, functionality, durability, and compliance with industry standards. By selecting appropriate surface finishing techniques, manufacturers can create products that meet customer expectations, withstand environmental challenges, and excel in competitive markets. The continuous development of advanced surface finishing technologies will further revolutionize product design and manufacturing in the future.

There are various types of surface finishing techniques, each tailored to specific materials, desired outcomes, and industry requirements. Some common surface finishing techniques include:

  • Painting and Coating:

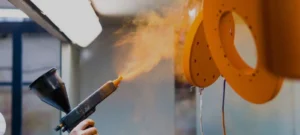

Surface Finishing  - Surface Coating



 Painting and coating are widely used surface finishing techniques that involve applying liquid paint, powder coating, or other protective coatings to the surface of a material. Liquid paint is applied through various methods such as spraying, brushing, or dipping, while powder coating is electrostatically applied as dry powder before being cured with heat. Coatings provide numerous benefits, including corrosion resistance, UV protection, abrasion resistance, and improved aesthetics. They are extensively used in automotive, architectural, and consumer goods industries.

  • Plating:

Surface Finishing  - electroplating finish



 Plating is a process in which a thin layer of metal is deposited onto the surface of a substrate using electroplating or electroless plating techniques. The metal layer can be decorative (e.g., chrome plating) or functional (e.g., nickel plating for corrosion resistance). Plating improves surface properties such as hardness, wear resistance, and electrical conductivity. It finds applications in jewelry, automotive components, electronic connectors, and decorative items.

  • Anodizing:

Surface Finishing - anodizing



 Anodizing is primarily applied to aluminum and its alloys. It involves immersing the material in an electrolytic solution and passing a current through it, resulting in the formation of a durable and protective oxide layer on the surface. Anodizing enhances corrosion resistance and allows for various color options, making it popular in aerospace, architectural, and consumer electronics industries.

  • Polishing:

Surface Finishing - polishing



 Polishing is a mechanical surface finishing technique that uses abrasives and buffing wheels to create a smooth, reflective, or satin-like finish. It is commonly used on metals, glass, and plastics to improve aesthetics, remove scratches, and create a high-gloss shine. Polishing is prevalent in jewelry, optical lenses, and automotive components.

  • Sandblasting:

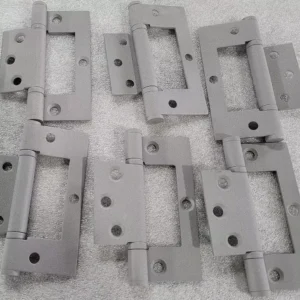

Surface Finishing - Sandblasting



Sandblasting, also known as abrasive blasting, is a process in which abrasive particles are propelled at high speed against a surface to clean it, remove paint or coatings, and create a textured or frosted finish. Sandblasting is often used in metal cleaning, artistic glass etching, and stone carving applications.

  • Passivation:

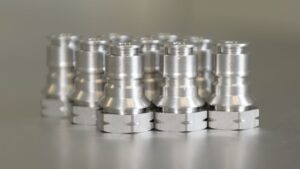

Surface Finishing - Passivation



Passivation is a chemical process used primarily on stainless steel and other corrosion-resistant alloys. It involves treating the surface with a chemical solution to remove free iron and other contaminants, resulting in enhanced corrosion resistance. Passivation is critical in industries like medical equipment manufacturing and food processing.

  • Etching:

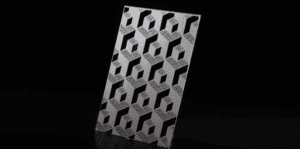

Surface Finishing - Etching



Etching is a surface finishing technique that selectively removes material from the surface using chemical solutions. It is commonly used to create patterns, designs, or textures on materials like metals, glass, and ceramics. Etching finds applications in art, decorative items, and semiconductor manufacturing.

  • Laminating:

Surface Finishing - Laminating



 Laminating involves applying a thin layer of material, such as plastic or adhesive film, onto the surface of a substrate. This process is used to provide protection, enhance durability, or improve appearance. Laminating is commonly used in furniture, flooring, and packaging materials.

  • Galvanizing:

Surface Finishing - Galvanizing



Galvanizing is a surface finishing process that involves coating steel or iron surfaces with a layer of zinc through hot-dip or electro-galvanizing methods. The zinc layer provides excellent corrosion resistance, making galvanized products suitable for outdoor applications, such as fences, pipelines, and automotive parts.

  • Powder Coating:



Surface Finishing - Powder Coating



Powder coating is a dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto the surface. The coated item is then cured in an oven, causing the powder to melt and form a durable finish. Powder coating offers excellent protection against corrosion, impact resistance, and a wide range of colors, making it popular in the automotive, appliances, and architectural industries.

  • Buffing:

Surface Finishing - Buffing



Buffing is a polishing process that uses a soft cloth wheel or an abrasive compound to create a smooth and shiny finish on metal surfaces. It is often used in jewelry, cutlery, and decorative items to achieve a mirror-like shine.

  • Electropolishing:

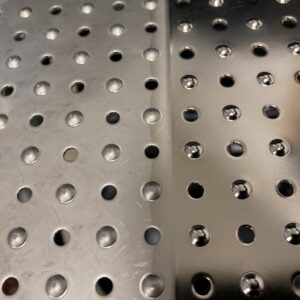

Surface Finishing - Electropolishing



Electropolishing is an electrochemical surface finishing process that removes a thin layer of material from the surface of metals, resulting in a smooth and bright finish. It is commonly used in industries like pharmaceuticals, food processing, and medical devices to achieve a clean and hygienic surface.

  • Vapor Deposition:

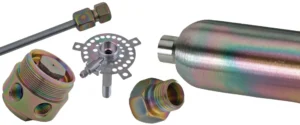

Surface Finishing - Vapor Deposition



 Vapor deposition techniques, such as physical vapor deposition (PVD) and chemical vapor deposition (CVD), involve depositing thin films of materials onto the surface. These techniques are used in electronic and optical applications to create coatings with specific properties, such as anti-reflective coatings, wear-resistant layers, and conductive films.

  • Flame Treatment:

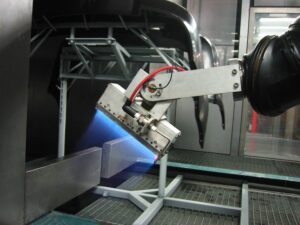

Surface Finishing - Flame Treatment



 Flame treatment is a surface finishing method that exposes materials to controlled flames, altering their surface properties to enhance adhesion capabilities. It is commonly used in the plastics industry to improve the adhesion of inks, paints, and adhesives.

Each surface finishing technique offers distinct advantages and is chosen based on factors such as the material type, the desired finish, functional requirements, and the specific application or industry. By employing the appropriate surface finishing technique, manufacturers can enhance the properties and performance of their products, resulting in improved customer satisfaction and market competitiveness.

Surface finishing plays a crucial role in improving the durability of a part by enhancing its resistance to various environmental and mechanical factors. Here's how surface finishing contributes to increased durability:

  1. Corrosion Resistance: Surface finishing techniques like plating, anodizing, and passivation create protective layers on the part's surface. These layers act as barriers against corrosive agents such as moisture, chemicals, and atmospheric pollutants. By preventing direct contact between the material and corrosive elements, surface finishing significantly reduces the risk of corrosion, rusting, and material degradation over time, thus increasing the part's lifespan.
  2. Wear and Abrasion Resistance: Surface finishing methods like polishing, hard coating, and nitriding improve the part's wear resistance. By creating a smoother and harder surface, surface finishing minimizes the effects of friction and abrasive forces, reducing the wear and tear that parts experience during regular use. This is particularly important in components subjected to repetitive motion, sliding, or contact with other surfaces.
  3. Fatigue Resistance: Surface finishing can also enhance a part's resistance to fatigue failure. Fatigue failure occurs due to the accumulation of small cracks and damage caused by cyclic loading. Certain finishing processes, such as shot peening and stress relieving, can introduce beneficial compressive stresses on the surface, mitigating the risk of crack initiation and propagation, thus improving the part's fatigue life.
  4. Impact and Scratch Resistance: Some surface finishing techniques, such as powder coating and ceramic coatings, provide a protective and resilient surface layer that helps the part withstand impacts and resist scratches. This is especially beneficial for parts exposed to rough handling, abrasive environments, or contact with hard surfaces.
  5. Improved Lubricity: Certain surface finishing methods, like electroless nickel plating and Teflon coating, can enhance the part's lubricity and reduce friction between moving components. Reduced friction leads to lower wear rates and heat generation, ultimately increasing the durability and reliability of the part.
  6. Stress and Corrosion Cracking Prevention: Surface finishing processes, such as stress relieving, can help reduce residual stresses in the part's surface, preventing stress corrosion cracking. Stress corrosion cracking occurs when a corrosive environment interacts with tensile stresses in the material, causing cracks and failure. By eliminating or minimizing these stresses, surface finishing improves the part's resistance to this type of failure.
  7. Environmental Protection: Surface finishing can protect parts from exposure to extreme environmental conditions, such as temperature fluctuations, humidity, and UV radiation. For example, specific coatings or anodizing treatments can provide thermal insulation or UV resistance, safeguarding the part's integrity under harsh conditions.

In summary, surface finishing improves the durability of a part by providing protection against corrosion, wear, fatigue, impact, and environmental factors. By enhancing the part's surface properties and introducing beneficial stress conditions, surface finishing contributes to extending the part's lifespan, reducing maintenance needs, and improving overall performance and reliability.

When choosing a surface finishing technique, several factors should be carefully considered to ensure the optimal performance and appearance of the finished product. Here are some essential factors to take into account:

  1. Material Type: Different materials have unique properties, such as hardness, conductivity, and chemical reactivity. The chosen surface finishing technique must be compatible with the material to achieve the desired results. For instance, electroplating is suitable for metals, while powder coating works well on plastics.
  2. Desired Outcome: Clearly defining the goals of surface finishing helps in selecting the most appropriate technique. If the goal is to improve aesthetics, techniques like painting or polishing are ideal. For corrosion protection, plating or anodizing may be more suitable. If wear resistance is critical, methods like hard coating or nitriding could be considered.
  3. Application and Industry: The intended application of the finished product and the industry it serves influence the choice of surface finishing. For instance, in the aerospace industry, where weight reduction is crucial, techniques that offer lightweight and corrosion-resistant finishes, like anodizing or plasma spraying, might be preferred.
  4. Environmental Impact: With increasing environmental awareness, considering the environmental impact of surface finishing techniques is essential. Opting for eco-friendly methods, such as water-based coatings or processes with minimal waste generation, aligns with sustainability goals.
  5. Cost and Budget: Surface finishing costs can vary significantly depending on the chosen technique. Considering the budget constraints and cost-effectiveness of each option is vital. Sometimes, an initial higher investment in surface finishing may lead to long-term cost savings through increased product durability and reduced maintenance.
  6. Production Volume: The production volume affects the feasibility of certain surface finishing techniques. High-volume production may require faster and automated processes, while low-volume or custom products may allow for more time-consuming or specialized methods.
  7. Complexity of the Part: Complex part geometries may pose challenges in applying certain surface finishing techniques uniformly. Techniques like powder coating or electroplating may require intricate masking to protect specific areas, while other methods, such as anodizing, can provide uniform coverage on complex shapes.
  8. Surface Preparation: Adequate surface preparation is critical for successful surface finishing. Certain techniques may require pre-treatments like cleaning, degreasing, or roughening to ensure good adhesion and achieve the desired finish.
  9. Durability and Performance Requirements: Consider the durability and performance expectations of the finished product. Surface finishing should be selected to withstand specific environmental conditions, mechanical stress, or chemical exposures that the product may encounter during its service life.
  10. Regulatory Compliance: Some industries, such as medical devices, automotive, and aerospace, are subject to strict regulatory standards. Surface finishing processes must comply with relevant regulations, such as RoHS (Restriction of Hazardous Substances) or REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals).
  11. Aesthetic Preferences: The appearance and aesthetics of the finished product can influence customer perception and brand identity. The choice of surface finishing should align with the intended visual appeal, including color, texture, and surface gloss.

By carefully evaluating these factors, manufacturers can make well-informed decisions regarding surface finishing techniques. A thoughtful selection ensures that the chosen technique meets the product's functional requirements, regulatory standards, and aesthetic preferences while considering the cost and sustainability aspects. Ultimately, a suitable surface finishing process enhances product quality, durability, and performance, leading to greater customer satisfaction and market competitiveness.

Surface finishing is a critical aspect of product design and manufacturing, as it directly affects the visual appeal and perceived quality of a part. Each surface finishing technique offers unique characteristics and aesthetic effects, providing manufacturers with a wide range of options to achieve specific design goals. Let's explore in detail how surface finishing techniques influence the appearance of a part:

  1. Texture: Surface finishing techniques can significantly alter the texture of a part's surface, impacting how it feels and looks. For instance, polishing creates a smooth and reflective surface, adding a touch of elegance and sophistication. On the other hand, sandblasting or bead blasting creates a textured or frosted appearance, which can lend a contemporary or industrial feel to the part. Etching techniques can produce intricate patterns or designs, giving parts a distinctive and personalized touch.
  2. Color: Surface finishing plays a pivotal role in introducing color to a part. Techniques like painting and powder coating offer a vast array of color options, allowing manufacturers to match specific design themes, corporate branding, or consumer preferences. Anodizing, particularly on aluminum, provides an impressive range of vibrant colors through a controlled oxide layer formation, making it popular in the automotive, aerospace, and consumer electronics industries.
  3. Gloss: The level of glossiness on a part's surface is determined by the surface finishing method used. High-gloss finishes, achieved through techniques like polishing or clear coating, create a reflective surface that imparts a sense of luxury and sophistication. Low-gloss or matte finishes, achieved through techniques like sandblasting or certain powder coatings, provide a subdued appearance, ideal for industrial or modern designs.
  4. Metallic Finishes: Surface finishing techniques such as electroplating and PVD can impart metallic finishes to non-metallic parts. These techniques allow manufacturers to achieve the appearance of different metals, such as chrome, gold, or copper, without using the actual metal, offering cost-effective and versatile design possibilities.
  5. Transparency and Translucency: Surface finishing can also influence the transparency and translucency of materials like glass or plastics. Techniques like sandblasting, acid etching, or laser engraving can create a frosted or diffused surface, allowing light to transmit through while adding an element of privacy or aesthetics.
  6. Consistency: Surface finishing ensures a consistent and uniform appearance across the part, hiding imperfections or blemishes that might be present on the raw material. This results in a polished and refined look, essential for achieving a high-quality appearance in mass production.
  7. Decorative Effects: Many surface finishing techniques offer decorative effects that can elevate the appearance of a part. For instance, laser engraving or etching allows intricate patterns, logos, or designs to be added to the surface, enhancing branding or personalization. Specialized coatings, like pearlescent or metallic flakes, can create captivating visual effects.
  8. Aging Effects: Certain surface finishing techniques, such as patina finishes or distressing methods, can simulate the effects of aging, giving parts a vintage or antique appearance. This is often used to create a nostalgic or rustic charm in products, such as furniture, jewelry, or architectural elements.
  9. Branding and Identification: Surface finishing can also serve as a means of branding and identification. Techniques like laser marking, embossing, or stamping can add logos, serial numbers, or other identification marks to parts, providing a permanent and aesthetically pleasing way to establish product ownership and authenticity.

In summary, surface finishing plays a crucial role in shaping the appearance of a part. Manufacturers have a plethora of surface finishing techniques at their disposal, allowing them to tailor the visual aspects of the product to suit specific design objectives, industry requirements, and consumer preferences. By carefully selecting the most appropriate surface finishing method, manufacturers can create visually stunning and appealing products that leave a lasting impression on customers. The aesthetic impact of surface finishing extends beyond mere appearance, influencing the perceived value, brand identity, and overall user experience of the finished product.

Yes, surface finishing can significantly improve the performance of a part in various ways. By modifying the surface characteristics of a material, surface finishing techniques can enhance several functional aspects of a part, leading to improved performance. Here are some ways in which surface finishing can positively impact the performance of a part:

  1. Corrosion Resistance: Surface finishing techniques like plating, anodizing, and passivation create protective layers on the part's surface. These layers act as barriers against corrosive agents, such as moisture, chemicals, and environmental pollutants. By preventing direct contact between the material and corrosive elements, surface finishing reduces the risk of corrosion and material degradation, extending the part's lifespan and improving its performance in corrosive environments.
  2. Wear and Abrasion Resistance: Surface finishing methods like hard coating, nitriding, and case hardening can significantly improve a part's wear resistance. By creating a harder and more wear-resistant surface, surface finishing mitigates the effects of friction and abrasive forces, reducing the wear and tear that parts experience during regular use. This is particularly important in components subjected to repetitive motion, sliding, or contact with other surfaces.
  3. Fatigue Resistance: Certain surface finishing techniques, such as shot peening and stress relieving, can introduce beneficial compressive stresses on the part's surface. These residual stresses help to counteract tensile stresses that can lead to fatigue failure. By improving fatigue resistance, surface finishing can enhance the part's durability and reliability, especially in components subjected to cyclic loading.
  4. Impact Resistance: Surface finishing methods like powder coating and ceramic coatings can provide a protective and resilient layer that helps a part withstand impacts and resist damage. This is particularly important in applications where parts are exposed to rough handling or potential impacts, such as in automotive or industrial equipment.
  5. Friction and Lubricity: Some surface finishing techniques, such as electroless nickel plating and Teflon coating, can reduce friction and improve the lubricity of a part's surface. By reducing friction, surface finishing minimizes wear rates, heat generation, and the likelihood of component failure due to excessive friction.
  6. Electrical and Thermal Conductivity: Surface finishing can be used to modify the electrical and thermal conductivity of a material. For example, plating with highly conductive metals like copper or gold can enhance electrical conductivity, making the part more suitable for electrical contacts or connectors. Similarly, thermal spraying can improve heat dissipation capabilities, essential in components that generate heat.
  7. Adhesion and Bonding: Surface finishing methods like surface roughening or chemical treatments can improve adhesion properties, ensuring better bonding with adhesives, paints, or other coatings. Strong and durable bonds are crucial for components that undergo stress, vibration, or environmental exposure.
  8. Cleanliness and Biocompatibility: Certain surface finishing techniques, like electropolishing or passivation, can improve the cleanliness and biocompatibility of materials. These processes remove surface contaminants and impurities, making them suitable for applications in medical devices, food processing equipment, and other sensitive environments.

In summary, surface finishing can substantially enhance the performance of a part by improving corrosion resistance, wear resistance, fatigue resistance, impact resistance, and other critical functional aspects. The careful selection of the appropriate surface finishing technique can lead to more durable, reliable, and efficient products, ultimately enhancing customer satisfaction and competitiveness in the market.



Surface Finishing - chemical



Mechanical and chemical surface finishing are two broad categories of surface finishing techniques used to modify the properties and appearance of materials. They employ different principles and processes to achieve their respective effects. Let's explore the key differences between mechanical and chemical surface finishing:

  • Principle of Operation:

- Mechanical Surface Finishing: Mechanical surface finishing relies on physical abrasion, friction, or impact to modify the material's surface. Various tools and abrasive media, such as grinding wheels, sandpaper, brushes, and blasting particles, are used to remove material or alter the surface texture. The finishing action in mechanical methods is achieved through mechanical energy and force.

- Chemical Surface Finishing: Chemical surface finishing, on the other hand, involves chemical reactions to alter the material's surface. Chemical solutions or baths are applied to the part, and the interaction between the chemicals and the material's surface causes changes, such as etching, passivation, or deposition of new substances. The finishing action in chemical methods is achieved through chemical processes and reactions.

  • Material Removal:

- Mechanical Surface Finishing: Mechanical methods involve the physical removal of material from the surface. The abrasive media or tools wear away the surface layer, resulting in smoothing, polishing, or texturing. Material removal rates can be controlled by selecting appropriate abrasives and adjusting process parameters.

- Chemical Surface Finishing: Chemical methods do not typically remove material from the surface; instead, they alter the surface through chemical reactions. This may involve the dissolution of certain materials, the deposition of new compounds, or the creation of protective layers.

  • Surface Texture:

- Mechanical Surface Finishing: Mechanical methods are excellent for controlling surface texture. They can create a wide range of surface roughness, from highly polished and smooth surfaces to rough and textured finishes. The texture achieved is often visually evident and tactile, making mechanical methods ideal for aesthetic enhancements.

- Chemical Surface Finishing: Chemical methods can also influence surface texture, but the effects may be more subtle compared to mechanical methods. For example, chemical etching can create micro-scale surface features, while certain deposition techniques can produce thin films with controlled smoothness or roughness.

  • Application and Material Suitability:

- Mechanical Surface Finishing: Mechanical methods are suitable for a wide range of materials, including metals, plastics, ceramics, and composites. They are commonly used for deburring, polishing, sanding, and texturing, making them versatile in various industries.

- Chemical Surface Finishing: Chemical methods are often specialized for specific materials and applications. For instance, anodizing is commonly used on aluminum, while electroplating is employed to deposit specific metals on substrates. Each chemical finishing process has unique requirements and may not be applicable to all materials.

  • Surface Modification:

- Mechanical Surface Finishing: Mechanical methods primarily alter the surface by physically changing its topography. They are effective in removing imperfections, smoothing rough surfaces, and improving surface uniformity.

- Chemical Surface Finishing: Chemical methods can modify the surface in various ways, such as adding a protective layer, altering the material's chemical composition, improving corrosion resistance, or introducing specific functionalities.

In summary, the key difference between mechanical and chemical surface finishing lies in their operational principles and effects on the material's surface. Mechanical methods rely on physical abrasion and material removal, while chemical methods utilize chemical reactions to alter the surface. Both techniques have their unique strengths and applications, and the choice between them depends on the desired outcomes, material compatibility, and specific requirements of the surface finishing project.

Electroplating is a widely used surface finishing process that involves the deposition of a thin layer of metal onto a substrate material through an electrochemical reaction. This technique is employed to improve the appearance, corrosion resistance, and wear characteristics of the substrate material. Here is an overview of the electroplating process:

  1. Cleaning and Preparing the Substrate: Before electroplating, the substrate material must be thoroughly cleaned to remove any contaminants such as oils, grease, dirt, or oxides. Surface cleanliness is essential for ensuring proper adhesion of the plated metal and achieving a uniform plating layer. The cleaning process may involve several steps, including degreasing, alkaline cleaning, acid cleaning, or electrocleaning. Electrocleaning is an electrochemical process that uses a low-voltage current to remove surface impurities and create an activated surface for plating.
  2. Pre-Treatment and Surface Activation: Some substrates, especially those with passive surfaces or oxides, require pre-treatment to prepare the surface for plating. Surface activation is typically performed in an acidic solution or by using proprietary activators that help remove any oxide layers and create a chemically reactive surface. Activation ensures better adhesion and nucleation sites for the plated metal to deposit uniformly.
  3. Plating Bath Preparation: The heart of the electroplating process is the plating bath, also known as the electrolyte solution. The plating bath contains metal ions of the material to be deposited as well as various additives to control the plating process. The bath composition is crucial as it affects the quality, appearance, and properties of the plated layer. For example, a nickel-plating bath may contain nickel sulfate as the source of nickel ions, boric acid as a buffer, and proprietary additives to enhance plating brightness and leveling.
  4. Plating Process: Once the substrate is properly cleaned and prepared, it is immersed in the plating bath. The plating bath contains metal ions in a positively charged state (cations). When a direct current (DC) is applied to the plating bath, the positively charged metal cations are attracted to the negatively charged substrate (cathode). The metal cations gain electrons at the cathode and are reduced to neutral metal atoms, which adhere to the substrate's surface, forming a continuous and adherent metal layer
  5. Metal Deposition Mechanism: The metal deposition occurs through two primary mechanisms: nucleation and growth. During nucleation, metal atoms begin to form small clusters or nuclei on the substrate surface. As the plating process continues, these nuclei grow and coalesce, resulting in a continuous and uniform metal layer. The deposition rate and morphology are influenced by plating parameters such as current density, bath temperature, plating time, and bath composition.
  6. Control of Plating Parameters: Precise control of plating parameters is critical to achieving the desired plating results. Plating time determines the thickness of the deposited metal layer. Current density, defined as the current per unit area of the substrate, affects the plating rate and the characteristics of the plated layer. Bath temperature influences the deposition rate and the properties of the deposited metal. The pH and concentration of metal ions and additives in the plating bath are carefully monitored to achieve the desired plating quality and appearance.
  7. Post-Treatment: After the plating process is complete, the plated part undergoes post-treatment steps to ensure a high-quality finish. This may include rinsing the part in water or a neutralizing solution to remove any residual plating bath chemicals. Proper rinsing prevents contamination and ensures the stability of the plated layer. After rinsing, the part is dried to remove excess water. Depending on the application and desired appearance, additional surface finishing steps like polishing, buffing, or other coatings may be applied.

Electroplating is a versatile surface finishing technique used to improve the appearance, corrosion resistance, electrical conductivity, and wear characteristics of a wide range of materials. Its applications span numerous industries, including automotive, electronics, aerospace, jewelry, and household products, making it a fundamental process in modern manufacturing and engineering.

Surface finishing can have an impact on the tolerance of a part, although the extent of this effect depends on the specific surface finishing technique and the tolerances required for the part. Here are some ways in which surface finishing can affect the tolerance of a part:

  1. Material Removal and Dimensional Changes: Surface finishing techniques that involve material removal, such as grinding, sanding, or polishing, can cause dimensional changes in the part. Depending on the aggressiveness of the process and the initial dimensions, material removal can lead to slight reductions in the part's size or alter its overall shape. Manufacturers must carefully control the amount of material removed to meet the required tolerances.
  2. Coating Thickness and Dimensional Adjustments: Surface finishing techniques like plating, anodizing, or painting add a thin layer of material to the part's surface. The thickness of the coating must be accounted for in the overall dimensional tolerance of the part. In cases where tight tolerances are critical, the added thickness from the coating may require adjustments in the design or post-finishing machining operations.
  3. Post-Finishing Machining and Dimensional Precision: After surface finishing, some parts may require post-finishing machining operations to achieve specific tolerances. For example, parts that undergo plating may need subsequent machining to reach precise dimensions since plating can add material to the part's surface.
  4. Surface Roughness and Fitment: Surface finishing methods that produce roughness or texture, such as bead blasting, chemical etching, or abrasive finishing, can impact the fitment of mating parts. Variations in surface roughness can lead to gaps or interference fits between components, potentially affecting the overall tolerance of an assembly.
  5. Stress Relief and Dimensional Stability: Certain surface finishing techniques, like stress relieving or shot peening, can introduce compressive or tensile stresses on the part's surface. These stress changes may cause slight dimensional adjustments, which need to be considered during the design and tolerance specification. Additionally, some surface finishing processes, especially those involving heat or chemical treatments, can affect the part's dimensional stability over time.
  6. Masking and Overplating: In processes like electroplating, masking is commonly used to protect certain areas of the part from plating. Accurate masking is essential to prevent unintended plating in critical areas. Overplating can also occur when the plating thickness is not precisely controlled, potentially impacting dimensional tolerances.
  7. Wear and Tear Effects: Surface finishing methods that alter the surface's mechanical properties can affect the part's resistance to wear and tear. For instance, shot peening can induce compressive stresses that improve fatigue resistance, but excessive peening may cause dimensional changes due to plastic deformation. Manufacturers must carefully balance surface improvement with maintaining dimensional accuracy.

To ensure that surface finishing enhances rather than compromises the tolerance of a part, manufacturers need to consider several factors. This includes selecting appropriate finishing techniques that align with the desired tolerances, accurately measuring and monitoring tolerances throughout the finishing process, and conducting thorough inspections and testing to verify dimensional accuracy. Collaboration between design, engineering, and finishing teams is crucial to ensure that the finishing process supports the intended dimensional requirements of the final product. Proper planning and control of surface finishing processes will result in parts that meet the specified tolerances and perform optimally in their intended applications.

Surface finishing plays a crucial role in enhancing the corrosion resistance of materials, especially metals. By applying specific surface finishing techniques, manufacturers can create protective layers or modify the surface characteristics, effectively preventing or reducing the rate of corrosion. Here are several ways in which surface finishing contributes to corrosion resistance:

  1. Protective Coatings: Surface finishing methods like electroplating, anodizing, and chemical conversion coatings create protective layers on the material's surface. These coatings act as barriers between the underlying material and corrosive agents such as moisture, chemicals, or environmental pollutants. For example, electroplating with metals like zinc, nickel, or chromium forms a sacrificial layer that corrodes preferentially, protecting the substrate underneath.
  2. Passivation: Passivation is a surface finishing process that removes free iron and iron compounds from the surface of stainless steel or other corrosion-resistant alloys. This forms a passive oxide layer on the surface, which improves the metal's resistance to corrosion. Passivation enhances the material's natural self-healing ability, making it more robust in corrosive environments.
  3. Anodizing: Anodizing is commonly used on aluminum and its alloys to create a protective oxide layer on the surface. The anodized layer is hard, dense, and highly resistant to corrosion, providing excellent protection against various corrosive agents.
  4. Conversion Coatings: Chemical conversion coatings, such as chromate conversion coating on aluminum or zinc phosphating on steel, create thin and protective films on the surface. These coatings improve adhesion and paint bonding while also offering corrosion resistance
  5. Powder Coating: Powder coating is another surface finishing technique that provides a protective layer on metal surfaces. The powder coating process involves applying a dry, powdered polymer coating to the part's surface, which is then cured to form a durable and corrosion-resistant layer.
  6. Plating Thickness: In electroplating, the thickness of the plated layer can influence corrosion resistance. A thicker plated layer can provide more protection against corrosive agents. Manufacturers must balance the plating thickness with cost considerations and the desired level of protection.
  7. Surface Roughness: Surface finishing techniques that create smooth and uniform surfaces, such as polishing or honing, can contribute to better corrosion resistance. Rough or pitted surfaces can provide more sites for corrosion initiation and propagation.
  8. Stress Relief: Certain surface finishing methods, like shot peening, can introduce beneficial compressive stresses on the surface. These stresses can reduce the likelihood of stress corrosion cracking and improve the part's overall corrosion resistance.
  9. Environmental Resistance: Some surface finishing techniques, such as powder coating or certain paint systems, offer excellent resistance to environmental factors like UV radiation, humidity, and temperature fluctuations. These protective coatings help preserve the material's integrity, enhancing its overall corrosion resistance.

By selecting the appropriate surface finishing technique and carefully controlling the finishing process, manufacturers can tailor the corrosion resistance of materials to suit specific environmental conditions and applications. Surface finishing is a valuable tool in the fight against corrosion, helping to extend the lifespan of products and reduce maintenance costs, especially in industries like automotive, aerospace, marine, and construction.

Surface roughness is a critical factor that significantly influences the selection of an appropriate surface finishing technique. The desired level of surface roughness is determined by the specific requirements of the application, the intended functionality of the part, and aesthetic considerations. Different surface finishing techniques can achieve varying levels of surface roughness, and the choice of technique depends on the desired outcome. Here's how surface roughness affects the selection of a surface finishing technique:

  1. Smoothing Rough Surfaces: When a part has a rough or uneven surface, surface finishing techniques that can remove material or smooth out imperfections are suitable choices. Processes like grinding, lapping, and polishing are effective in reducing surface roughness and producing smooth, polished surfaces. These techniques are often used to improve the part's aesthetics, enhance functionality, and reduce friction in moving parts.
  2. Texture and Aesthetics: In some cases, surface roughness is intentionally introduced to create a specific texture or aesthetic effect. Techniques like sandblasting, shot peening, or chemical etching can be used to add texture and visual interest to the surface. These finishes are commonly employed in architectural applications, consumer products, and industrial design to achieve unique and visually appealing appearances.
  3. Functional Requirements: Certain applications demand specific surface roughness to meet functional requirements. For example, in sealing applications, a specific surface roughness may be required to ensure proper adhesion and sealing performance. In gasket mating surfaces, controlled roughness helps ensure a reliable and leak-free seal.
  4. Lubrication and Wear Resistance: Surface roughness can impact the part's lubrication characteristics and wear resistance. In some applications, a controlled level of roughness may be desirable to retain lubricants on the surface, reducing friction and wear. Surface finishing techniques like honing or micro-texturing can be used to achieve the desired level of surface roughness for optimal lubrication and wear properties.
  5. Adhesion and Bonding: Surface roughness influences the adhesion of coatings, paints, or adhesives to the substrate. To ensure strong and durable bonding, the surface may need to be roughened or textured. Techniques like abrasive blasting or plasma treatment can prepare the surface for improved bonding.
  6. Optical Properties: In applications where optical properties are critical, such as lenses or mirrors, surface roughness must be tightly controlled. Optics generally require smooth, polished surfaces with minimal roughness to achieve the desired clarity and performance. Finishing techniques like diamond turning or precision polishing are commonly used in the optics industry.
  7. Cost Considerations: Surface finishing techniques vary in complexity and cost. Finishing methods that require more intricate steps or specialized equipment may be more expensive. When selecting a surface finishing technique, cost considerations play a significant role, especially when aiming to achieve a certain level of surface roughness within budget constraints.

In summary, surface roughness is a crucial parameter that guides the selection of an appropriate surface finishing technique. Manufacturers must consider the functional requirements, aesthetic goals, and cost constraints of the project to determine the most suitable finishing method. By carefully matching the desired surface roughness with the capabilities of the chosen technique, manufacturers can achieve the desired performance, appearance, and functionality of the finished part.
