Injection Molding Technology
Plastic injection molding technology is one of the most common ways to produce plastic products. This process includes the following steps:
- Material preparation. Raw materials for plastic products are granules or powder that are premixed with necessary additives such as dyes, stabilizers, fillers, and others. Common polymers such as epoxy and phenolic are examples of thermosetting plastics, while nylon, polyethylene and polystyrene are thermoplastic.
- Mold Preparation. This step consists of designing and manufacturing the mold that will be used to create the product of the desired shape and size. The mold for casting can be made of various materials such as steel, aluminum or special alloys.
- Molding process. Plastic material is heated to the desired temperature by an extruder or screw roller and loaded into a mold under pressure. The hot plastic then fills the mold cavity and hardens to form a product of the desired shape and size. The time it takes for the material to cure depends on the thickness of the product and the raw materials used.
- Cooling and removal of the product. When the plastic product is cured, it must be cooled to prevent deformation. Cooling can be done using cooling channels in the mold or air cooling. The product is then released from the mold using a gouge or special devices.
- Subsequent processing and quality control. The finished product may be subjected to additional processing such as trimming, drilling, coloring or coating. At the end of the process, they undergo quality control to ensure that they meet the specified parameters and are free of defects.
- Packaging and shipping. The products are packed for subsequent shipment to the customer or storage in a warehouse.
The injection molding method involves a complex technical process of injecting molten plastic into a prepared mold. The liquid mixture then fills the volume evenly and crystallizes to form the desired shape. Thanks to this method, it is possible to achieve high quality in products from a wide variety of fields. To implement the technology, complex and expensive equipment is used, which ensures high productivity.
TDL specializes in high-volume plastic injection moulding production, leveraging advanced machinery for optimal results. Given the high energy costs in Europe, manufacturing in China presents a more cost-effective solution. TDL produces superior quality plastic components for a diverse range of industries and offers a comprehensive suite of post-production services.
Catering to industry-specific needs, TDL provides ISO8 cleanroom production for the medical field. Committed to stringent quality control, TDL fabricates moulds from stainless steel in accordance with SPI-SPE standards. These robust moulds, compatible with various materials, are utilized to manufacture an extensive array of medical devices.
We produce top-tier injection moulded plastic components for a wide variety of plastic products. These include consumer electronics, automotive interior trim, precision medical devices, plastic parts with high surface requirements, beauty device components, massager parts, watch plastics, electronics plastics, and more.
Following the plastic injection moulding production, TDL assists clients with post-processing services. These include surface finishing, ultrasonic welding, hot melt welding, trimming, screwing, laser engraving, product assembly, and more, thereby facilitating comprehensive OEM manufacturing for plastic products.
Plastic Injection process
Our plastic injection molding advantages
Experience the TDL Advantage: Our injection molding process combines state-of-the-art technology, stringent quality control, and industry-specific adaptability, offering a superior alternative to standard offerings in the market.
Other injection molding factories
Our injection molding service
Choose us for injection molding and get up to 100% mould cost refund!
Diverse Industry Solutions
Our expert engineering team offers tailored solutions for a wide range of industries, utilizing innovative technology and design strategies to provide optimal results for our clients.
High Speed CNC Machines
Double-Head EDM Machines
CNC machining Workshop
Plastic Injection Molding Room
Mirror EDM Machining
Mould Spotting Machine
Plastic Injection Team
Meet Our Expert Team: The Driving Force Behind TDL Mold’s Innovative Solutions.
See how do we control the quality of mould manufacturing
Plastic injection molding is a manufacturing process used to produce a wide range of plastic parts and products. It is one of the most commonly used methods for mass-producing plastic components due to its efficiency, versatility, and cost-effectiveness. The process involves injecting molten plastic material into a mold cavity, allowing it to cool and solidify, resulting in the desired shape and form.
Here's an overview of the plastic injection molding process:
- Mold Creation:The first step is to design and create a mold, which is a hollow cavity that defines the shape and dimensions of the final plastic part. The mold is usually made from steel or aluminum and consists of two halves: the "core" and the "cavity." These halves fit together precisely to form the complete mold.

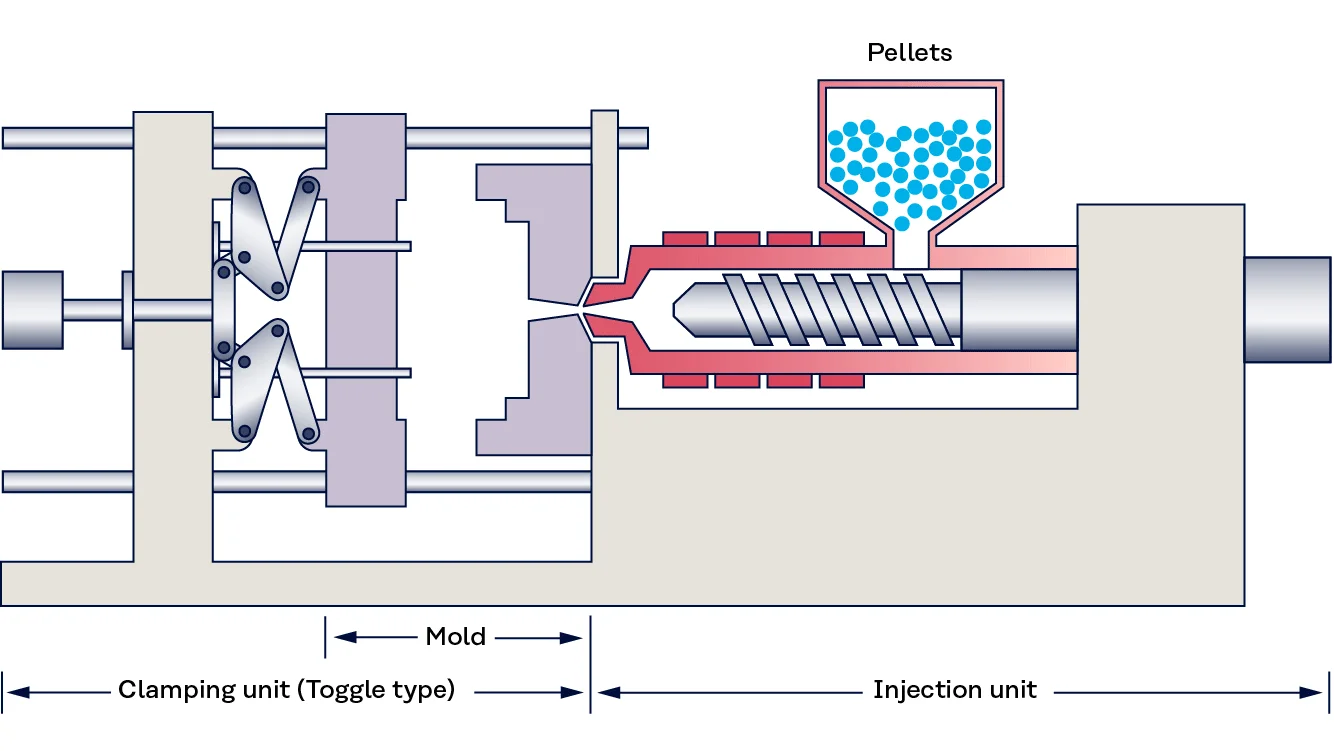

- Clamping:The mold is mounted onto a specialized injection molding machine, which has a clamping unit responsible for holding the mold in place during the injection process.
- Injection:Plastic pellets or granules are fed into a heated barrel within the injection molding machine. The pellets are gradually heated and melted to form a viscous liquid (molten plastic). Once the required amount of plastic is melted, the injection process begins.
- Injection into the Mold:The molten plastic is injected into the mold cavity under high pressure through a nozzle. The pressure helps to fill the mold completely and evenly, replicating the mold's shape precisely.
- Cooling and Solidification:After the molten plastic is injected, the mold is allowed to cool, causing the plastic to solidify and take the shape of the mold cavity.
- Ejection:Once the plastic has cooled and solidified, the mold halves are separated, and the newly formed plastic part is ejected from the mold using ejection pins or mechanisms.
- Repeat Process:The entire cycle (clamping, injection, cooling, ejection) is repeated for the production of multiple parts. The process is highly automated, enabling the production of large quantities of identical parts efficiently and rapidly.
Plastic injection molding is widely used in various industries to manufacture a vast array of products, ranging from simple and small components to complex and large items, such as automotive parts, consumer electronics, medical devices, household items, and more. The ability to produce high-quality, consistent parts with tight tolerances makes plastic injection molding a preferred choice for many manufacturers.
The plastic injection molding process works through several distinct steps, each contributing to the efficient and precise production of plastic parts. Here's a detailed explanation of how the process works:
- Mold Creation:The process begins with the creation of a mold, which is designed to match the desired shape of the plastic part. The mold is usually made from high-quality steel or aluminum and is created using computer-aided design (CAD) software and computer-aided manufacturing (CAM) techniques.
- Clamping:The mold is mounted onto the injection molding machine. The machine consists of a clamping unit, which holds the mold tightly closed during the injection and cooling processes. The clamping force is essential to ensure that the mold remains securely shut and the molten plastic does not leak.
- Injection:Plastic pellets or granules, typically in a hopper, are fed into a heated barrel of the injection molding machine. Inside the barrel, a screw-like plunger or reciprocating screw rotates and moves forward, melting the plastic due to the barrel's heat and pressure. The molten plastic accumulates at the front of the screw.
- Injection into the Mold:When the desired amount of molten plastic has accumulated, the injection phase begins. The forward movement of the screw or plunger forces the molten plastic through a nozzle and into the mold's cavity under high pressure. The mold's cavity is precisely shaped to match the final product design.
- Cooling and Solidification:Once the molten plastic fills the mold cavity, it is left to cool and solidify. Cooling is a critical stage, as it determines the final form and structure of the plastic part. The cooling time can vary depending on the material being used and the part's thickness.
- Ejection:After the plastic has sufficiently cooled and solidified, the mold opens using the clamping unit, and the newly formed plastic part is ejected from the mold. Ejection pins or air blasts help push the part out of the mold safely.
- Repeat Process:The entire cycle (clamping, injection, cooling, ejection) is then repeated for the production of the next plastic part. The process is highly automated, and modern injection molding machines can repeat this cycle hundreds or even thousands of times per hour.
It's worth noting that injection molding machines are equipped with sophisticated controls and sensors to monitor and adjust various parameters, such as temperature, pressure, and cooling time, ensuring the production of consistent, high-quality parts. The versatility and efficiency of the plastic injection molding process have made it an integral part of various industries, ranging from automotive and electronics to healthcare and consumer goods.
Plastic injection molding is a versatile manufacturing process that can produce a wide range of products, both simple and complex. Here are some common types of products that can be made using plastic injection molding:
- Consumer Electronics:
Plastic injection molding is widely used to produce various components of consumer electronic devices, such as phone cases, laptop housings, keyboard keys, camera parts, and charger connectors.
- Automotive Parts:
Many interior and exterior automotive components are made through injection molding, including dashboard panels, door handles, bumpers, interior trims, and ventilation system parts.
- Medical Devices:
Plastic injection molding is crucial in the medical industry for manufacturing items like syringes, medical tubing, connectors, instrument casings, and disposable medical supplies.
- Packaging Products:
Plastic injection molding is commonly used for producing a variety of packaging products like caps, closures, bottles, containers, and food packaging.
- Household Items:
Numerous everyday household items are manufactured using injection molding, including kitchen utensils, toys, storage bins, hangers, and garden tools.
- Appliance Components:
Plastic injection molding is used to create parts for appliances such as washing machine drums, refrigerator components, and vacuum cleaner casings.
- Industrial Components:
Many industrial products, such as gears, valves, electrical switches, and connectors, are made through injection molding due to its ability to produce high volumes with precision.
- Personal Care Products:
Items like toothbrushes, razors, cosmetic containers, and shampoo bottles are commonly produced using plastic injection molding.
- Construction Materials:
Certain construction materials like PVC pipes and fittings are manufactured through injection molding.
- Sports Equipment:
Various sports equipment parts, such as bicycle components, ski bindings, and protective gear, are made using plastic injection molding.
- Office Supplies:
Office products like pen casings, stapler components, and printer parts are often produced through this process.
- Toys and Games:
Many plastic toys and game pieces are manufactured using injection molding due to its ability to produce intricate shapes and details.
The versatility, efficiency, and cost-effectiveness of plastic injection molding make it a preferred choice for a wide range of industries. It allows for the mass production of high-quality, consistent plastic parts with intricate designs and precise dimensions, meeting the demands of modern manufacturing and consumer markets.
Plastic injection molding supports a variety of materials, each with its unique properties and characteristics. The choice of material depends on the specific requirements of the product being manufactured, such as strength, flexibility, heat resistance, chemical resistance, transparency, and more. Some common materials used in plastic injection molding include:
- Polyethylene (PE):
Polyethylene is a versatile and widely used thermoplastic with excellent chemical resistance, electrical properties, and low moisture absorption. It comes in various forms, including high-density polyethylene (HDPE) and low-density polyethylene (LDPE).
- Polypropylene (PP):
Polypropylene is another versatile thermoplastic with good mechanical properties, chemical resistance, and high heat resistance. It is commonly used for products like packaging containers, automotive parts, and household items.
- Polyvinyl Chloride (PVC):
PVC is a durable thermoplastic known for its excellent weather resistance, making it suitable for outdoor applications like pipes, fittings, and vinyl siding.
- Acrylonitrile Butadiene Styrene (ABS):
ABS is a tough and impact-resistant thermoplastic commonly used in automotive parts, electronic enclosures, and toys.
- Polycarbonate (PC):
Polycarbonate is a transparent thermoplastic with high impact resistance, making it suitable for products like safety glasses, CDs, and electronic components.
- Polyethylene Terephthalate (PET):
PET is a strong and lightweight thermoplastic commonly used for beverage bottles, food containers, and synthetic fibers.
- Polyurethane (PU):
Polyurethane is a versatile material known for its flexibility and durability. It is used in applications such as foam seating, automotive parts, and shoe soles
- Nylon (Polyamide):
Nylon is a strong and abrasion-resistant thermoplastic often used in applications requiring high mechanical strength, such as gears and bearings.
- Polystyrene (PS):
Polystyrene is a rigid and transparent thermoplastic used in items like food packaging, disposable cutlery, and CD cases.
- Polyoxymethylene (POM) / Acetal:
POM is a highly crystalline and durable thermoplastic used in applications like gears, bearings, and automotive components.
- Polyphenylene Sulfide (PPS):
PPS is a high-performance thermoplastic known for its chemical resistance and high-temperature capabilities, suitable for automotive and electronic components.
- Polyether Ether Ketone (PEEK):
PEEK is an advanced engineering thermoplastic with excellent mechanical and thermal properties, used in aerospace, medical, and industrial applications.
These are just a few examples of the materials commonly used in plastic injection molding. There are many other specialty and engineering-grade plastics available, each tailored to specific applications and performance requirements. The selection of the appropriate material is crucial in ensuring that the final product meets its intended functionality and performance standards.
Plastic injection molding offers numerous advantages, making it one of the most widely used and preferred manufacturing processes for plastic parts and products. Here are some of the key advantages of plastic injection molding:
- High Efficiency and Production Speed:Plastic injection molding is a highly efficient process, capable of producing large quantities of identical parts quickly and consistently. The automated nature of the process allows for rapid cycle times, reducing production lead times.
- Cost-Effective for Mass Production:Once the initial mold is created, the cost per unit decreases significantly for larger production runs. This makes plastic injection molding a cost-effective solution for high-volume production, helping to lower overall manufacturing costs.
- Versatility in Design:The process allows for intricate and complex part designs to be created with precision. It can accommodate a wide range of part sizes and shapes, giving designers the flexibility to bring innovative and creative ideas to life.
- Consistent and High-Quality Parts:Injection molding produces parts with high dimensional accuracy and repeatability. The use of precise molds and automated controls ensures that each part is consistently manufactured to the same exact specifications.
- Wide Selection of Materials:Plastic injection molding supports a vast array of materials, including commodity plastics, engineering-grade plastics, and specialty plastics, each with unique properties to suit specific application requirements.
- Minimal Material Waste:The process is designed to minimize material waste, as any excess plastic can often be reused for future production runs. This helps reduce material costs and makes it an environmentally-friendly manufacturing option.
- Reduced Post-Production Finishing:Many parts produced through injection molding require little to no additional finishing, as the molds can produce finished surfaces with smooth textures and accurate details.
- Automation and Labor Savings:Injection molding machines are highly automated, requiring minimal human intervention during the production process. This automation helps reduce labor costs and increases overall production efficiency.
- Design for Manufacturability (DFM):Injection molding encourages design simplicity and allows for the integration of multiple features into a single part, which can streamline assembly processes and reduce the number of components needed.
- Scalability and Adaptability:The process is easily scalable, accommodating both low-volume and high-volume production needs. It also allows for quick adjustments in design or material changes when required.
- Wide Range of Applications:Plastic injection molding is used in various industries, such as automotive, electronics, medical, consumer goods, aerospace, and more, highlighting its versatility and applicability.
Overall, plastic injection molding offers manufacturers a reliable and efficient method to produce high-quality plastic parts and products, contributing to cost-effectiveness, design freedom, and the ability to meet demanding production requirements.
While plastic injection molding offers numerous advantages, it also has some disadvantages that manufacturers should consider when deciding on the most suitable production method. Here are some of the key disadvantages of plastic injection molding:
- High Initial Tooling Cost:Creating the mold (tooling) for injection molding can be expensive, especially for complex designs or large parts. The cost of mold fabrication and setup can make the process less viable for small production runs or prototypes.
- Lead Time for Tooling:Designing and manufacturing molds can take several weeks or even months, leading to longer lead times before the production process can begin. This can be a disadvantage for projects with tight timelines.
- Limited Material Selection for Some Designs:While plastic injection molding supports a wide range of materials, specific design requirements (e.g., extreme temperature resistance, chemical compatibility) may necessitate the use of specialized and more expensive materials.
- Part Design Limitations:Certain part designs may be challenging or even impossible to mold using conventional injection molding techniques. Sharp corners, thin walls, or complex undercuts can complicate the process or result in defects.
- High Part Cost for Low-Volume Production:For small production runs, the cost of tooling and setup may make each part prohibitively expensive, making other manufacturing methods more cost-effective for low-volume production.
- Material Waste and Environmental Concerns:Although efforts are made to minimize material waste, some scrap plastic is generated during the production process. This can be a concern for environmental sustainability, especially if the material is not easily recyclable.
- Design Changes Require New Tooling:If design modifications are necessary after the mold has been created, new tooling may be required, adding significant costs and lead time.
- Cycle Time Limitations:The cooling time during the injection molding process is a crucial factor that can affect cycle times. Thick parts or materials with slow cooling rates may result in longer cycle times, impacting production speed.
- Risk of Defects:Injection molding is a precise process, and any variations in material, temperature, or pressure can lead to defects in the final product, requiring additional quality control measures.
- Energy Consumption:Injection molding machines can consume a significant amount of energy, which may result in higher production costs and environmental impact.
Despite these disadvantages, plastic injection molding remains a highly popular and practical manufacturing method for a wide range of applications. Manufacturers should carefully consider their specific project requirements and weigh the advantages and disadvantages of injection molding against other available processes to make informed decisions.
Reducing the cost of plastic injection molding requires careful consideration of various factors throughout the manufacturing process. Here are some strategies to help you lower the overall cost of injection molding:
- Optimize Part Design:
Work closely with experienced designers and engineers to optimize the part design for injection molding. Simplifying the design, reducing unnecessary features, and minimizing wall thickness can help lower material usage and reduce production time.
- Consolidate Parts:
Where possible, consolidate multiple parts into a single component. This reduces the number of molds needed and streamlines the assembly process, resulting in cost savings.
- Choose the Right Material:
Selecting an appropriate material that meets the required performance and appearance standards can prevent the need for costly material changes or secondary operations.
- Avoid Undercuts and Complex Features:
Undercuts and complex features in the part design can increase tooling and production costs. Design the part with features that can be easily ejected from the mold without the need for additional mechanisms.
- Use Standard Mold Bases:
Utilize standard mold bases and components whenever possible, as custom tooling can significantly increase the cost.
- Reduce Mold Complexity:
Minimize the number of cavities in the mold if high production volumes are not required. A simpler mold design can reduce tooling costs.
- Consider Aluminum Molds:
For smaller production runs or prototypes, aluminum molds can be a more cost-effective alternative to steel molds. Although they have a shorter lifespan, they can be manufactured more quickly and at a lower cost.
- Implement Automation:
Automating certain aspects of the production process can reduce labor costs and improve production efficiency.
- Optimize Cooling and Cycle Time:
Efficient cooling channels in the mold can shorten cycle times, increasing production output and reducing energy costs.
- Negotiate with Suppliers:
Work closely with suppliers and manufacturers to negotiate favorable terms, especially when it comes to material costs and production volume discounts.
- Consider Local Manufacturing:
Manufacturing products closer to the end-users can reduce shipping costs and lead times, making local production a cost-effective option.
- Perform Cost Analysis:
Regularly analyze the cost of each part and the overall production process. Identify areas where cost-saving measures can be implemented.
- Continuous Improvement:
Implement a culture of continuous improvement to identify and address inefficiencies and cost drivers in the manufacturing process.
The quality of a plastic injection molded part is influenced by a combination of factors throughout the entire manufacturing process. These factors can affect the part's dimensional accuracy, surface finish, strength, and overall consistency. Here are some key factors that impact the quality of a plastic injection molded part:
- Part Design:The initial part design plays a crucial role in determining the final part's quality. Properly designed parts with appropriate wall thickness, uniform sections, and well-rounded corners facilitate smooth material flow during injection and help prevent defects.
- Material Selection:The choice of plastic material can significantly impact the part's mechanical properties, chemical resistance, and appearance. The material must be selected based on the part's specific requirements and the intended application.
- Mold Design and Construction:The mold design is essential for producing high-quality parts. Factors such as gate placement, cooling channel design, and venting influence the material flow, cooling rate, and release of air or gas from the mold cavity.
- Injection Molding Machine Settings:Properly calibrating the injection molding machine is critical to achieving consistent and repeatable results. Factors such as injection speed, temperature, pressure, and holding time must be optimized based on the material and part design.
- Injection Molding Process Conditions:Maintaining consistent process conditions, such as melt temperature, mold temperature, and injection pressure, helps ensure consistent part quality throughout the production run.
- Cooling and Solidification:Proper cooling of the molded part is essential to prevent warping and ensure dimensional stability. Balanced cooling channels in the mold help achieve uniform cooling and reduce cycle times.
- Mold Maintenance:Regular maintenance and cleaning of the mold are essential to prevent buildup of contaminants or residue that could affect part quality and lead to defects.
- Post-Molding Operations:Any secondary operations, such as trimming, drilling, or assembly, should be carefully performed to avoid damage or deformation of the part.
- Quality Control and Inspection:Implementing a comprehensive quality control process is essential to detect and address any defects or variations in the parts. Inspection techniques such as dimensional measurements, visual inspection, and material testing are commonly used.
- Operator Skill and Training:The expertise of the machine operators and technicians can significantly impact the quality of the molded parts. Proper training and skill development are essential to ensure consistent production and troubleshooting capabilities.
- Environmental Conditions:Factors such as temperature and humidity can affect the material properties and the injection molding process. Controlling the environment can help maintain consistent results.
Addressing these factors and maintaining strict quality control procedures throughout the entire injection molding process will help ensure the production of high-quality plastic parts that meet the desired specifications and performance standards.
By employing these cost-saving strategies, you can make plastic injection molding a more cost-effective and efficient manufacturing method for your products. It's essential to strike a balance between cost reduction and maintaining the required quality and functionality of the final product. Work closely with experienced manufacturers and engineers to ensure the best results.
Plastic injection molding and blow molding are two distinct manufacturing processes used to produce plastic parts and products, each with its unique characteristics and applications. The main difference between the two processes lies in how the plastic material is shaped and formed. Here's an overview of each process:
- Plastic Injection Molding:
In plastic injection molding, the process involves injecting molten plastic material into a closed mold cavity to create the desired shape of the part. The mold is typically made of steel or aluminum and consists of two halves: the "core" and the "cavity." The molten plastic is injected into the mold at high pressure, filling the cavity and taking on its shape. Once the plastic cools and solidifies, the mold opens, and the finished part is ejected.
Key characteristics of plastic injection molding:
- Suitable for producing complex and detailed parts with tight tolerances.
- Ideal for high-volume production runs due to its efficiency and repeatability.
- Can handle a wide range of plastic materials, including engineering-grade and high-performance plastics.
- Commonly used for producing a variety of products, such as automotive components, consumer electronics, medical devices, and household items.
- Blow Molding:
Blow molding is a process used to create hollow plastic parts, such as bottles, containers, and tanks. It involves a two-step process: extrusion and blowing. In the extrusion step, a tube-like plastic parison (a hollow tube of molten plastic) is created by extruding it through a die. The parison is then placed inside a mold, and air is blown into the parison, expanding it to the shape of the mold cavity. The plastic material conforms to the mold's shape and solidifies to create the final part.
Key characteristics of blow molding:
- Primarily used for producing hollow parts with thin walls, such as bottles and containers.
- Suitable for large-scale production of identical parts with minimal material waste.
- Limited to producing hollow shapes, making it less versatile for complex parts compared to injection molding.
- Commonly used in industries such as packaging, beverage, and automotive for items like bottles, containers, and automotive ducts.
In summary, plastic injection molding is best suited for producing solid, complex, and detailed parts with high accuracy and repeatability, making it ideal for a wide range of applications. On the other hand, blow molding is specialized for creating hollow, thin-walled parts, particularly containers and bottles, in large quantities. Each process has its advantages and limitations, and the choice between the two depends on the specific requirements of the product being manufactured.
Insert molding is a specialized plastic injection molding process that involves inserting a pre-formed component (the "insert") into the mold before injecting molten plastic around it to form a single integrated part. This technique allows plastic and other materials, such as metal or another plastic component, to be combined into a finished product in one molding operation. Insert molding offers several advantages, including improved part strength, reduced assembly steps, and increased design flexibility.
Here's a step-by-step overview of the insert molding process:
- Insert Placement:First, the pre-formed insert is placed into the mold cavity or onto a core pin. The insert can be made of various materials, such as metal screws, pins, electrical contacts, or other plastic components.
- Mold Clamping:The mold, which consists of two halves (core and cavity), is closed and clamped tightly to secure the insert in the desired position.
- Injection:Molten plastic material is injected into the mold under high pressure. The plastic flows around and over the insert, encapsulating it completely.
- Cooling and Solidification:The molten plastic cools and solidifies around the insert, fusing the insert and the plastic material into a single, cohesive part.
- Mold Opening and Ejection: Once the plastic has solidified, the mold is opened, and the completed insert-molded part is ejected from the mold.
Insert molding offers several benefits:
- Enhanced Part Strength:The insert provides additional structural support, improving the part's strength and rigidity compared to conventional overmolding or assembly methods.
- Streamlined Assembly:By combining multiple components into a single molded part, insert molding reduces the need for separate assembly steps, saving time and labor costs.
- Design Flexibility:Insert molding allows for creative and compact designs, enabling engineers to integrate various functionalities into a single part.
- Cost Savings:Despite the initial setup for insert placement, insert molding can lead to cost savings in the long run due to simplified assembly processes and reduced material waste.
Insert molding is widely used in various industries, including automotive, electronics, medical devices, and consumer goods. Common applications include adding metal contacts to electrical connectors, incorporating threaded inserts for fastening purposes, and integrating reinforcing elements into plastic parts for improved structural integrity. The ability to combine different materials and functionalities within a single molded part makes insert molding a valuable technique for enhancing the performance and functionality of plastic components.
