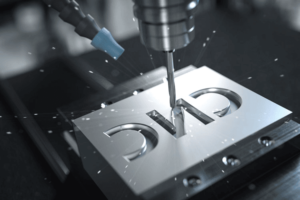

CNC Machining Part



CNC machining, short for Computer Numerical Control machining, is a state-of-the-art manufacturing process that has revolutionized the world of precision engineering. It combines the power of computer control, automation, and advanced cutting tools to fabricate intricate and customized parts with unrivaled accuracy and efficiency.

In traditional machining methods, skilled operators manually guide machine tools to shape raw materials into desired components. This manual approach requires extensive training, skill, and painstaking attention to detail. However, CNC machining takes the human element to the next level by automating the entire process through computer programming.

The process begins with a 3D computer-aided design (CAD) model, where engineers and designers meticulously define the geometry and specifications of the intended part. This virtual blueprint serves as the foundation for the CNC machining journey.

Next, the CAD model is imported into computer-aided manufacturing (CAM) software, where highly sophisticated algorithms generate the CNC code. This code contains a series of precise instructions that act as a digital roadmap for the CNC machine. It guides the machine's cutting tool with utmost precision, dictating every movement, depth, and feed rate necessary to carve the material into the desired shape.

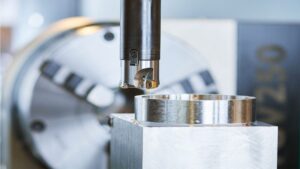

To prepare for machining, the operator secures the raw material onto the CNC machine's worktable or fixture. Depending on the complexity of the part, various cutting tools may be utilized, ranging from end mills and drills to lathe tools and special cutters. The CNC machine's spindle, a powerful motor, rotates the cutting tool at high speeds, making precise, controlled cuts according to the programmed code.

A crucial aspect of CNC machining is its exceptional repeatability and positional accuracy. The machine's linear encoders and feedback systems ensure that it consistently returns to the exact same position, even after multiple repetitions, allowing for precise replication of parts.

CNC machining offers unparalleled flexibility, as it can handle a diverse range of materials, including metals like aluminum, steel, and titanium, as well as plastics, composites, and wood. Its ability to fabricate intricate shapes and contours with fine details makes it a go-to method for various industries, from aerospace and automotive to medical and consumer electronics.

One of the significant advantages of CNC machining is its automation and efficiency. Once the CNC program is set up and loaded into the machine, the machining process can run autonomously, significantly reducing labor requirements and human errors. This leads to higher productivity, shorter production times, and lower costs in the long run.

To ensure consistent quality, CNC machines can be equipped with sensors to monitor machining parameters, making real-time adjustments to maintain precision throughout the process. Additionally, post-machining inspections, performed using coordinate measuring machines (CMM) or other inspection tools, verify that the final part meets the required tolerances and specifications.

CNC machining's impact on manufacturing has been transformative, allowing for rapid prototyping, small-batch production, and mass manufacturing of complex parts with supreme accuracy. As technology continues to evolve, CNC machining remains at the forefront of innovation, further pushing the boundaries of what's possible in precision engineering and reshaping industries worldwide.

CNC machining works through a combination of computer programming, automated machinery, and cutting tools to manufacture precise parts and components.

Here's a step-by-step explanation of how the process works:

  1. Design: The process begins with the creation of a 3D computer-aided design (CAD) model. This digital representation defines the geometry and specifications of the desired part.
  2. CAM Programming: The CAD model is imported into computer-aided manufacturing (CAM) software. In the CAM software, the engineer or programmer generates the toolpaths and creates the CNC code (G-codes and M-codes) that will guide the CNC machine throughout the manufacturing process. These codes are essentially a set of instructions that tell the machine how and where to move the cutting tool to shape the raw material.
  3. Setup: With the CNC code ready, the operator sets up the CNC machine for the machining process. This involves securing the raw material (e.g., metal block, plastic sheet) to the machine's worktable or fixture, and attaching the appropriate cutting tools to the machine's spindle.
  4. Loading the CNC Code: The CNC code generated in the CAM software is loaded into the CNC machine's computer or controller. This is usually done via a USB drive or network connection.
  5. Calibration and Reference Point Setting: Before machining begins, the machine must be calibrated and set to a reference point, so it knows the starting position for all machining operations.
  6. Machining: Once everything is set up, the CNC machine begins the machining process. The computer controller interprets the CNC code and precisely moves the cutting tool along the specified toolpaths and depths to remove material from the raw workpiece. The cutting tool's movements are typically in three axes: X (horizontal), Y (vertical), and Z (depth).
  7. Tool Changes (if required): For complex parts or multi-tool operations, the CNC machine may automatically change the cutting tool during the process. This enables different cutting operations (e.g., drilling, milling, turning) to be performed in a single setup.
  8. Coolant/Lubrication: During machining, the cutting tool generates heat and friction. To prevent overheating and extend tool life, a coolant or lubricant is often applied to the cutting area.
  9. Quality Control: Throughout the machining process, the CNC machine may be equipped with sensors to monitor the machining parameters and ensure the quality of the part being produced.
  10. Finishing: After the rough machining is complete, the part may go through additional finishing operations, such as polishing, deburring, or surface treatments, to meet the required specifications.
  11. Completion: Once the machining process is finished, the final part is removed from the machine. It should now closely match the design specifications defined in the CAD model.

CNC machining is a versatile and efficient manufacturing process that is widely used across various industries due to its ability to produce high-precision, complex parts with consistency and speed.

density for web



CNC machining can work with a wide range of materials, each having its own characteristics and applications. Some of the common materials used in CNC machining include:

  • Metals:

   - Aluminum: Lightweight, corrosion-resistant, and commonly used in aerospace, automotive, and electronics industries.

   - Steel: Strong and versatile, used in various industries, including automotive, construction, and machinery.

   - Stainless Steel: Resistant to corrosion, heat, and chemicals, widely used in food processing, medical, and marine applications.

   - Brass: Has good electrical and thermal conductivity, used in plumbing fittings, musical instruments, and decorative applications.

   - Copper: Known for its excellent electrical conductivity, used in electrical components and conductive parts.

   - Titanium: Lightweight but strong, used in aerospace, medical implants, and high-performance applications.

  • Plastics:

   - ABS (Acrylonitrile Butadiene Styrene): A versatile thermoplastic used in various consumer products, automotive parts, and prototypes.

   - PVC (Polyvinyl Chloride): A rigid plastic used in construction, pipes, and electrical insulation.

   - POM (Polyoxymethylene or Delrin): Low-friction and wear-resistant, used in gears, bearings, and automotive components.

   - Nylon: Strong and flexible, commonly used in textiles, automotive, and consumer goods.

   - Polycarbonate: Transparent and impact-resistant, used in eyewear, safety shields, and electronic components.

  • Wood:

   - Hardwoods (e.g., Maple, Oak, Walnut): Durable and aesthetically appealing, used in furniture, art, and decorative items.

   - Softwoods (e.g., Pine, Cedar): Easier to machine and used in construction, crafting, and carpentry.

  • Composites:

   - Carbon Fiber: Lightweight and strong, used in aerospace, automotive, and sports equipment.

   - Fiberglass: Made of glass fibers embedded in a resin matrix, used in boats, automotive parts, and construction.

  • Other Materials:

   - Ceramics: Used in high-temperature and electrical insulating applications.

   - Foam: Used in packaging, prototyping, and model making.

It's important to note that the choice of material depends on the specific requirements of the part or component being manufactured, such as mechanical properties, thermal resistance, electrical conductivity, cost, and aesthetics. CNC machines are versatile enough to handle these diverse materials, making them suitable for a wide range of industries and applications.

CNC machining offers several advantages over traditional manual machining methods, making it a widely preferred manufacturing process in various industries. Some of the key advantages of CNC machining include:

  1. Precision and Accuracy: CNC machines are capable of producing parts with high precision and tight tolerances. The computer-controlled movements eliminate human errors, resulting in consistently accurate and repeatable products.
  2. Increased Efficiency: CNC machining allows for continuous and automated operation, reducing idle time between machining tasks. This leads to higher productivity and faster production rates compared to traditional manual machining.
  3. Versatility: CNC machines can work with a wide variety of materials, including metals, plastics, composites, and wood. They can also create complex shapes and geometries, making them suitable for diverse applications across different industries.
  4. Flexibility and Customization: The CNC programming can be easily modified to accommodate design changes or create custom parts, making it ideal for rapid prototyping and small-batch production.
  5. Reduced Labor Requirements: Once the CNC machine is set up and the program is loaded, it can run autonomously with minimal operator intervention. This reduces the need for a large workforce and lowers labor costs.
  6. Reproducibility: CNC machining ensures that each part produced is an exact replica of the original design. This level of consistency is essential for industries requiring standardized components.
  7. Complex Machining Capabilities: CNC machines can perform multi-axis movements simultaneously, enabling the fabrication of intricate and complex designs that would be difficult or impossible with manual machining methods.
  8. Reduced Waste: CNC machining optimizes material usage, minimizing waste and contributing to cost savings.
  9. Continuous Operation: CNC machines can work around the clock without interruption, maximizing production capacity and meeting tight deadlines.
  10. Integration with CAD/CAM Software: CNC machining seamlessly integrates with Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) software, streamlining the design-to-production process and reducing lead times.
  11. Quality Control: CNC machines often come with sensors and quality control features, allowing for real-time monitoring and inspection of parts during the machining process. This helps maintain consistent quality standards.
  12. Safety: CNC machining reduces the risk of accidents and injuries compared to manual machining, as operators have less direct contact with cutting tools and workpieces.

Overall, CNC machining offers a multitude of advantages, making it a crucial technology for modern manufacturing across various industries. Its ability to produce high-quality, precise, and complex parts with efficiency and repeatability has revolutionized the way products are made today.Overall, CNC machining offers a compelling set of advantages that include improved precision, efficiency, flexibility, and the ability to work with a wide range of materials. These factors make CNC machining a vital technology for modern manufacturing, powering industries such as aerospace, automotive, electronics, medical devices, and many others.

There are several types of CNC machines, each designed to perform specific machining operations on different types of materials. The main types of CNC machines include:

  • CNC Milling Machines:

cnc milling machine 500x500



These machines use rotary cutting tools to remove material from a workpiece, creating complex shapes and features. CNC milling machines can perform various milling operations, such as face milling, end milling, drilling, and tapping. They are widely used in industries like automotive, aerospace, and mold-making.

  • CNC Turning Machines (CNC Lathes):

Kent CNC KLR 200 CNC Horizontal Turning Center 600x572



CNC turning machines are used to produce cylindrical parts by rotating the workpiece while cutting tools move along it. They can create symmetrical parts like shafts, bolts, and bushings. CNC lathes are commonly used in manufacturing industries for mass production of components.

  • CNC Drilling Machines:

33663 14567219



These machines are specialized for drilling holes in various materials. They can perform precise and repetitive drilling operations, making them ideal for applications that require a large number of holes.

  • CNC Plasma Cutters:

4510 cut front



CNC plasma cutters use a high-velocity jet of ionized gas (plasma) to cut through electrically conductive materials like steel, stainless steel, and aluminum. They are commonly used in metal fabrication for cutting shapes and parts.

  • CNC Waterjet Cutters:

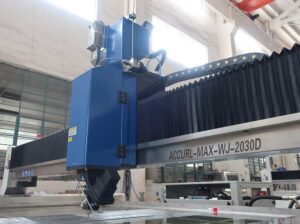

water jet cutting machine 2000x3000mm for price



 CNC waterjet cutters use a high-pressure stream of water mixed with abrasive particles to cut through a wide range of materials, including metals, stone, glass, and composites. They are versatile and offer excellent precision for intricate designs.

  • CNC Laser Cutters:

.jpg



CNC laser cutters use a focused laser beam to cut or engrave materials such as wood, acrylic, plastics, and metals. They are widely used in the manufacturing and signage industries.

  • CNC Router Machines:

cnc wood router 500x500



 CNC routers are used primarily for cutting and shaping wood, plastic, and foam materials. They are commonly used in woodworking, sign-making, and prototyping.

  • CNC Wire EDM (Electrical Discharge Machining) Machines:

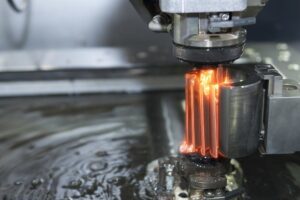

wire EDM min



Wire EDM machines use a thin, electrically charged wire to cut complex shapes in hard materials like metal. They are often used in tool and die making and precision component manufacturing.

  • CNC Grinding Machines:

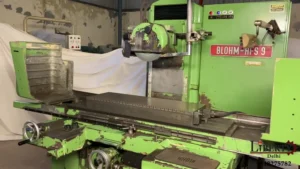

blohm hfs 9 surface grinding machine 1000x1000 (1)



CNC grinding machines use abrasive wheels to remove material and achieve high precision and surface finish on various materials. They are commonly used for finishing operations and creating smooth surfaces.

  • CNC Swiss-Type Machines:

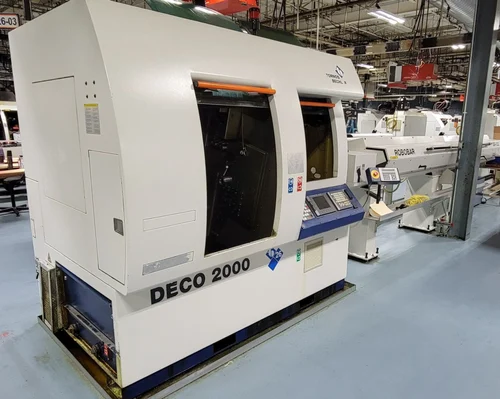

product jpeg 500x500



 Swiss-type machines are specialized CNC lathes with additional capabilities for precise and intricate turning operations. They are commonly used in the production of small, high-precision parts in industries like watchmaking and medical devices.

Each type of CNC machine offers specific advantages and is chosen based on the required machining operations and the materials being worked on. CNC technology continues to advance, leading to the development of even more specialized and versatile machines for different industrial applications.

CNC machining is known for its high level of accuracy and precision, making it a critical technology in modern manufacturing. The accuracy of CNC machining refers to how closely the actual dimensions and features of the final part match the intended design specifications. Several factors contribute to the overall accuracy of CNC machining:

  1. Machine Repeatability: Repeatability is the ability of the CNC machine to consistently return to the same position when a specific command is executed. CNC machines use linear encoders and feedback systems to track their movements, ensuring that they can precisely repeat the same toolpath multiple times. Modern CNC machines can achieve repeatability within micrometers (μm), ensuring consistent results for each part produced.
  2. Positional Accuracy: Positional accuracy measures how closely the machine can position the cutting tool or workpiece in relation to the intended location defined in the CNC program. It is influenced by factors such as the rigidity of the machine structure, the accuracy of linear guides, and the calibration of the machine. CNC machines can achieve positional accuracies in the range of a few micrometers, depending on the machine's design and capabilities.
  3. Cutting Tool and Toolholder Quality: The precision and condition of the cutting tools used in CNC machining significantly impact accuracy. High-quality, sharp tools with proper geometries result in cleaner cuts and better surface finishes. Additionally, the toolholder's stability is crucial in minimizing tool deflection, which can affect the accuracy of the machined features.
  4. Toolpath Optimization: The CNC program generated through CAM (Computer-Aided Manufacturing) software determines the tool's movement and cutting strategy. Optimized toolpaths that avoid sharp turns or sudden changes in direction can improve accuracy and reduce tool wear.
  5. Material Properties and Workpiece Fixturing: The choice of material and how it is fixtured on the CNC machine's worktable can influence machining accuracy. Adequate workpiece support and stability are essential to prevent vibrations and ensure consistent cutting forces throughout the operation.
  6. Machine Calibration and Maintenance: Regular calibration and maintenance of the CNC machine are crucial for sustaining accuracy over time. Routine checks and adjustments ensure that the machine remains within specified tolerances and performs at its best.
  7. Thermal Stability: Temperature fluctuations can cause materials and machine components to expand or contract, affecting machining accuracy. Some CNC machines incorporate features like temperature compensation to maintain accuracy under varying environmental conditions.
  8. Tolerances and Quality Assurance: The accuracy of CNC machining is also determined by the specified tolerances on the part's features. Tighter tolerances may require specialized tooling or additional quality control measures during and after the machining process.

It's important to note that achieving high accuracy in CNC machining is a collaborative effort between skilled operators, programmers, and well-maintained machines. Additionally, factors like material properties, tool wear, and cutting parameters can affect accuracy during the machining process. By implementing best practices, using high-quality equipment and tools, and adhering to meticulous quality control procedures, CNC machining can consistently produce parts with exceptional accuracy, meeting the demanding requirements of various industries, including aerospace, automotive, medical, and electronics.

CNC milling and CNC turning are two primary types of CNC machining processes, each designed for specific operations and types of parts. Here are the key differences between CNC milling and CNC turning:



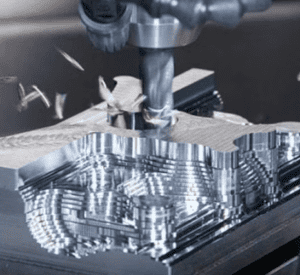

CNC Milling:

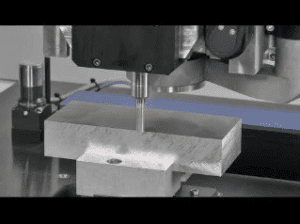

Screenshot 25

  • Operation: In CNC milling, rotary cutting tools (end mills) are used to remove material from a workpiece by making rotational movements. The cutting tool moves along multiple axes (typically X, Y, and Z) to create various shapes and features on the workpiece.
  • Workpiece Shape: CNC milling is suitable for machining complex 3D shapes and parts with features such as pockets, slots, holes, and contours. It can handle parts with irregular geometries and multiple surface angles.
  • Types of Machines: CNC milling machines are typically 3-axis, 4-axis, or 5-axis machines. The number of axes determines the machine's capabilities for simultaneous movement in different directions.
  • Examples of Parts: CNC milling is commonly used to produce components like engine parts, molds, prototypes, and complex mechanical parts.



CNC Turning:

  • Operation: In CNC turning, the workpiece is rotated rapidly while a single-point cutting tool moves parallel to the axis of rotation. The cutting tool shapes the workpiece into a cylindrical shape by removing material along its length.
  • Workpiece Shape: CNC turning is ideal for creating cylindrical or axisymmetric parts such as shafts, pins, bolts, and bushings. It is best suited for parts with a symmetrical axis of rotation.
  • Types of Machines: CNC turning machines are typically 2-axis or multi-axis machines. Multi-axis lathes allow for more complex geometries and features.
  • Examples of Parts: CNC turning is commonly used to produce components like shafts, threaded parts, bushings, and cylindrical features.

In summary, the main difference between CNC milling and CNC turning lies in the type of operations and the shapes of the parts they can produce. CNC milling is used for machining complex 3D shapes, while CNC turning is more suitable for creating cylindrical or axisymmetric parts. Both processes play critical roles in modern manufacturing, offering high precision and efficiency for a wide range of applications across various industries.

The cost-effectiveness of CNC machining compared to other manufacturing processes depends on several factors, including the type of part being produced, the required quantities, the complexity of the design, and the material used. In many cases, CNC machining offers significant cost advantages over traditional manufacturing methods and other modern processes. Here are some points to consider:

  • Setup Costs: CNC machining is generally more cost-effective for producing small to medium quantities of parts. While the initial setup costs for programming and tooling can be higher compared to manual methods, these costs are spread over the entire production run, making CNC machining more economical for larger quantities.
  • Labor Costs: CNC machining reduces the need for manual labor, especially during the cutting process, as the machines operate autonomously. This lowers labor costs and minimizes the risk of human errors.
  • Efficiency and Throughput: CNC machines can work continuously and at higher speeds, leading to faster production times and increased throughput. This efficiency can result in reduced production costs per part.
  • Material Utilization: CNC machining optimizes material usage, reducing waste and improving material efficiency. This can be particularly advantageous when working with expensive materials or producing parts with intricate designs.
  • Complexity of Designs: CNC machining is well-suited for producing complex and intricate parts with high precision. Other manufacturing processes may struggle to achieve the same level of accuracy and detail without incurring additional costs.
  • Tooling and Machining Flexibility: CNC machines offer the flexibility to change tooling quickly and easily, making it more cost-effective for small-batch production or when design modifications are needed.
  • Quality and Consistency: CNC machining ensures consistent quality in each part produced, reducing the likelihood of defects and rework, which can be costly in other manufacturing methods.
  • Range of Materials: CNC machining can work with a wide range of materials, including metals, plastics, composites, and wood. This versatility can lead to cost savings when dealing with different types of parts.

However, it's important to note that there are instances where other manufacturing processes might be more cost-effective or better suited for specific applications. For example, for extremely high production volumes, specialized processes like injection molding or die casting might offer better cost efficiency.

Ultimately, the cost-effectiveness of CNC machining depends on the specific requirements of the project, the desired level of precision, and the overall production volume. To determine the most cost-effective manufacturing method, companies often conduct a thorough analysis, considering factors like production volume, material costs, labor, setup costs, and the complexity of the part.

Designing for CNC machining requires careful consideration of various factors to ensure the successful and cost-effective manufacturing of parts. The design process plays a critical role in optimizing the efficiency and accuracy of CNC machining. Here are the key factors that should be taken into account during the design process for CNC machining:

  1. Material Selection: The choice of material is fundamental as it directly affects the machining process and the final product's performance. Consider the mechanical properties required for the part, such as strength, hardness, thermal conductivity, and corrosion resistance. Different materials may require adjustments to cutting speeds and feeds during machining.
  2. Part Geometry and Complexity: CNC machining can handle complex geometries, but overly intricate designs may lead to longer machining times and higher costs. Simplify the part geometry where possible to reduce machining complexity. Avoid sharp internal corners or deep pockets that may be challenging to machine accurately.
  3. Tolerances and Surface Finishes: Define the required tolerances and surface finishes for critical features. Tighter tolerances and finer surface finishes may require specialized tooling and machining processes, impacting cost and lead time. Non-critical features can have looser tolerances to improve manufacturability and reduce costs.
  4. Machining Direction: Consider the orientation of features and their accessibility during machining. Optimize the part orientation to minimize tool changes and the number of setups required. Avoid features that require extensive undercuts or overcuts, as they may be difficult to machine.
  5. Tooling and Tool Access: Choose appropriate cutting tools for the job and ensure they can access all required features. Avoid deep pockets or cavities that might require long or specialized tools. Optimize tool selection and toolpath strategies to minimize tool changes and tool retraction, reducing machining time.
  6. Minimum Wall Thickness: Avoid designing walls that are too thin, as this can lead to machining difficulties and compromised part strength. Select an appropriate wall thickness to ensure structural integrity while minimizing material usage.
  7. Fillets and Radii: Incorporate fillets or radii in internal corners to reduce stress concentrations and improve tool life. Sharp corners may be difficult to machine precisely and can lead to premature tool wear.
  8. Part Nesting and Material Usage: Optimize the arrangement of parts on the material stock to minimize material waste and reduce production costs. Consider using stock materials available in standard sizes to minimize material costs.
  9. Part Consolidation: If possible, consolidate multiple parts into a single piece to reduce assembly requirements and simplify the overall design.
  10. Assembly Considerations: Design parts with proper mating features for ease of assembly and ensure proper fit and function. Consider any required post-machining operations, such as threading or assembly features, when designing the part.
  11. Material Removal Considerations: Be mindful of the amount of material to be removed during machining. Minimize unnecessary material removal to reduce machining time and material waste.
  12. Prototyping and Iteration: Consider rapid prototyping techniques to validate the design before committing to full-scale production. Iteratively refine the design based on testing and feedback to optimize manufacturability and functionality.

Collaboration between design engineers and CNC programmers is essential to ensure that the design is manufacturable and meets the required specifications. By considering these factors during the design process, you can optimize the part for CNC machining, resulting in efficient production and high-quality components. Early involvement of CNC machining experts can lead to cost savings and faster time-to-market while ensuring that the final product meets the desired functionality and performance requirements.
